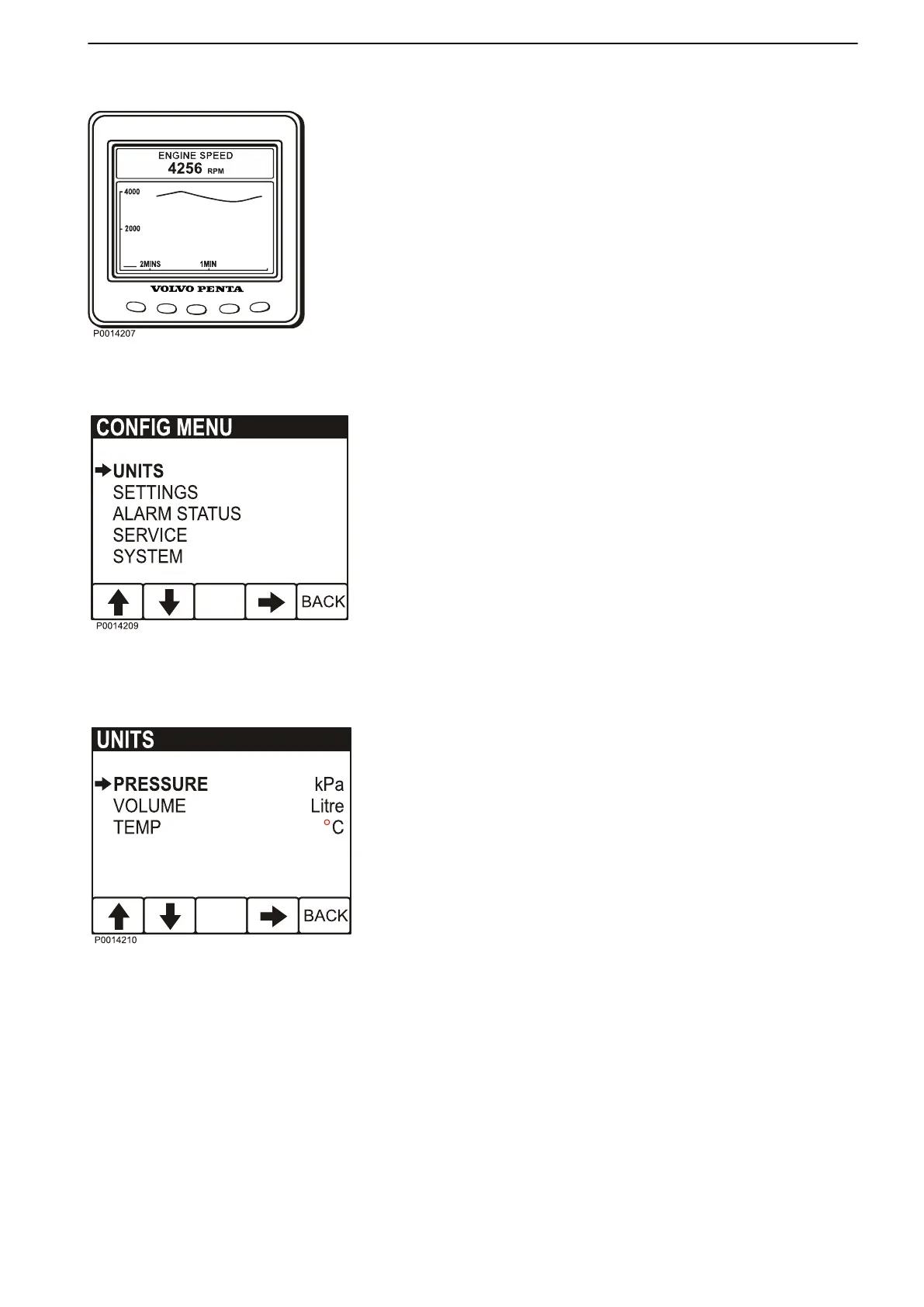

Graph
The information is shown as graphs. Press button 4
repeatedly to choose what information will be shown.
The time interval is set in the Configuration menu.
If the connection is broken there will be a straight line
in the display.
Configuration menu
Press button 5 for three seconds to enter the Config-
uration menu. Navigate with the up and down arrows,
select with the right arrow.
Units
-
PRESSURE; kPa, PSI
-
VOLUME; LITRE, GAL, Imperial GAL.
Fuel rate is adjusted according to volume unit, L/H,
GAL/H, IGAL/H.
-
TEMPERATURE; °C, °F
Instruments and Controls
7748681 12-2011 19
