EQUIPMENT
smo2011-003-014_b

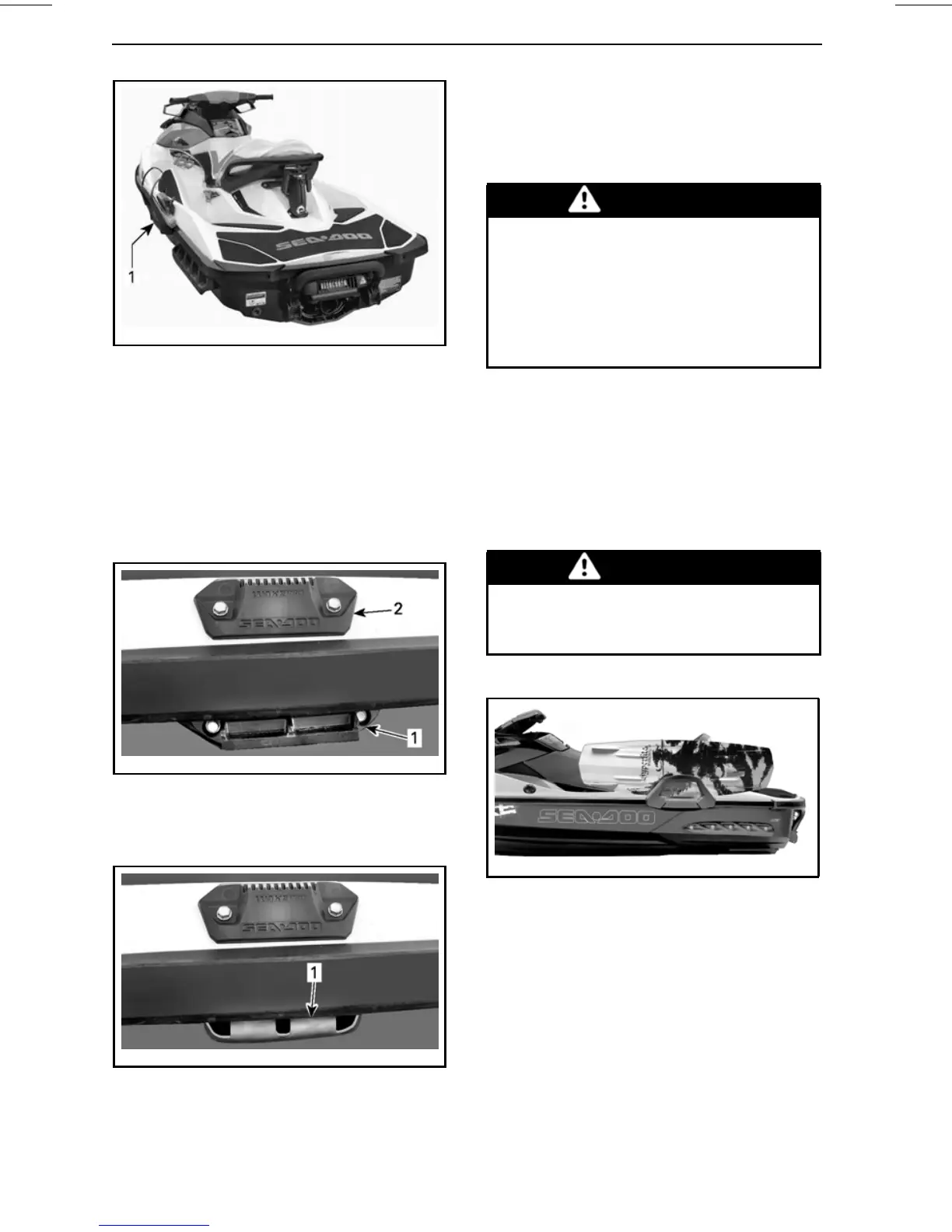

1. Wakeboard rack
NOTE: The wakeboard rack can be in-
stalledon the LH side of the watercraft.
To install:
1. Insert the hooks on the lower por-
tion of the rack into the lower retain-
ing bracket located on the hull under
the LH side bumper.
smo2010-002-007_a
RETAINING BRACKETS FOR WAKEBOARD
RACK
1. Lower retaining bracket
2. Upper retaining bracket
smo2010-002-009_a
1. Hooked portion of rack in lower bracket
2. Rotate the rack upwards and push
the top of the rack inboard until the
handle locks into the top retaining
bracket.
WARNING
If rack is not properly secured on
the watercraft, it could become
loose and detach unexpectedly,
creating a risk of injury to people
nearby. Periodically ensure the
rack is properly locked on its sup-
port.
3. When installing a wakeboard on
the rack, position wakeboard fin(s)
outward with the heel of the boots
facing down near freeboard of the
PWC.
4. Secure wakeboard using bungee
cords.
WARNING
To avoid possible injuries and cuts
from the wakeboards fin(s), al-
ways place FIN(S) OUTWARDS.
smo2010-002-008
TYPICAL - WAKEBOARD INSTALLED WITH
FINS OUTWARD
5. After installation, pull and push
wakeboard to ensure it is tightly
secured to rack.
70
