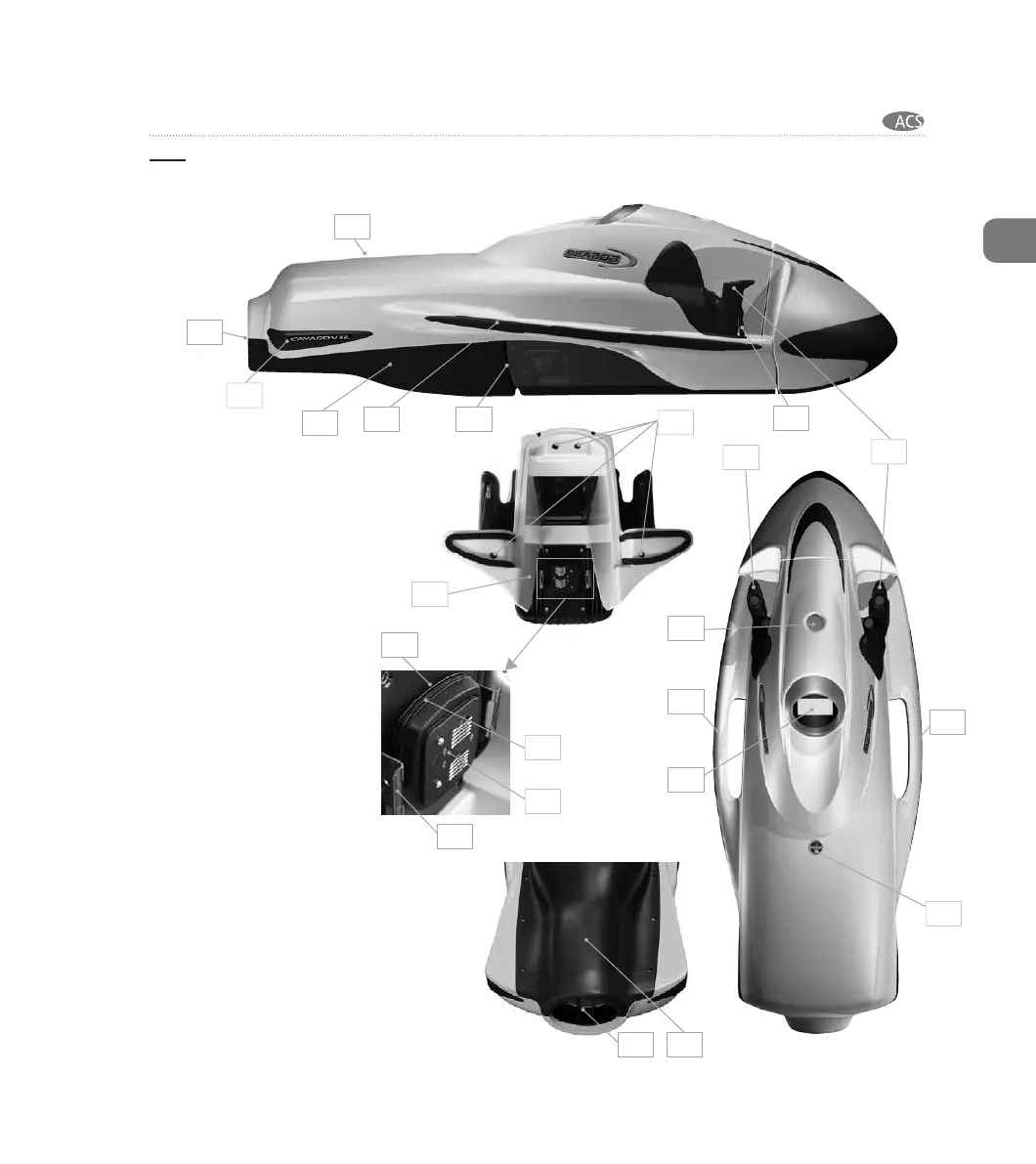

4.2 SEABOB ACS housing (SEABOB CAYAGO VX2 and SEABOB CAYAGO F7 models)
Note: On the SEABOB CAYAGO VX2 and SEABOB CAYAGO F7 models with Accumulator Change System
(ACS) the accumulator box ACS can be detached from the SEABOB housing and changed.
1. SEABOB housing
2. Jet channel (water intake)
3. Jet channel (water discharge)
4. Jet channel cover
5. Right Controlgrip
6. Left Controlgrip
7. Powergrip
8. Display
9. Depth sensor
10. Carrying handles
11. High-current connector plate
(connecting plate)
12. Quad ring (sealing ring)
13. Spacer O-ring (sealing ring)
14. Locking hooks
15. Accumulator shaft
16. Attachment holes
(for accumulator box)
17. Side bumper
18. Rear bumper
19. Securing device
for pilot belt system
(SEABOB CAYAGO F7 model)
