5.4.10 Charge display
After the charger is connected to the accumulator box
and then to a power source, the system / accumulator
box first performs a system check and then automatically
switches to Charge mode. After 15 seconds, the charge
display appears. It is not possible to switch on the motor.
1. The charge state is shown by individual bars in the
accumulator symbol on the right-hand side of the dis
-
play. The number of bars indicates the charge state.
When all bars are shown in the accumulator symbol,
the accumulator box is fully charged.
2. The estimated remaining charging time (in hrs:min) is
displayed under the accumulator symbol.
3. Tap the green button to select partial charging of the
accumulator box for air transport / storage. A partially
filled charge symbol will appear in the upper left-
hand part of the display with an arrow to indicate
partial charging.
4. Tap the red button to select full charging of the accu
-
mulator box for operation. A completely filled charge
symbol will appear in the upper left-hand part of the
display with an arrow to indicate full charging.
5. If programmed to partial charging for air transport /
storage, an aircraft symbol will appear when the cor
-
rect partial charge state has been reached. A remain
-
ing charging time of "0:00" is displayed.
6. If programmed to full charging, all bars are displayed
in the accumulator symbol and the remaining charg
-
ing time is shown as "0:00", the accumulator box is
fully charged and the SEABOB is ready for operation.
7. If, when programmed to partial charging, the charger
is disconnected from the device when the aircraft
symbol is displayed, the system switches to Off mode
after 1 minute (system check) and switches off for
transport, in particular air transport, or storage.
8. If the charger is disconnected from the device when
programmed to full charging and the accumulator
box is fully charged, the system switches off to Sleep
mode and is ready for operation.

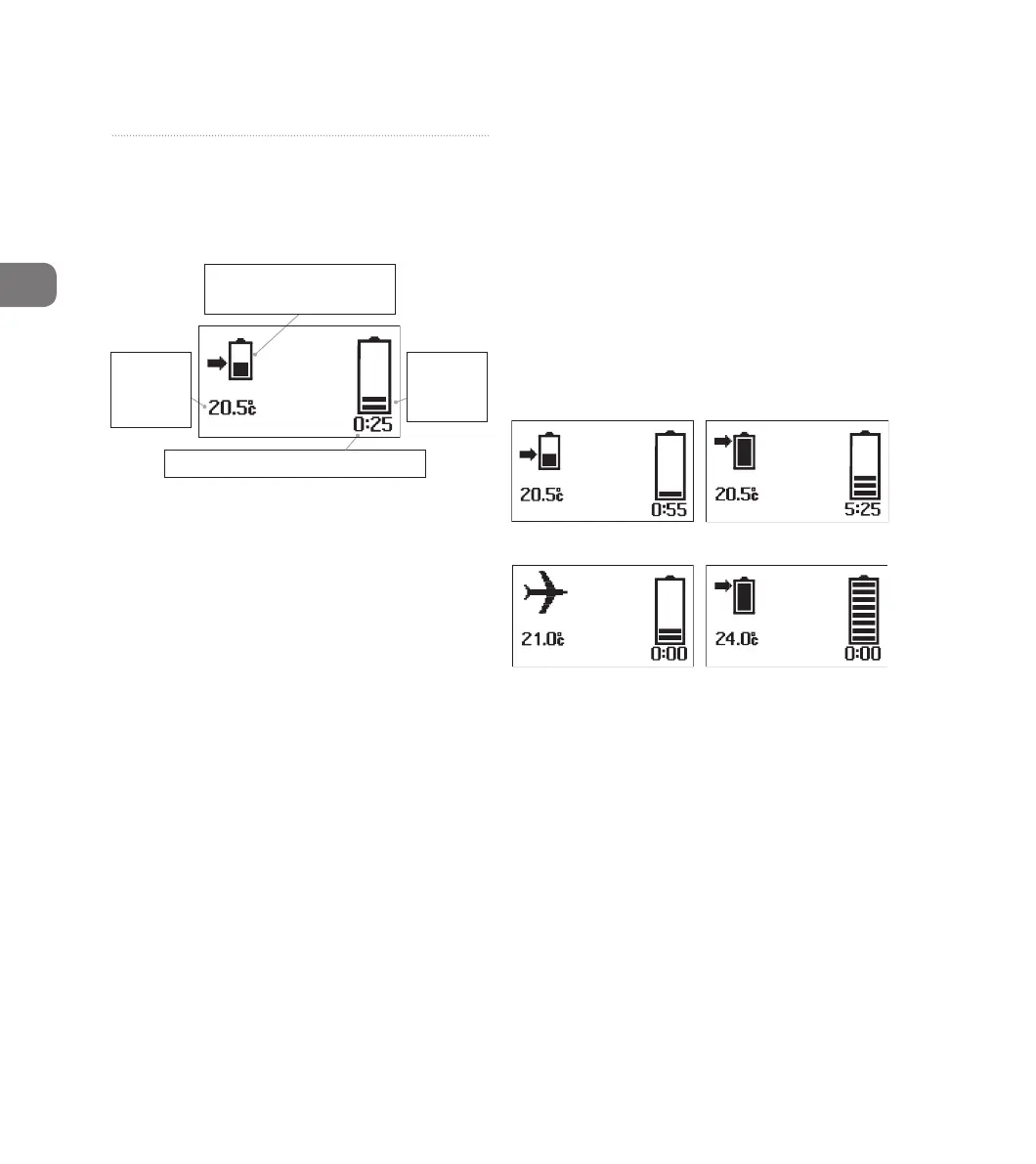

Starting full charging for
operation
Partial charging for air trans-
port / storage complete
Full charging for operation
complete
Starting partial charging for air
transport / storage
Accumula-
tor tem-
perature
Charge symbol
(selected charging process)
Remaining charging time (in hrs:min)
Accumula-
tor charge
state
