4K 4x1 Seamless Switcher with Multi-view
Website: www.seada.co.uk 5 / 33 E-mail: sales@seada.co.uk
3.2 Rear Panel

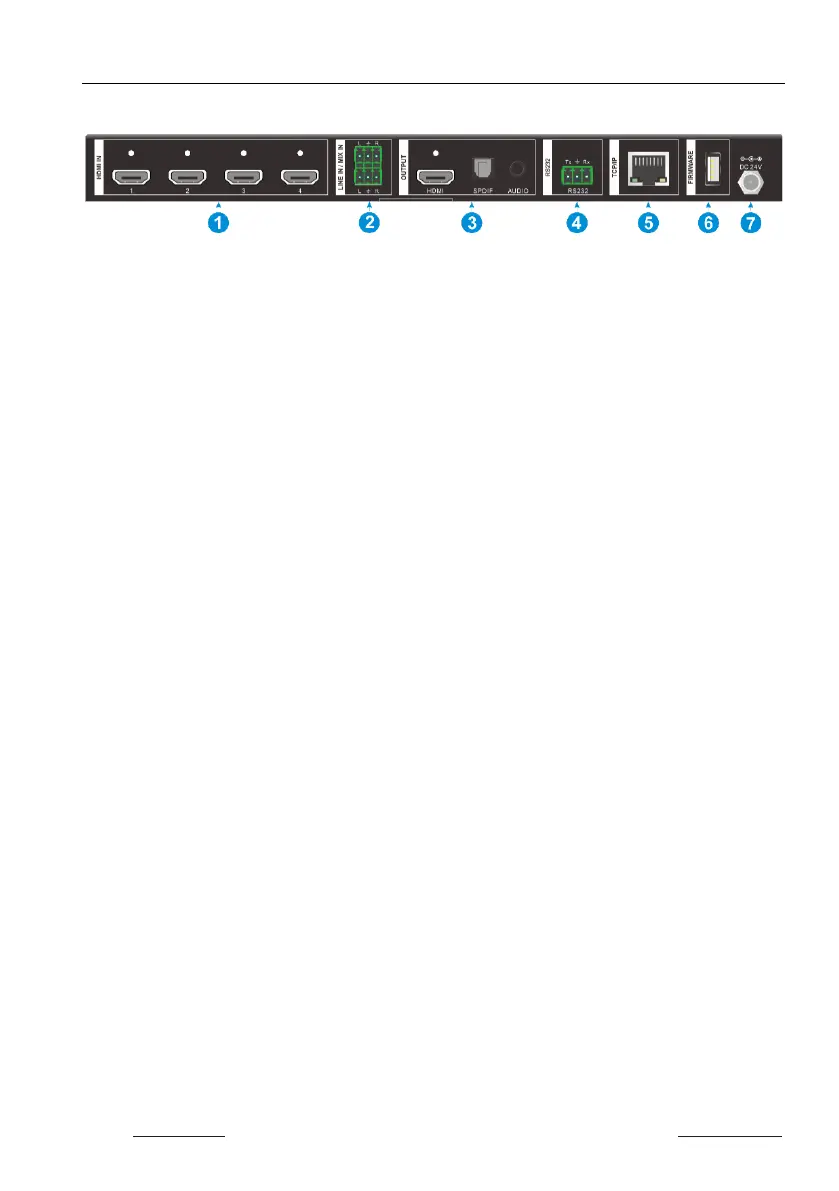

HDMI IN: Four type-A female HDMI input ports to connect HDMI source devices.
LINE IN: 3-pin terminal block to connect audio source device like mobile phone or
computer to embed in HDMI audio sources.
MIX IN: 3-pin terminal block to connect audio source device like mobile phone or
computer to mix HDMI audio sources.
HDMI OUTPUT: Type-A female HDMI output port to connect display device.
SPDIF OUTPUT: Toslink for audio de-embedding from HDMI output.
AUDIO OUTPUT: 3.5mm mini jack for audio de-embedding from HDMI output.
RS232: 3-pin terminal block to connect the RS232 control device (e.g. PC) or a
third-party device to be controlled by RS232 commands.
TCP/IP: RJ45 port to connect the control device (e.g. PC) to control the switcher
by GUI.
FIREWARE: Type-A USB port for firmware upgrade.
DC 24V: DC connector for power adapter connection.
