number of Driver Motors found, matches the total number of
selections, check the wiring connections at the Driver Motor and
the Circuit Board.
Q: Motor cycles but product will not drop.
A: Check to see if the product is jammed in the Product Chute.
Check to see if the vendor is level.
Check product for damage, and make sure it is the proper size.
Install Product pushers on the ends of the Helix Coils to assist in vending.
Q: In the event of a power outage, will I have to reprogram my vendor?
A: No. Your selection prices are safely stored.
Q: The vendor will not allow me to change prices.
A: Reset the Circuit Board by pressing the Red Service Mode button while
unplugging the vendor. You may need assistance. You will need to
reenter all prices. Note: This will not reset "Cash Hist" or
“Sales Hist".
Section 2
MONEY MECHANISMS
COIN V
ALIDATOR
Note: The manufacturer's Coin Validator manual is packed with your vendor. The following is intended as an addendum to the
manufacturer's manual.
The Coin Validator receives and returns change to your customers. The Coin Validator is installed at the factory, and will accept
quarters, dimes, and nickels. The Coin Validator can be set to accept the new golden dollar. Quarters that are not needed to main-
tain inventory in the Quarter Tube, and all other coins are diverted to the Coin Tray.
It is recommended that you initially load the tubes at least half full when setting up your vendor and that you not allow your ven-
dor's coin inventory to drop below that.
COIN RETRIEV
AL
Coins can be retrieved from the vendor in three (3) ways, the Coin Tray, Manual Coin Retrieval Buttons, and the Coin Return
Button. The Coin Tray sits below the Vertical Shelf. The Coin Tray holds all accepted coins, except for quarters needed to main-
tain inventory in the Quarter Tube. (Some overflow may occur.) The Manual Coin Retrieval Buttons are along side the Dime Tube,
pressing a button will dispense one (1) of the selected coins. With the Vertical Shelf pulled out, you will want to catch the coins
as they are dispensed. The Coin Return Button moves the Coin Return Arm, and pushes the Coin Return Lever returning coins
to the customer that have been inserted.
CAP
ACITY
The Coin Validator will hold $20 in quarters, $10.60 in dimes, and $3.65 in nickels. The Coin Validator can be set to maintain

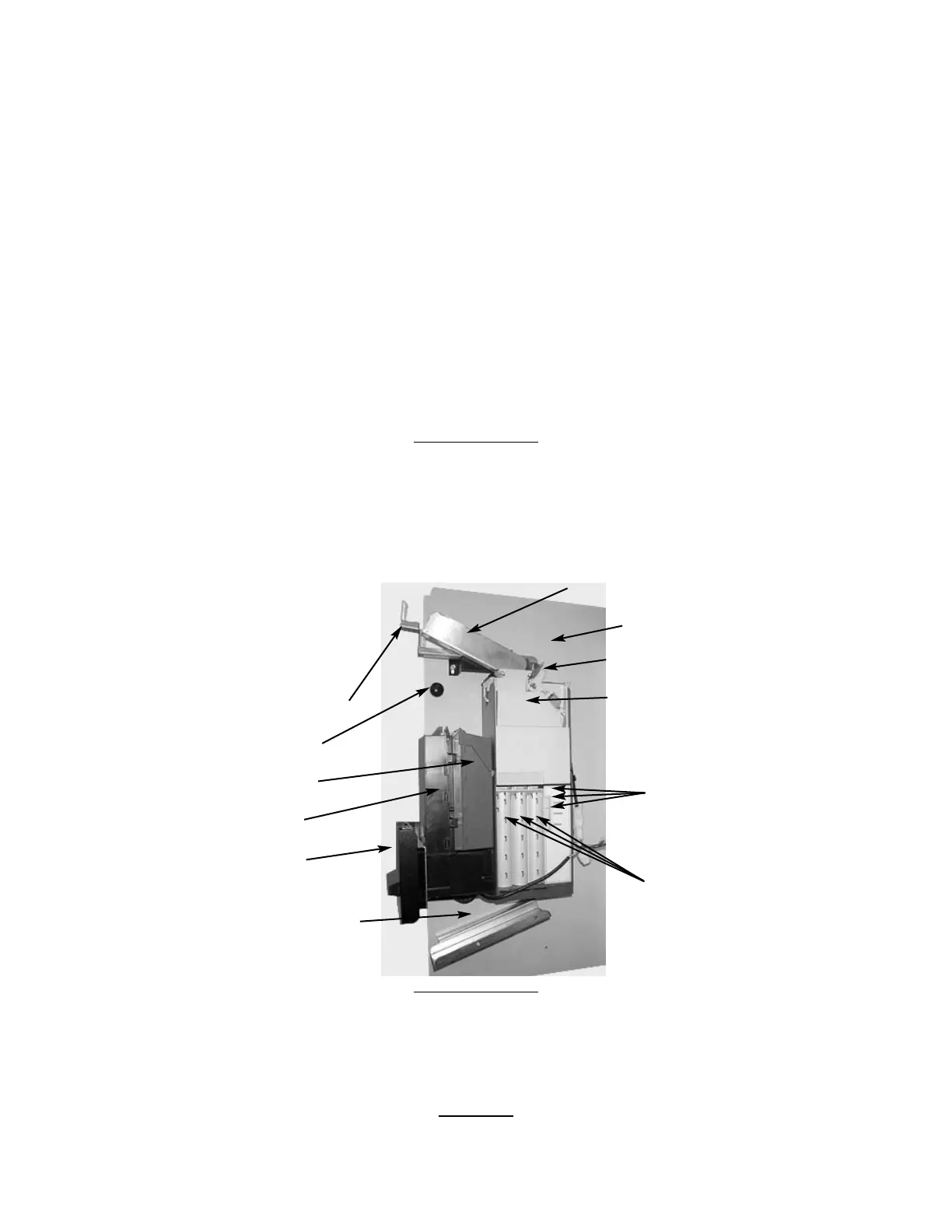

Elite Snack
Money Mechanisms
(Interior view with
Vertical Shelf extended)
Coin Return Arm
Coin Chute
Vertical Shelf
Bill Validator
Bill Stacker
Bill Storage Box
Coin Return Slide
Coin Hopper
Manual Coin
Retrieval
Buttons
(From
top, Quarters,
Nickels,
Dimes)
Coin Tubes
(From left,
Quarters,
Nickels,
Dimes)
Knob
Coin Return Lever
