22 Hawk 2XL Product Manual, Rev. B

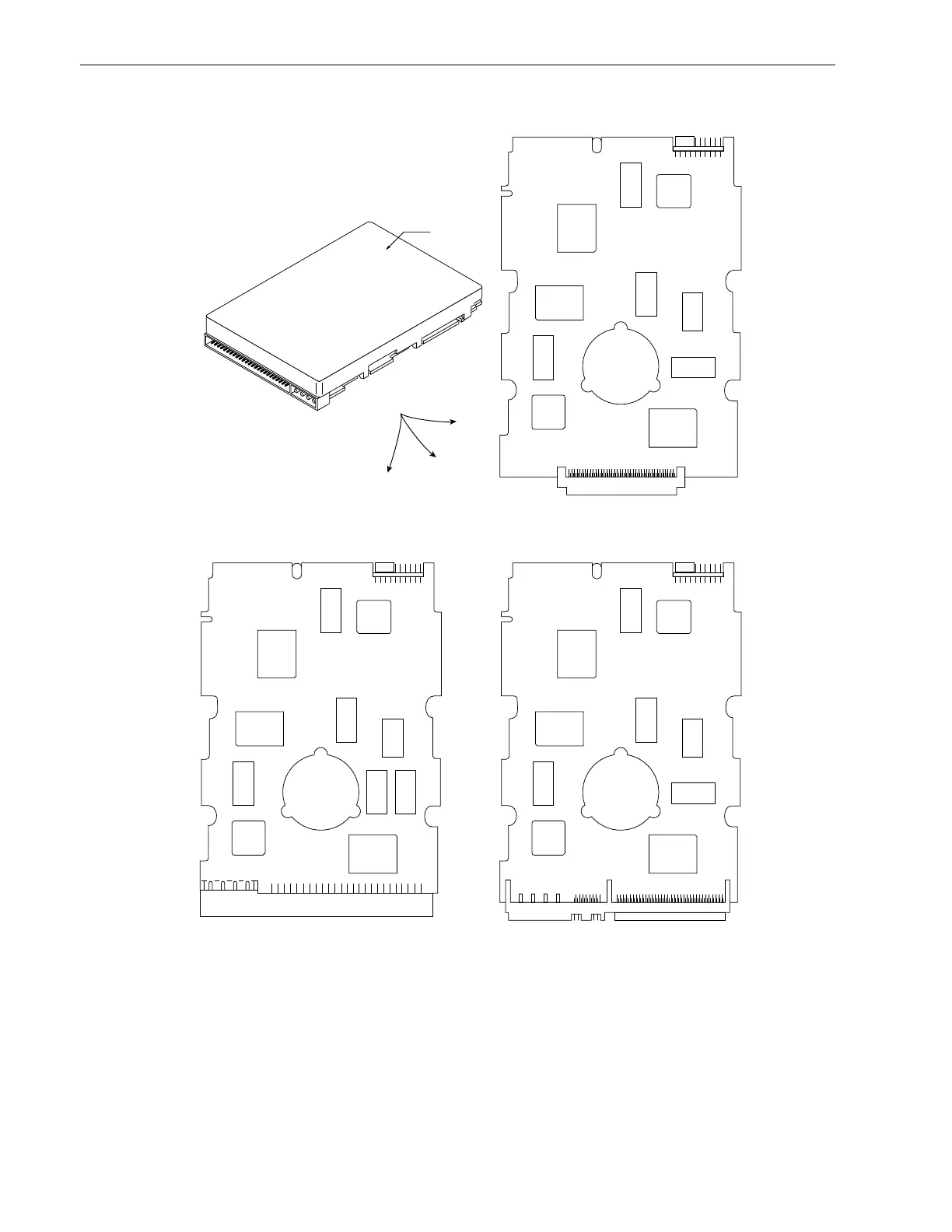

Figure 4. Locations of components (listed in Table 3)
6.4.2 Relative humidity
The values below assume that no condensation on the drive occurs.
a. Operating
8% to 80% relative humidity with a maximum gradient of 10% per hour.
b. Non-Operating
5% to 95% relative humidity.
Model “N” Single Ended I/O PCB [1]
HDA
J1
[1] Bottom side of PCB
U3
U8
U16
U7
U2
U1
U4
U13
U14
U15
U5
Model “W” Single Ended I/O PCB [1]
Model “WC” Single Ended I/O PCB [1]
PCB 1
PCB 2
PCB 3
U8
U16
U7
U2
U1
U4
U13
U14
U15
U5
U8
U16
U7
U2
U1
U4
U13
U14
U15
U5
J1
J1
