Seagate ST32151N - Mechanical Specifications; Figure 6 A. Mounting Configuration Dimensions for Model N

26 Hawk 2XL Product Manual, Rev. B
6.5 Mechanical specifications
The following nominal dimensions are exclusive of the decorative front panel accessory. However, dimensions
of the front panel are shown in figure below. Refer to Figures 6a, 6b and 6c for detailed mounting configuration
dimensions. See Section 8.4, “Drive mounting.”

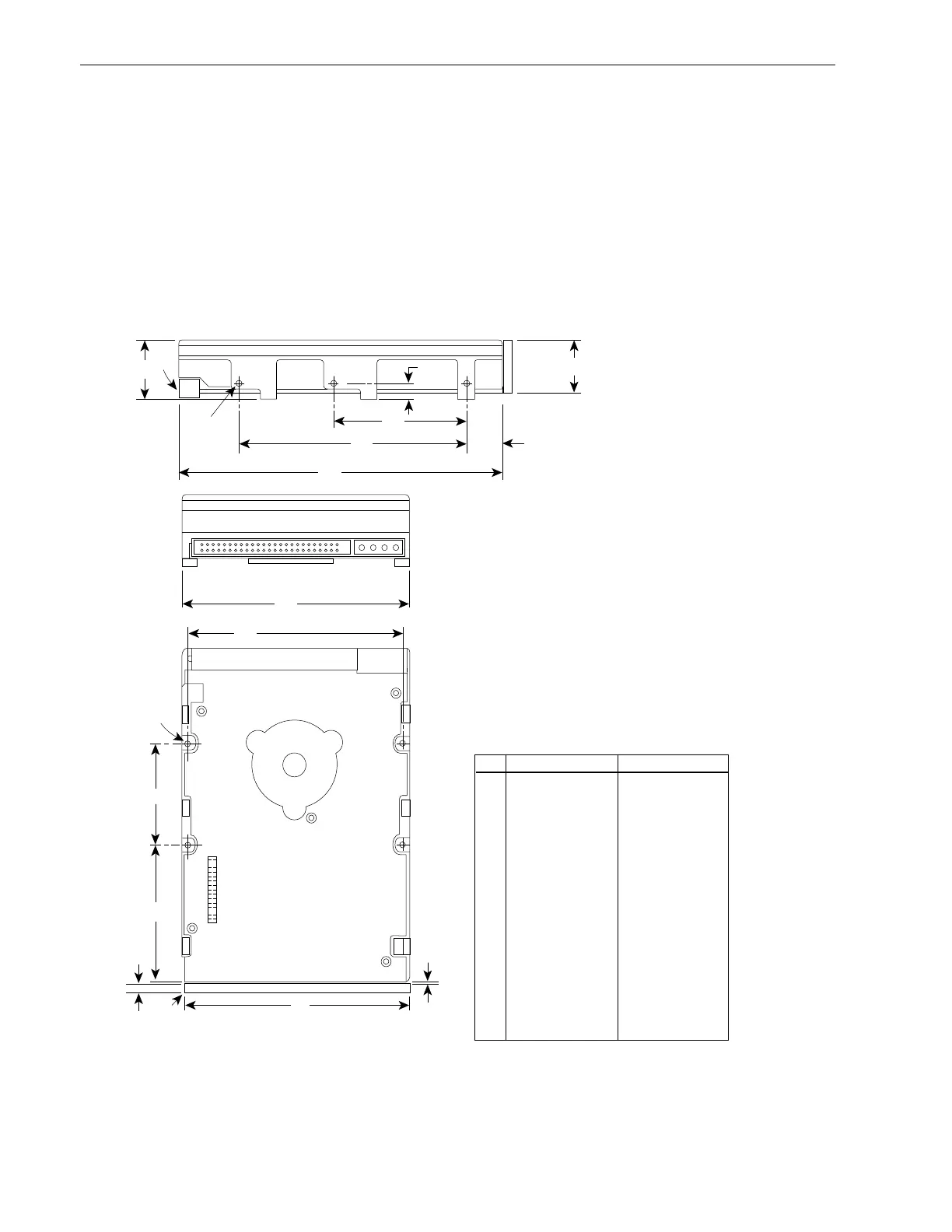

Figure 6a. Mounting configuration dimensions for model “N”
Height: 1.00 in 25.4 mm
Width: 4.00 in 101.6 mm
Depth: 5.74 in 145.8 mm
Weight: 1.5 pounds 0.68 kilograms
A
F
D
E
L
[1]
[3]
B
G
J
H
K
[2]
M
N
[4]
P
C
[4]
[1] Mounting holes three on each side, 6-32 UNC. Max 
screw length into side of drive 0.15 in. (3.81 mm).
Screw tightening torque 6.0 in-lb (.675 NM) max with
minimum thread engagement of 0.12 in. (3.05 mm).

[2] Mounting holes four on bottom, 6-32 UNC. Max 
screw length into bottom of drive 0.20 in. (5.08 mm).
Screw tightening torque 6.0 in-lb (.675 NM) max with
minimum thread engagement of 0.12 in. (3.05 mm).

[3] Power and interface connectors can extend 
past the "A" dimension by 0.040 in. (1.02 mm).

[4] Decorative front panel (optional).
Inches
A
B
C

D
E
F
G

H
J
K
L
M
N
P
R
145.80 
101.60 
25.40 

60.00 
15.75 
101.60 
6.35 

44.45 
95.25 
60.20 
25.4 
101.6 
4.83 
0.381
4.597
5.74 
4.00 
1.00 

2.362
.620
4.000
.250

1.750
3.750
2.370
1.00 
4.000
0.19 
0.015
0.181
± .010
± .010
+ .021
– .009
± .010
± .020
± .010
+ .010
– .005
± .010
± .010
± .020
± .010
± .010
± .010
max 
+ .015
– .010
± .25
± .25
+ .53
– .22
± .25
± .50
± .25
+ .25
– .12
± .25
± .25
± .50
± .25
± .25
± .25
max 
+ .38
– .25
