Seagate ST32151N - Figure 7 D. Hawk 2 XL Family Drive Option Select Header for Models N and W; Figure 7 E. Hawk 2 XL Family Drive Option Select Header for Model WC

Hawk 2XL Product Manual, Rev. B 35

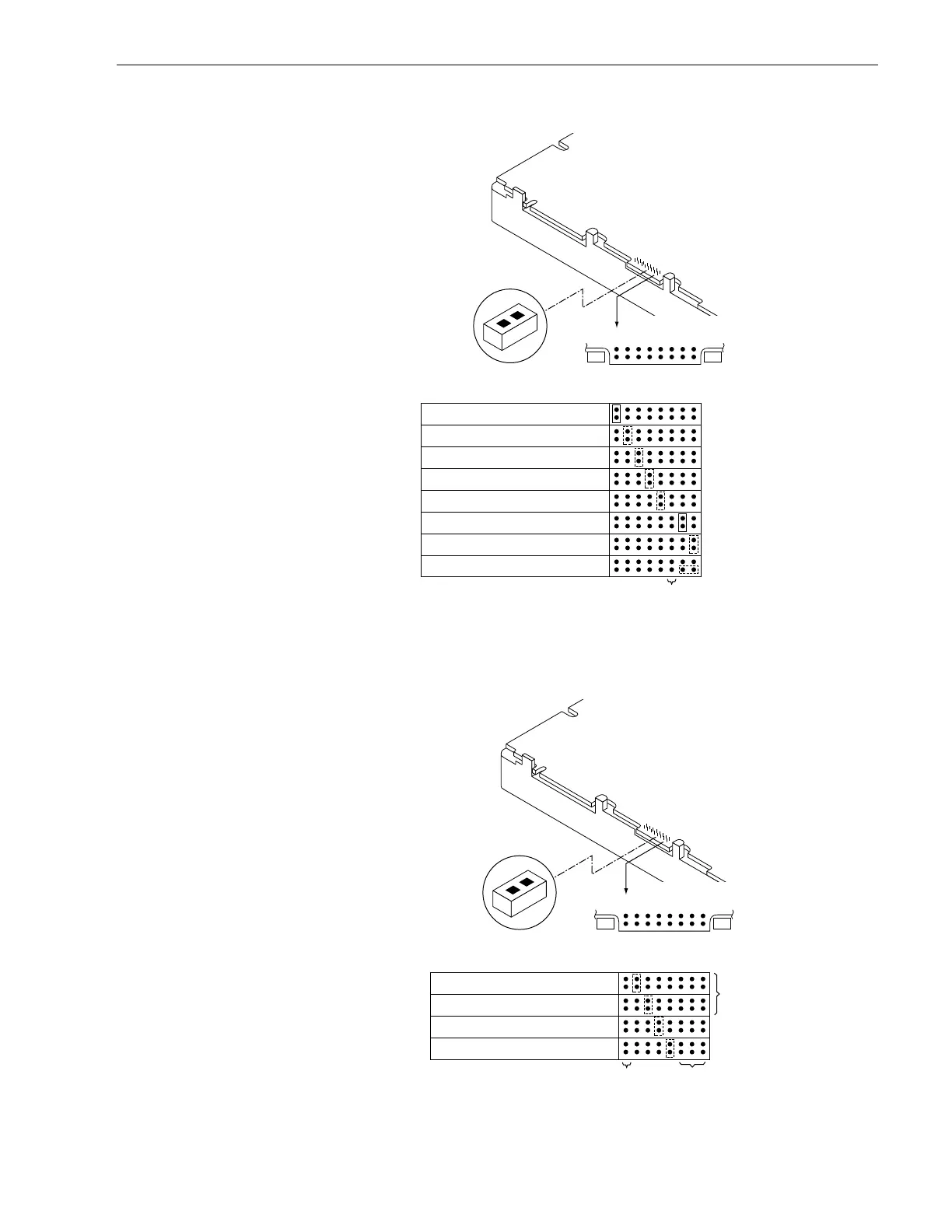

Figure 7d. Hawk 2XL family drive option select header for models “N” and “W”
Figure 7e. Hawk 2XL family drive option select header for model “WC”
Delay Motor Start
Enable Motor Start
Write Protect
Parity Disable
Term. Power from Drive
Term. Power to SCSI Bus
Term. Power from SCSI Bus

T
E

D
S

M
E

W
P

P
D
R
E
S

T
P

T
P
Jumper
Positions
Terminator Enable
(default)
(default)
J2
J2
*
Jumper Plug
(enlarged to
show detail)
Drive
Front
[3]
Caution:

Do not use J2 jumper plugs
on J6 or J1-Auxiliary, as the
internal contacts will be
deformed and can not be
used on J2 without them
falling off.









*Additional notes [ ] on these 
functions in section 8.1.2.
Delay Motor Start
Enable Motor Start
Write Protect
Parity Disable
R
E
S

D
S

M
E

W
P

P
D
R
E
S
R
E
S
R
E
S
Jumper
Positions
J2
J2
* 
Jumper Plug
(enlarged to
show detail)
Drive
Front
[3] [3]
[5]
Caution: 

Do not use J2 jumper
plugs on J6, as the internal
contacts will be deformed
and can not be used on J2
without them falling off.



* Additional notes [ ] on 
these functions in 
section 8.1.2.
