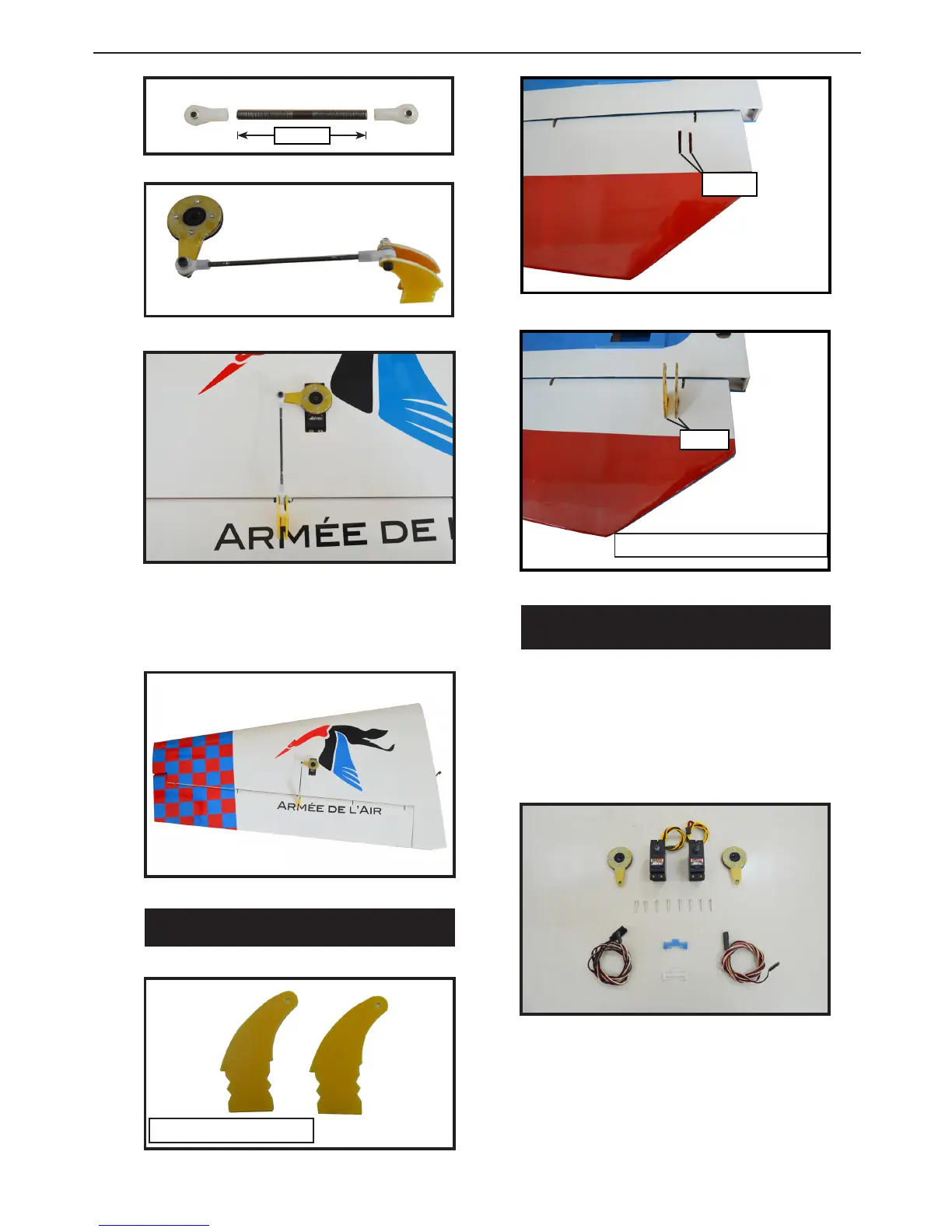

ELEVATOR SERVO INSTALLATION.
1) e elevators have been pre-hinged
and glued to the stabs and are ready for
ight. No other steps are necessary for
hinging.
INSTALL ELEVATOR CONTROL HORN.
Elevator berglass control horn.
Epoxy.
Epoxy.
Fiberglass control horn
2) Attach the extension to the servo lead
and secure with Safety Clip, safety wire,
tape or other method. Ensure the plugs
will not come apart from vibration or
light tension.
Repeat all the above steps for the other
wing.
