RV-8 ARF 35-40cc
Instruction Manual.
18

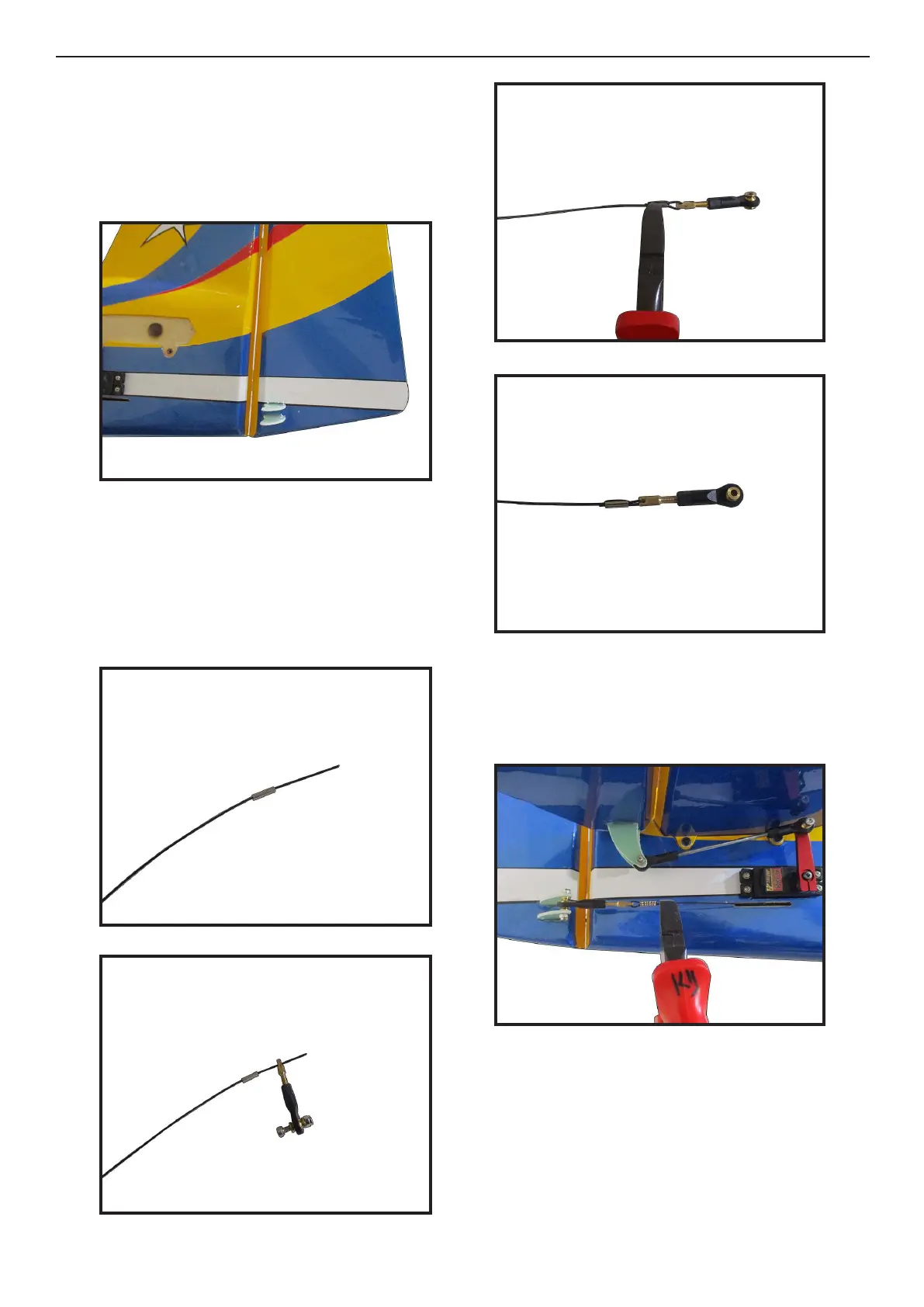

Tape the rudder balance tab to the top
leading edge of the vertical n in the
neutral position as shown. is ensures
the rudder is straight when the cables are
attached.
read the rudder cable through a
brass swage tube, then the threaded co
pler, and back through the brass swage
tube on both sides. Pull light tension on
the cable through the coupler on both
sides as shown.
2.
3.
4.
5.
6.
7.
Loop the cable back through the brass
swage tube and tighten the second loop
through the brass swage tube as shown.
Crimp the brass tube with a crimping
tool or pliers.
