RV-8 ARF 35-40cc
Instruction Manual.
28
9.

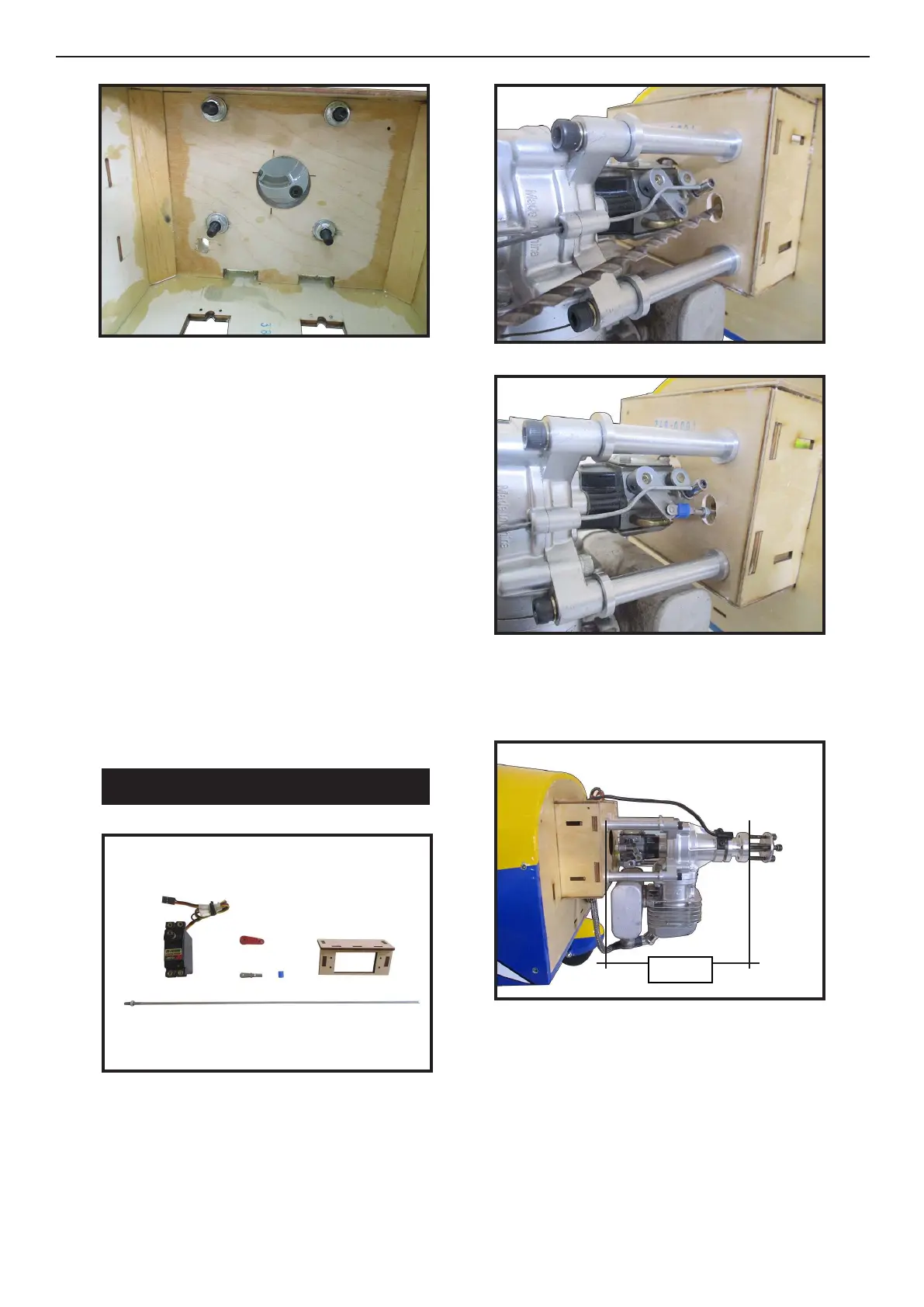

e re wall has the location for the
throttle pushrod tube (pre-drill).
Slide the pushrod tube in the rewall
and guide it through the fuel tank mount.
Use medium C/A to glue the tube to the
rewall and the fuel tank mount.
Connect the Z-bend in the 450mm
throttle pushrod to the outer hole of the
carburetor arm.
Slide the throttle pushrod wire into the
tube. Position the engine between the
mounts. Use four M4x30mm machine
screws to secure the engine to the mount
as shown.
Use a 1/4” bit to drill a pushrod exit
hole in the rewall in line with the engine
carburetor throttle arm.
Assemble ball link to threaded end of
pushrod.
Attach throttle pushrod to the carbure-
tor throttle arm with the ball link.
THROTTLE SERVO INSTALLATION
3.
2.
1.
4.
Install adjustable servo connector in the
servo arm as same as picture below:
160mm
To Next Page
