Section 1: MECHANICAL INSTALLATION
1.5.2 Transfer of Holes to Boat Structure

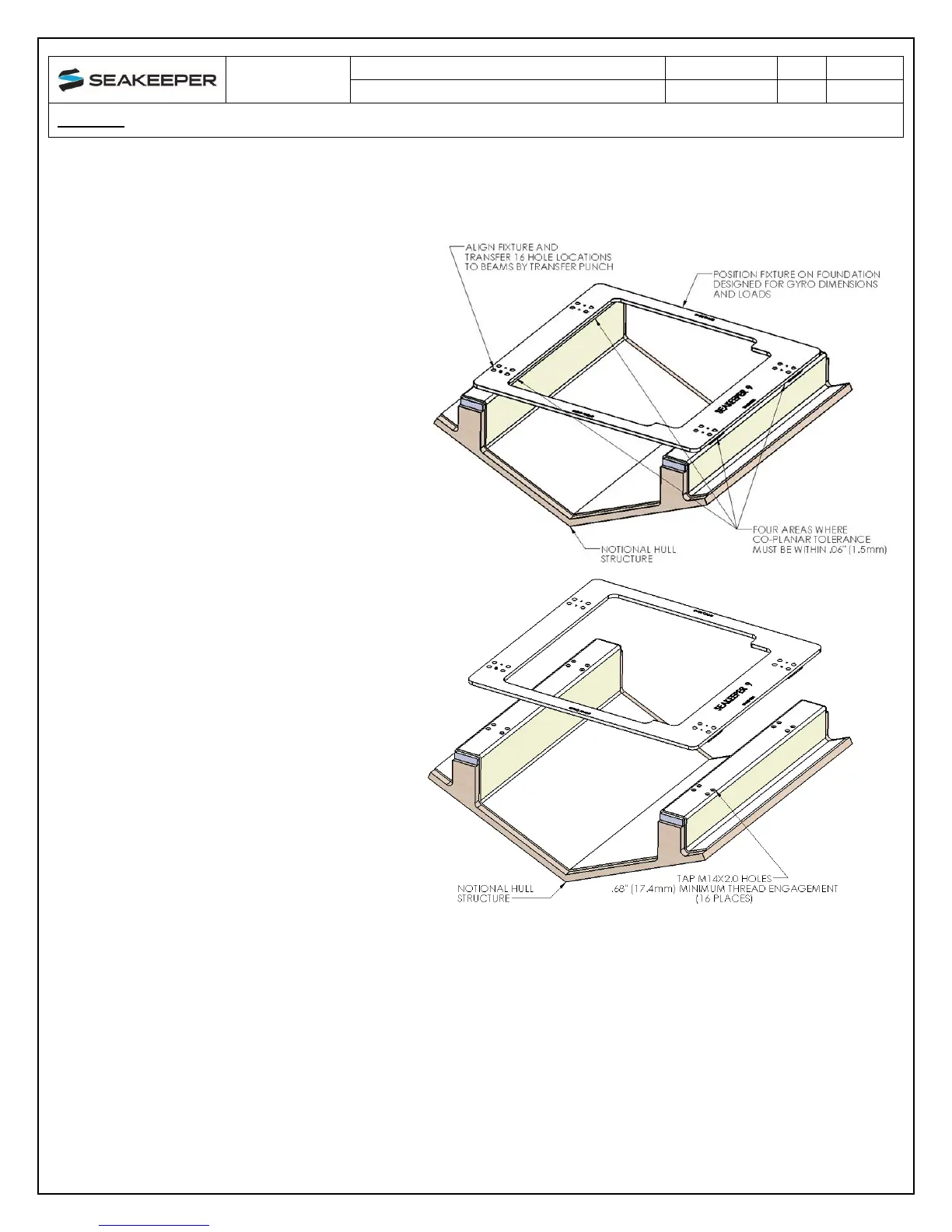

1) Lower assembled fixture onto hull
structure.
2) The four areas where the feet of
the Seakeeper will rest should be
coplanar to within .06” (1.5 mm).
See Figure 10.
3) Align fixture in desired location and
transfer holes from fixture plate to
the hull structure. Note that holes in
fixture plate are ø0.55 (14 mm).
4) Remove fixture and drill and tap
M14X2.0 holes in hull structure at
marked locations to mate with
holes in the Seakeeper foundation.
Take special care to drill
perpendicular to mounting surface.
Remove any impeding
obstructions.
