EdgeBox-RPI-200 User Manual
WWW.SEEEDSTUDIO.COM 8

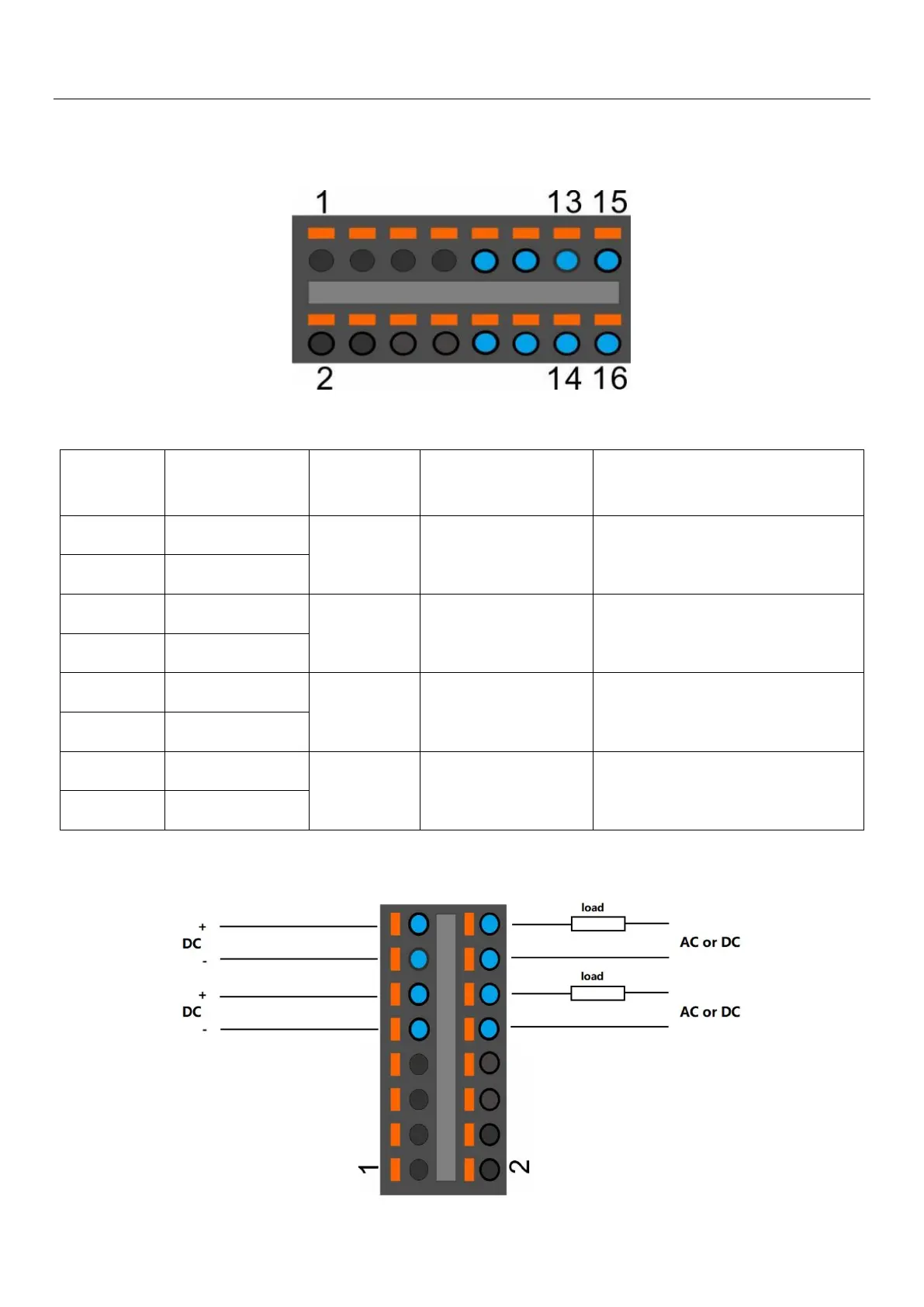

2.2.3 DI&DO
Pin#
Signal of
terminal
PIN Level
of active
PIN of GPIO from
BCM2711
NOTE
09
DI0-
HIGH
GPIO17
11
DI0+
13
DI1-
HIGH
GPIO27
15
DI1+
10
DO0_0
HIGH
GPIO23
12
DO0_1
14
DO1_0
HIGH
GPIO24
16
DO1_1
NOTE:
