EdgeBox-RPI-200 User Manual
WWW.SEEEDSTUDIO.COM 12
2.2.11 Mini-PCIe

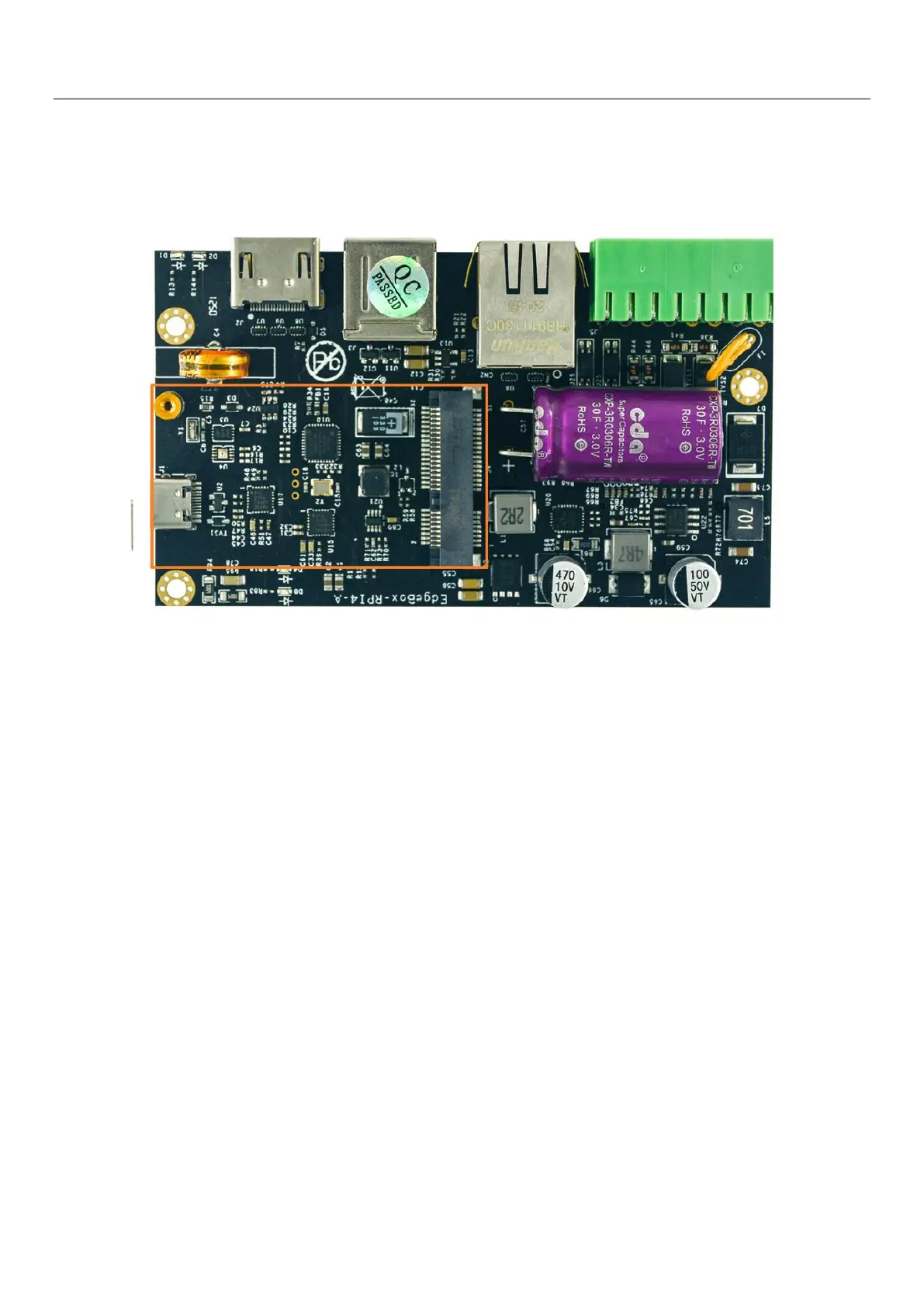

The orange area is the rough Mini-PCIe add-on card position, only one m2x5 screw is needed.
The table below show all the signals. Full size Mini-PCIe card are supported.
