EdgeBox-RPI-200 User Manual

WWW.SEEEDSTUDIO.COM 10

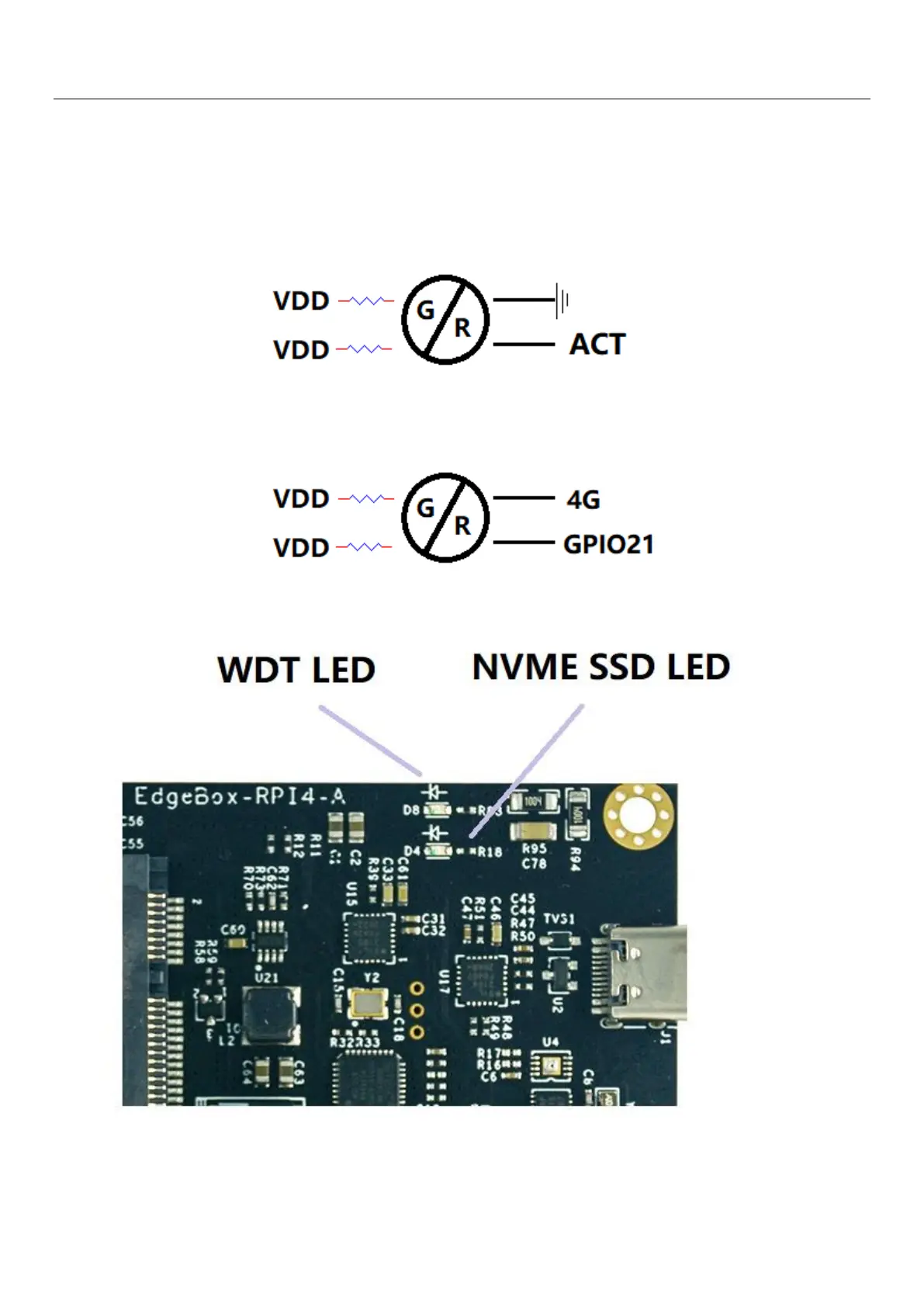

2.2.8 LED

EdgeBox-RPI-200 use two green/red dual colour LED as outside indicators.

LED1: green as power indicator and red as eMMC active.

LED2: green as 4G indicator and red as user programmable led connected to GPIO21, low

active, programmable.

EdgeBox-RPI-200 also use two green colour LED for debug.
