EdgeBox-RPI-200 User Manual
WWW.SEEEDSTUDIO.COM 11

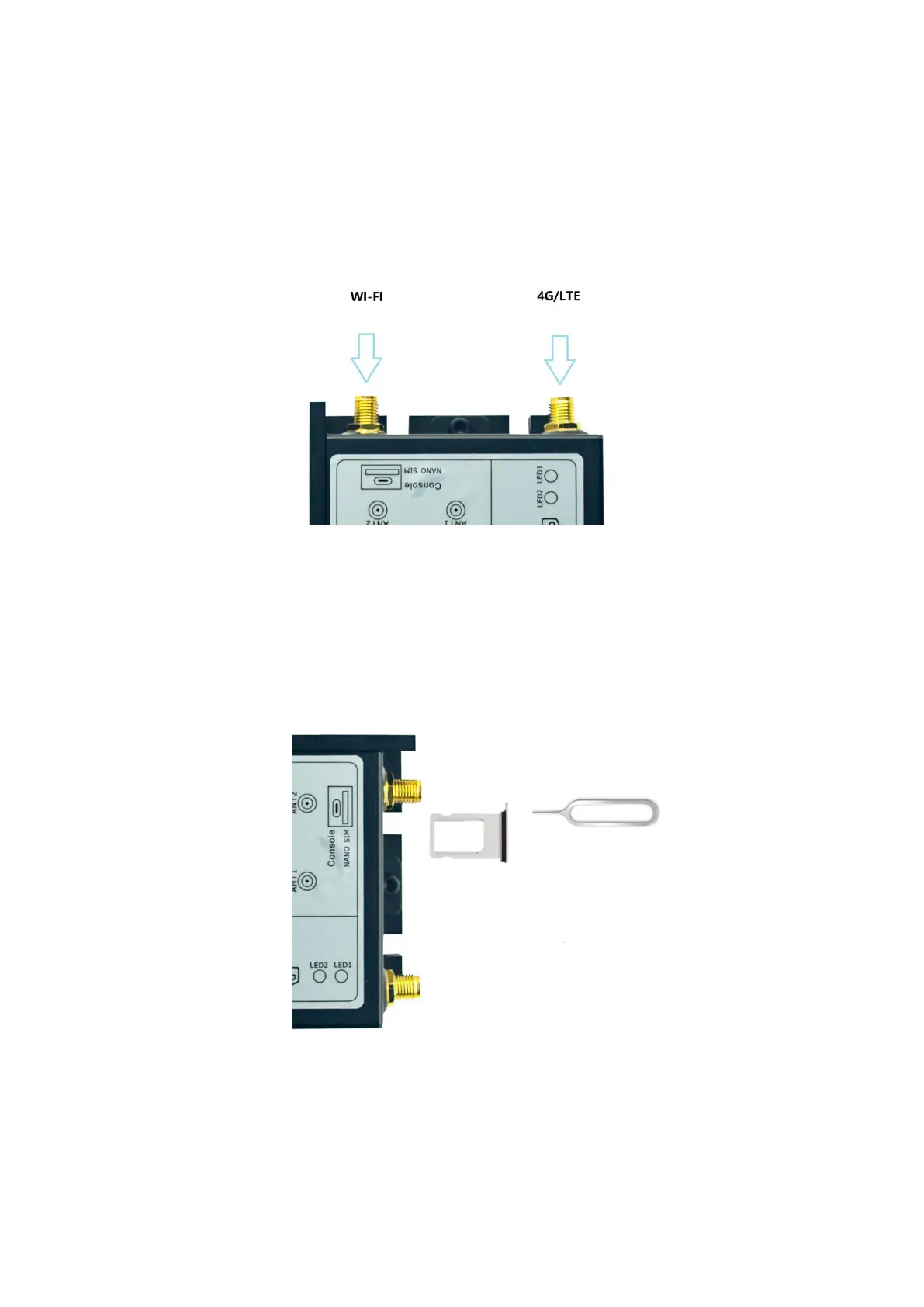

2.2.9 SMA Connector
There are two SMA Connector holes for antennas. The antenna types are very depended on what
modules fitted into the Mini-PCIe socket. The ANT1 is default used for Mini-PCIe socket and ANT2
is for Internal WI-FI signal from CM4 module.
NOTE: The functions of the antennas are not fixed, maybe adjusted to cover other usage.
2.2.10 NANO SIM card slot
The sim card is only needed in cellular (4G, LTE or others based on cellular technology) mode.
NOTE:
1. Only NANO Sim card is accepted, pay attention to the card size.
2. The NANO sim card is inserted with chip side top.
