18
ASSEMBLY AND INSTALLATION
6
2

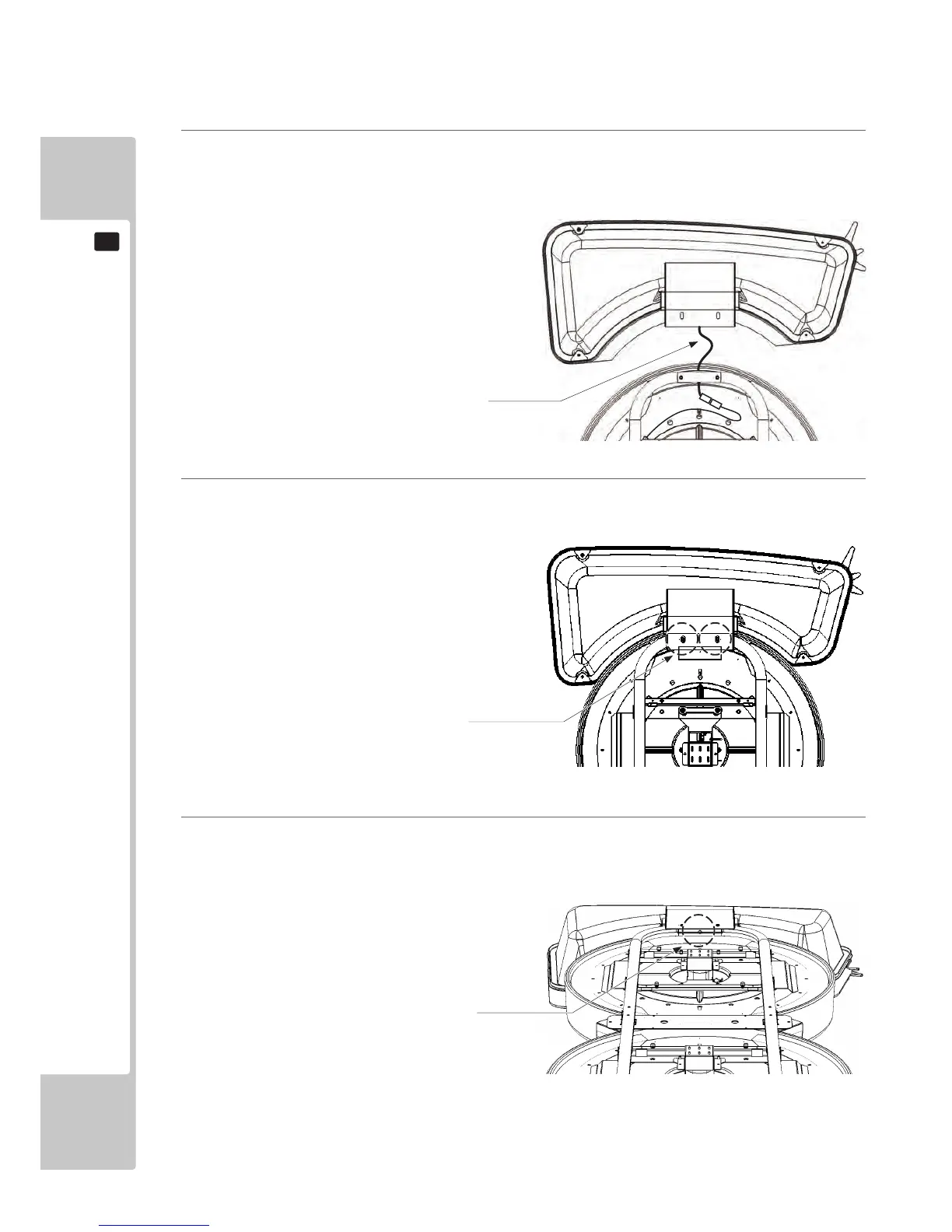

Using a step and 2 people, offer the ASSY BILLBOARD up to the cabinet. Connect the harness for the
BILLBOARD LEDS making sure that the harness is positioned behind the cabinet frame.
3
Once the ASSY BILLBOARD is located rmly into position secure it by tting (2) M8x20 SKT CAP with
M8 SPR WSH ans M8 FLT
4
Fit and secure (1) M8x50 SKT CAP, M8 SPR WSH, M8 FLT WSHR to the underside of the BILLBOARD.
Billboard Harness
020-F00820-0Z - M8X20 SKT CSK 0Z (2)
060-S00800 M8 WSHR SPR PAS (2)
068-852216-0B M8 WSHR 22OD FLT BLK (2)
020-F00850-0Z - M8X50 SKT CSK 0Z (1)
060-S00800 M8 WSHR SPR PAS (1)
068-852216-0B M8 WSHR 22OD FLT BLK (1)
