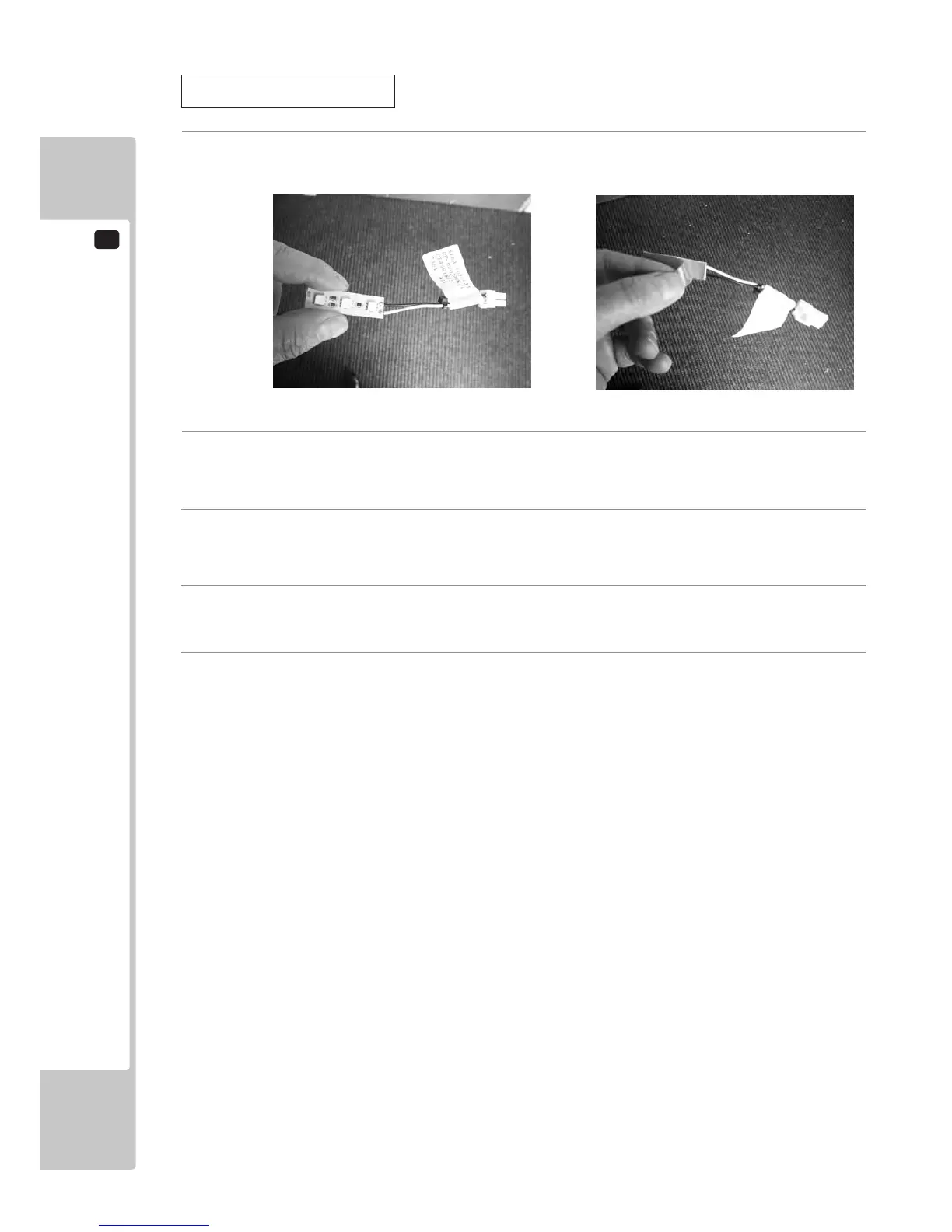

When tting the replacement WHT LED array (DB-60030UK) make sure the component is intact and free
from damage. Peel away the protective backing and adhere in the same location as the previous LED PCB.
2
Follow steps 8 and 9 in reverse order.
3
Power on the machine - the machine will try to initialise but without the Upper Disc tted will fail to do sa
nad time out after 30 seconds.
4
When the machine has timed out, enter test and service menu to check the replaced LED array. (see chapet 9
for Test and Service options)
5
Once checked - remove the power from the machine and follow steps 2 through to 7 in reverse order to
complete.
FITTING THE WHT LED ARRAY
