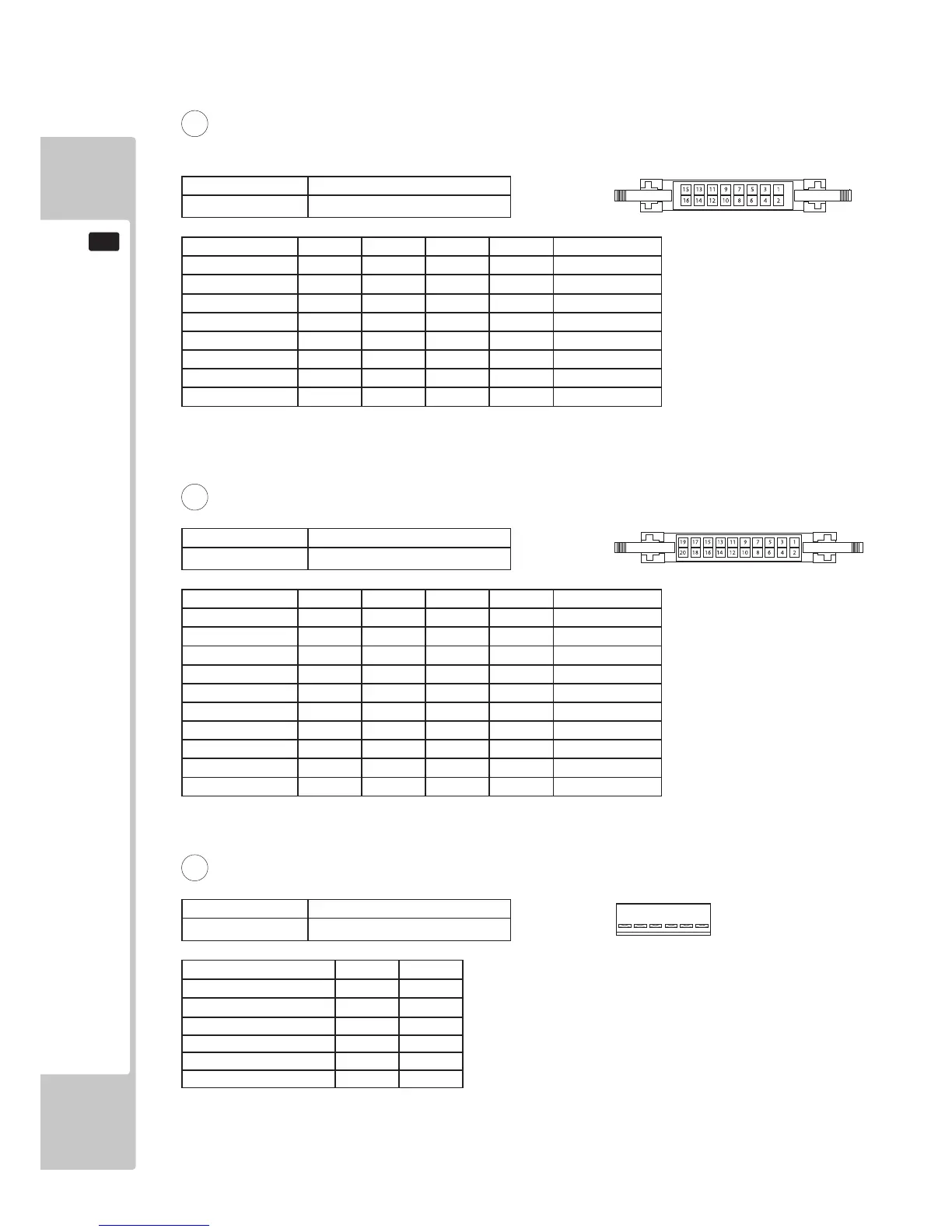

Sega Double Spin - 7 - Segment LED Display; Counters; Meters; LCD Display

84
GAME BOARD
16
Function O/P Pin Pin O/P Function
A Credit UNITS 1 2 A Credit TENS
3 4
A SEG a 5 6 A SEG b
A SEG c 7 8 A SEG d
A SEG e 9 10 A SEG f
A SEG g 11 12 A SEG dp
A JP UNIT 13 14 A JP TENS
A JP HUND 15 16 A JP THOU
Function O/P Pin Pin O/P Function
GND 1 2 GND
GND 3 4 GND
V0 5 6 RS
R/W 7 8 E
DB0 9 10 DB1
DB2 11 12 DB3
DB4 13 14 DB5
DB6 15 16 DB7
LED + 17 18 LED -
5V 19 20 GND
Function O/P Pin
+12V 1
+5V 2
GAMES Meter 0 3
TICKETS Meter 1 4
Spare Open Collector Spare_0 5
Spare Open Collector Spare_1 6
LOCATION TYPE
J1 16W JST RA TYPE
LOCATION TYPE
J2 20W JST RA TYPE
LOCATION TYPE
J3 6W JST NH
NOTE:Beforeconnecting,besuretocheckthetypeofconnector.
1
7 - Segment LED Display
2
3
LCD Display
Counters / Meters
1 2 3 4 5 6
