ASSEMBLY AND INSTALLATION
6

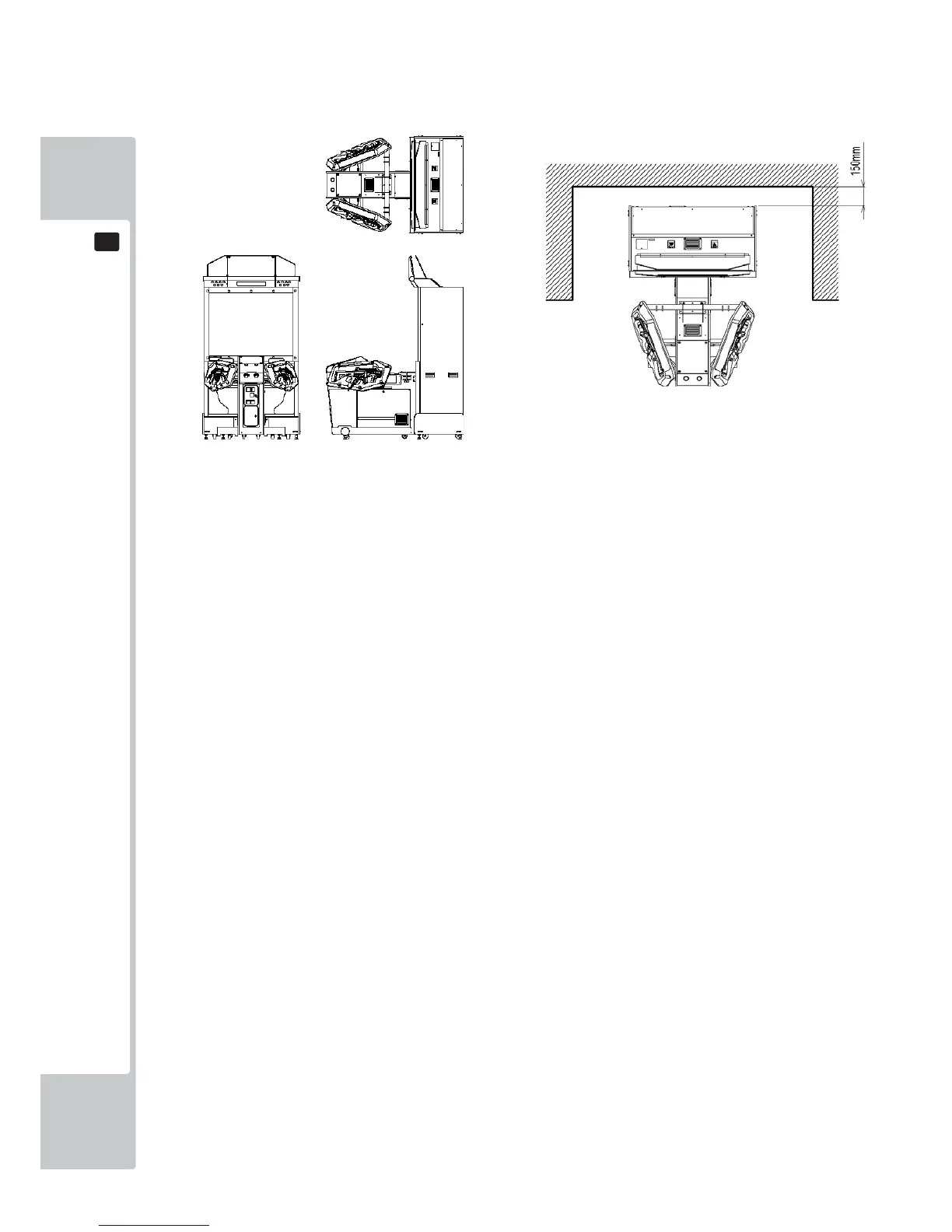

FIG. 6-2d Three Surface Views
Views are reduced to 1/100. Use them for reference
in installation site layout.
You must secure a 150cm ventilation space between
the back of the DLP and the wall.
FIG. 6-2e Ventilation Space
