104

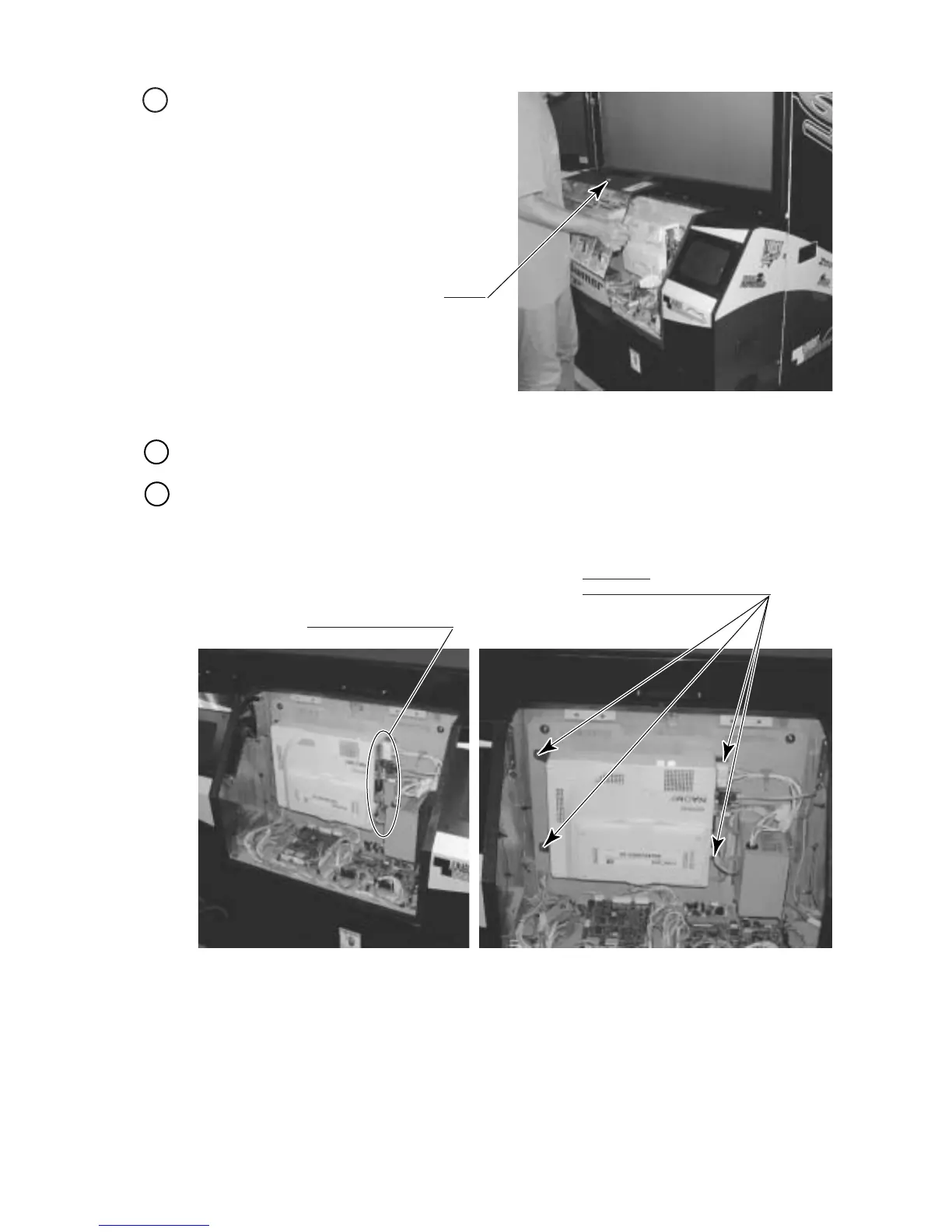

PHOTO 18. 1 b
Disconnect all the connectors of the NAOMI Game Board installed inside the Cabinet.
Take out the 4 screws securing the Game Board to remove it. Taking out the screws, the Game
Board will fall down. Be sure to take out the screws supporting the Board firmly.
PHOTO 18. 1 c
SCREW (4)
M4 X 16,w/flat & spring washers
Disconnect the connector.
Unlock
Unlock the Service Lid and lift it up a little, and
take out the nut securing the earth wire
carefully to remove the Service Lid.
4
5
6
