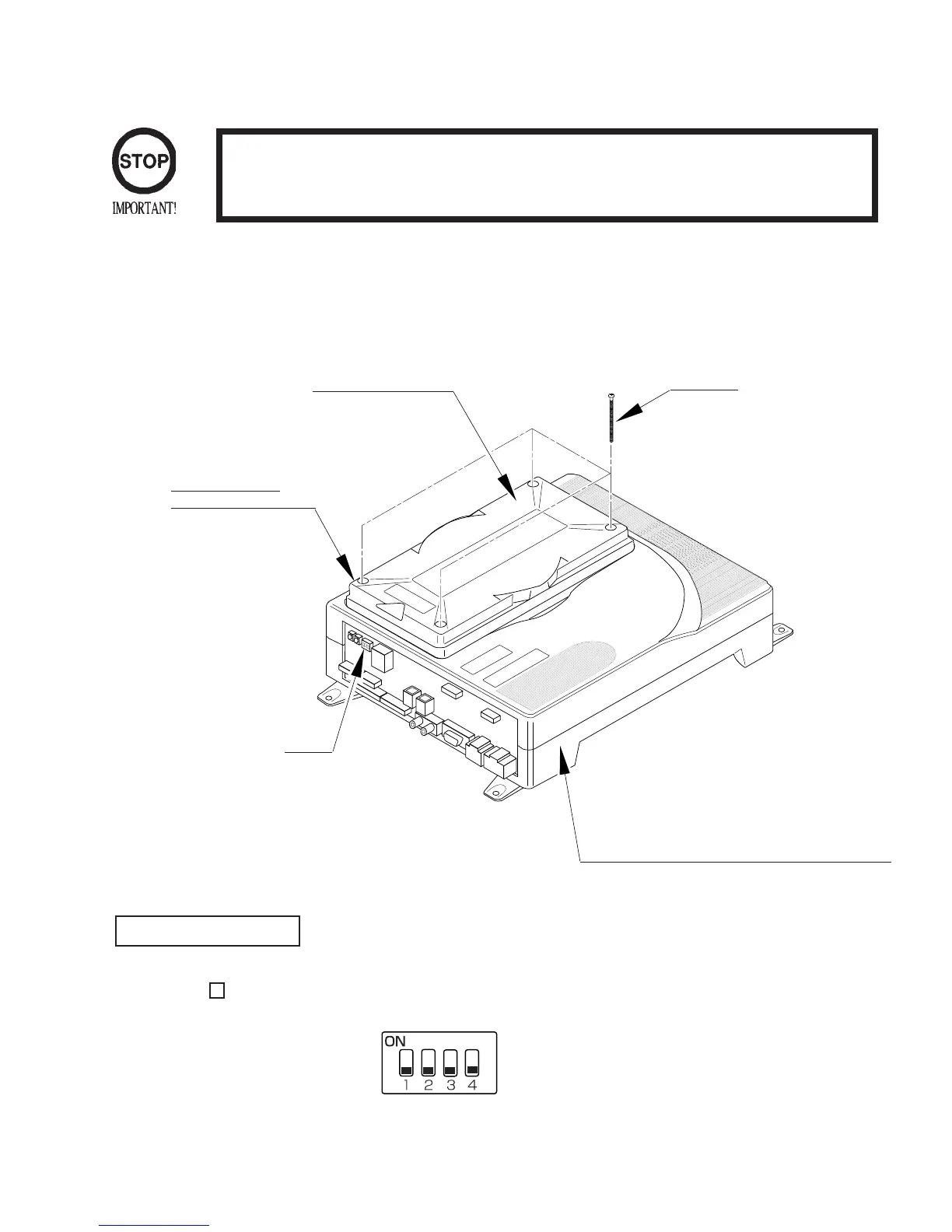

18 - 2 COMPOSITION OF GAME BOARD
Ensure that the DIP SW setting is performed as designated. Failure to observe
this may cause functioning not suitable for the actual operation, or
malfunctioning.
DIP SW
FIG. 18. 2 b
FIG. 18. 2 a
ROM CASE NAO WRG
840-0064C
ASSY CASE NAO
COMMUNICATION BD
840-0001E
SCREW (4)
M3 X 50,chrome plated
In this product, set all of the DIP SWes to OFF.
DIP SW SETTING
ASSY CASE NAOMI MAIN BD USA:840-0001A-01
ASSY CASE NAOMI MAIN BD EXP:840-0001A-02
ASSY CASE NAOMI MAIN BD KOR:840-0001A-03
ASSY CASE NAOMI MAIN BD AUS:840-0001A-04
ASSY CASE NAO WRG USA (840-0064D-01) : USA
ASSY CASE NAO WRG EXP (840-0064D-02) : OTHERS
ASSY CASE NAO WRG KOR (840-0064D-03) : KOREA
ASSY CASE NAO WRG AUS (840-0064D-04) : AUSTRALIA
