113

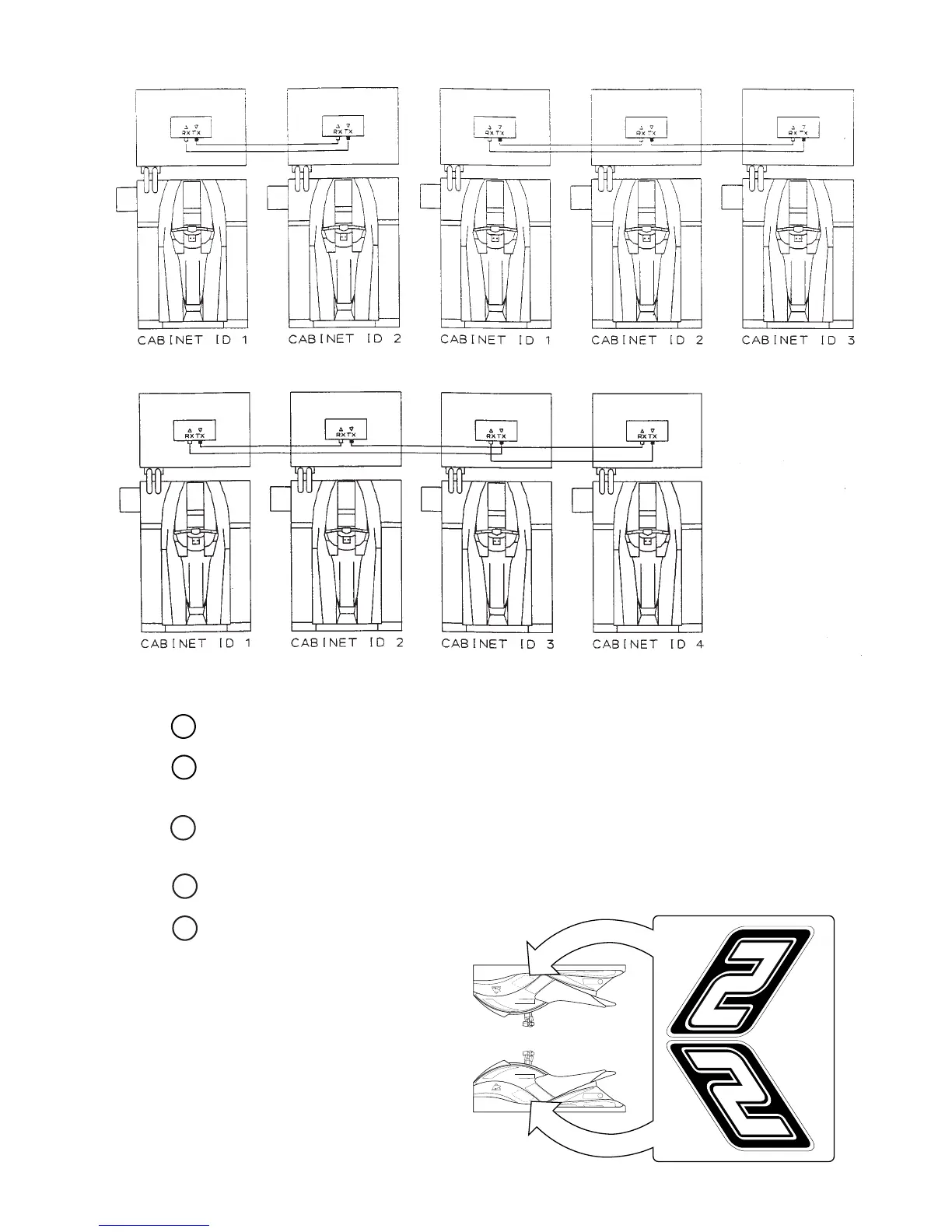

2P LINK 3P LINK
4P LINK
FIG. 20. 2 b Connecting method of the communication cable
Install the Service Lid on the Front Cabinet and lock it.
Arrange the interconnected game machines. Keep a space between the game machines as wide
as possible.
Make the adjusters of all the game machines come into contact with the floor
(see Section 6 3 ).
Connect the power cords and the earth wires (see Section 6 5 ).
Put the number stickers on both
sides of the Ride. Facing the PTV
screens, put the stickers '1', '2', '3',
'4' from left to right.
FIG. 20. 2 c
9
10
11
12
13
To Next Page
