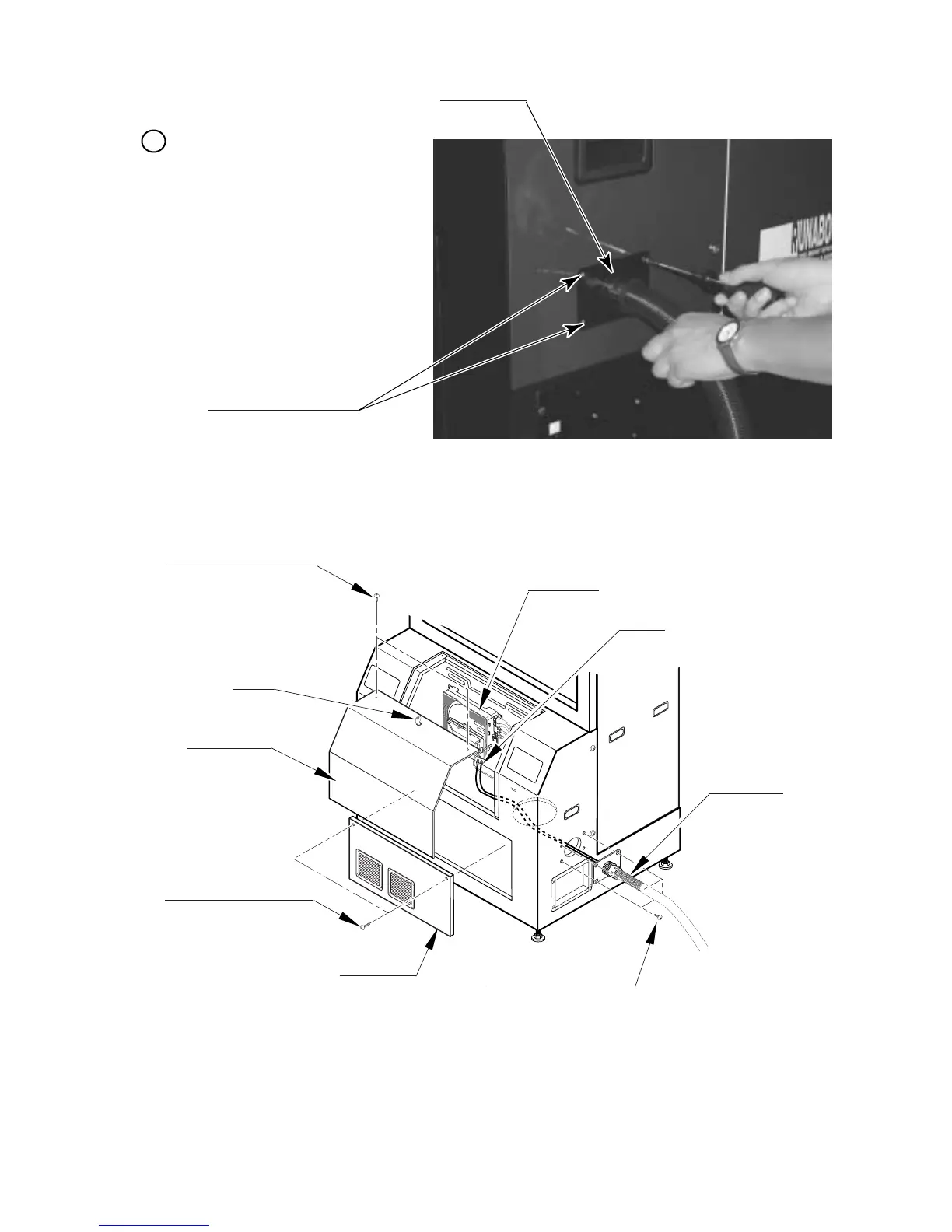

Fix the Fiber Plate on the side of
the Front Cabinet using the 4 truss
screws that secured the Side Lid
previously.
FIBER PLATE
TRUSS SCREW (4),black
M4 X 16
PHOTO 20. 2 d
TRUSS SCREW (4),black
M4 X 16
LOWER LID
TRUSS SCREW (2),black
M4 X 25
SERVICE LID
TRUSS SCREW (2),black
M4 X 16
NAOMI BD
COMMUNICATION
CABLE
FLEX TUBE
FIG. 20. 2 a
