111

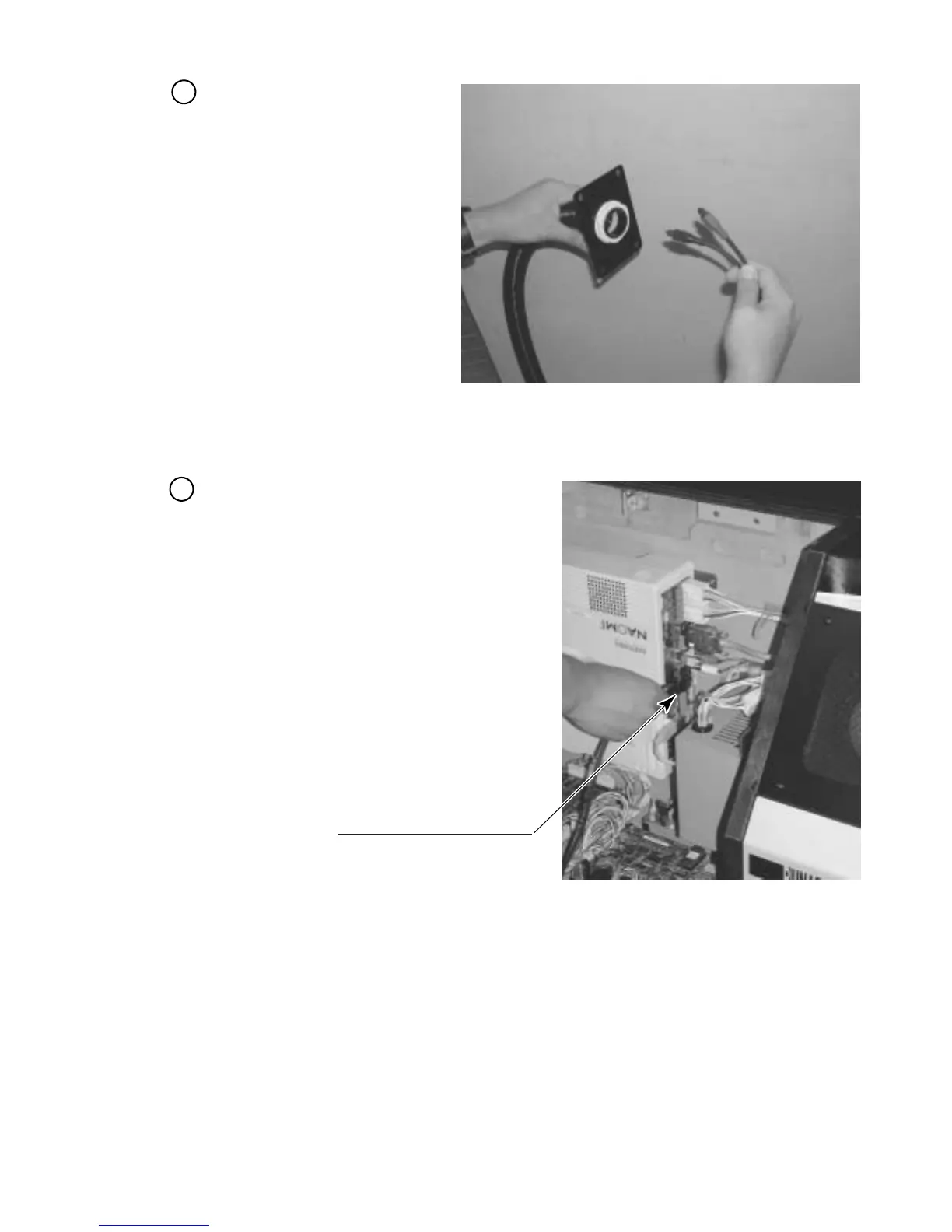

Insert the communication cable
into the assembled flex tube.
Depending on the number of the
interconnected game machines, the
method of the interconnection
varies.
PHOTO 20. 2 b
Connect the communication cable to each game
board. Pass the communication cable through
the round hole on the side of the Front Cabinet
and connect to the game board connectors. A
connecting method varies depending on the
number of the interconnected game machines
(see Fig. 20.2b).
Always connect the red connector to RX and
the black connector to TX, and thereby make a
loop of the communication cable.
PHOTO 20. 2 c
Connect the communication cable.
6
7
To Next Page
