10

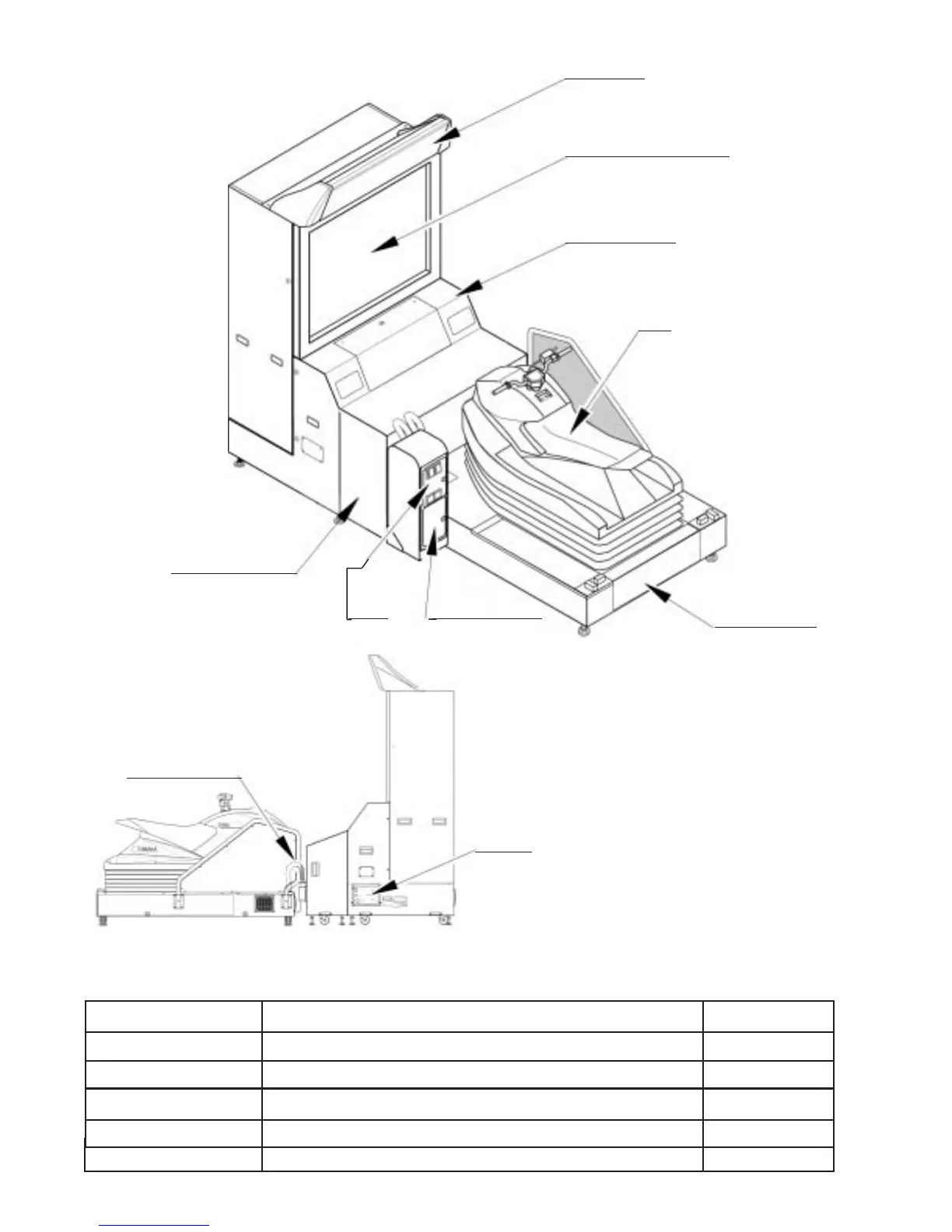

4. NAME OF PARTS
BILLBOARD
PTV 50 TYPE PROJECTOR
REAR CABINET
FRONT CABINET
RIDE
COIN
CHUTE
DOOR
CASHBOX DOOR
ASSY WIRE TUBE
AC UNIT
FIG. 4 a
FIG. 4 b
Items Width X Depth X Height Weight
PTV 44.9in
[1,140mm](W) X 9.98in[253.5mm](D) X 65.75in[1,670mm] (H) 242-lbs[110kg]
BILLBOARD 45.4in[1,152mm](W) X 17.9in[454mm] (D) X 11.7in[297mm] (H) 33-lbs[15kg]
FRONT CABINET 45.3in[1,150mm] (W) X 35.3in[896mm] (D) X 39.6in[1,005mm] (H) 215.6-lbs[98kg]
REAR CABINET 56.5in[1,435mm](W) X 65.6in[1,665mm](D) X 42.5in[1,080mm] (H) 545.6-lbs[248kg]
COMPRESSOR BOX 43.9in[1,115mm](W) X 20.3in[514mm] (D) X 30.5in[775mm] (H) 156-lbs[71kg]
TABLE 4 Dimensions and Weights
COMPRESSOR BOX
