12 - 2 ADJUSTING OR REPLACING THE HANDLE V.R.
Adjust or replace the Handle Volume in the following procedure.
This work requires a Phillips screwdriver for M5 screws and a short Phillips screwdriver for M4
screws.
Take out the 3 fixed truss screws
and remove the cover of one side
so as not to put the power
excessively.

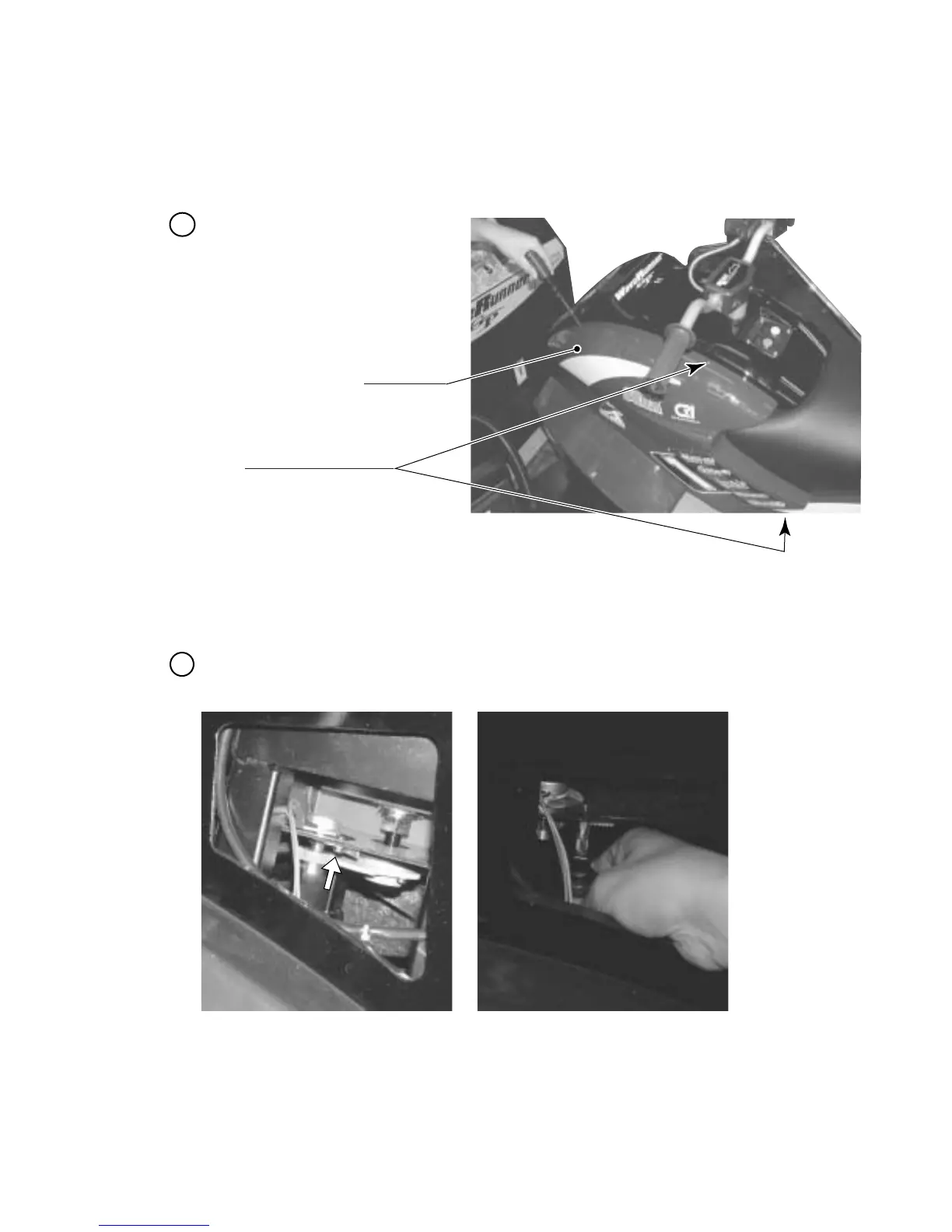

PHOTO 12. 2 a
SIDE COVER
TRUSS SCREW (3),black
M5 X 20
Removing the side cover, the Handle Volume is appeared. Perform this work using a short
Phillips screwdriver.
PHOTO 12. 2 b
1
2
