17
Phillips type screwdriver (for M4, M5 screw)
KEY MASTER
WRENCH (for M16 hexagon bolt)
24mm

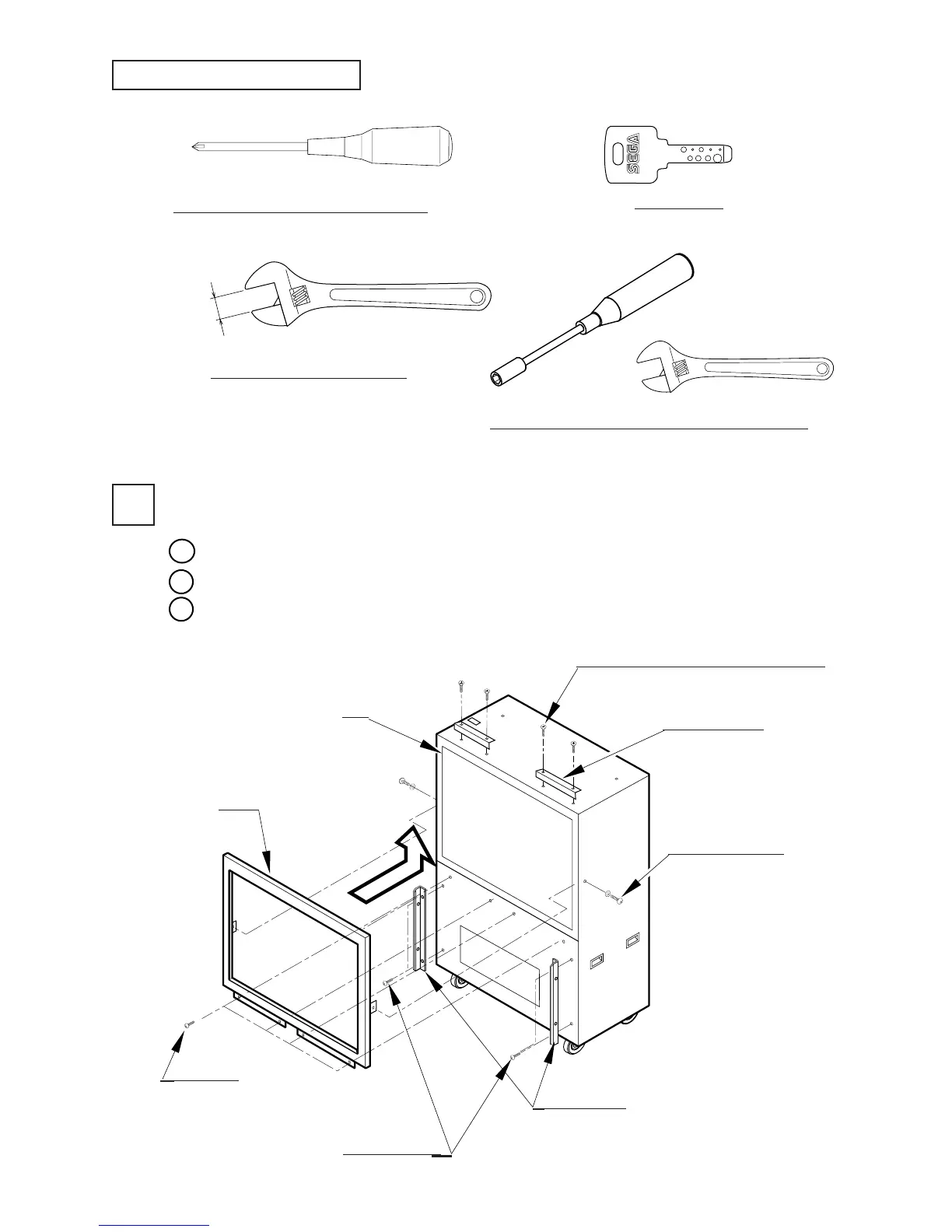

ASSEMBLING THE PTV
Fix the two mask holders onto the PTV top panel each with the 2 countersunk-head screws.
Insert the TV mask from the underside as illustrated below, and secure with a total of 6 screws.
Fix two PTV holders onto the PTV front side each with the 2 screws.
COUNTERSUNK-HEAD SCREW (2 each)
M4 X 12
MASK HOLDER
PTV
MASK
SCREW (4)
M5 X 20,
w/flat & spring washers
SCREW (2 each)
M5 X 16,w/flat & spring washers
PTV HOLDER
TRUSS SCREW (2)
M5 X 25,flat washer used.
FIG. 6. 1 a
Box nut screwdriver (for M4 hexagon nut) or WRENCH
Tools required for the work
1
1
2
3
