18

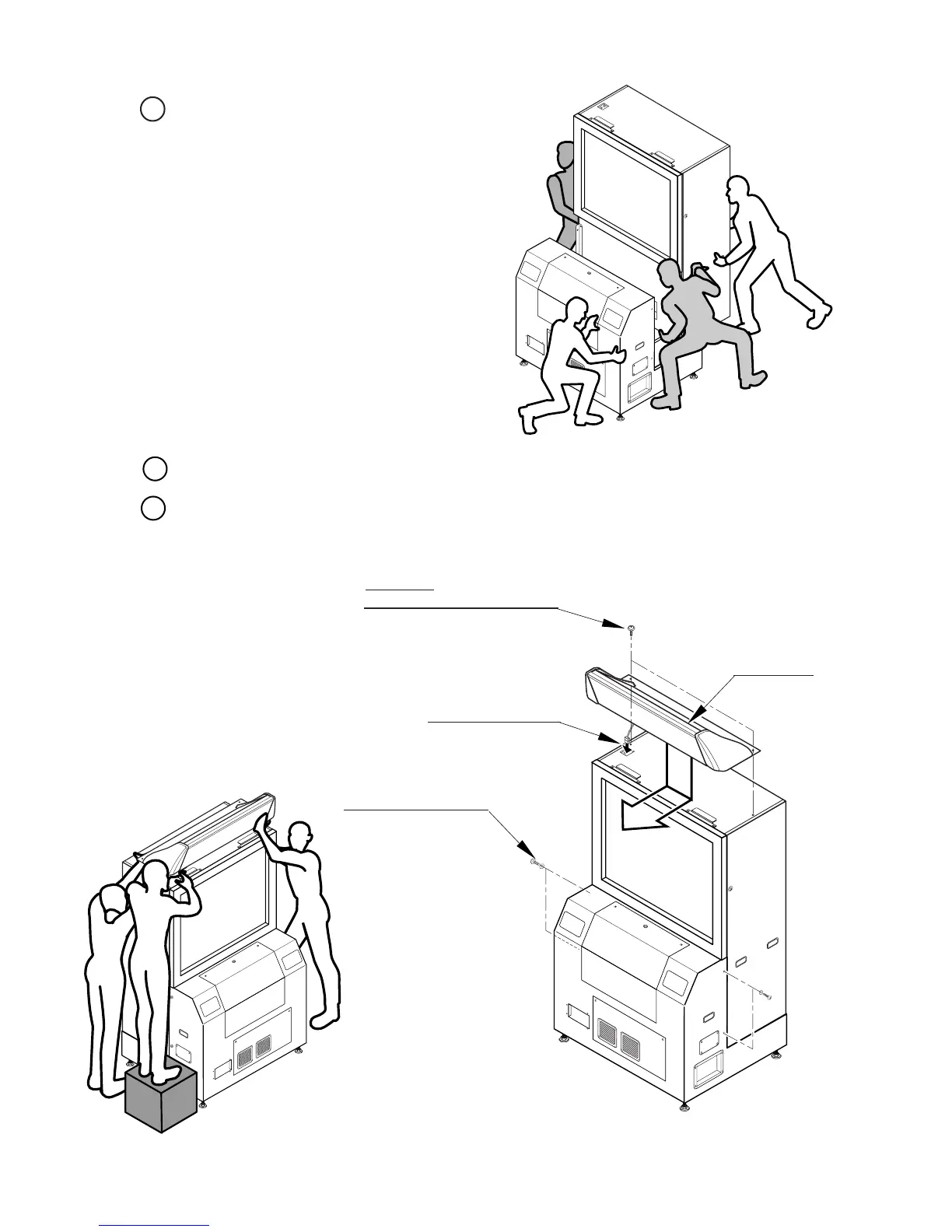

Mount the PTV onto the Front Cabinet.
When performing this work, be sure to
use 4 or more persons.
FIG. 6. 1 b
Fix between the PTV and the Front Cabinet on the Cabinet's both sides with 2 screws for each.
While supporting the Billboard by 2 persons, another person using a step is to connect the
Billboard wire connector into the terminal board of the PTV top panel.
TRUSS SCREW (2 each)
M5 X 30,flat washer used.
Connect the Connector.
SCREW (2)
M5 X 16,w/flat & spring washers
BILLBOARD
FIG. 6. 1 c
FIG. 6. 1 d
When performing this work, be sure to use 2 or
more persons and be sure to use a step.
4
5
6
To Next Page
