132

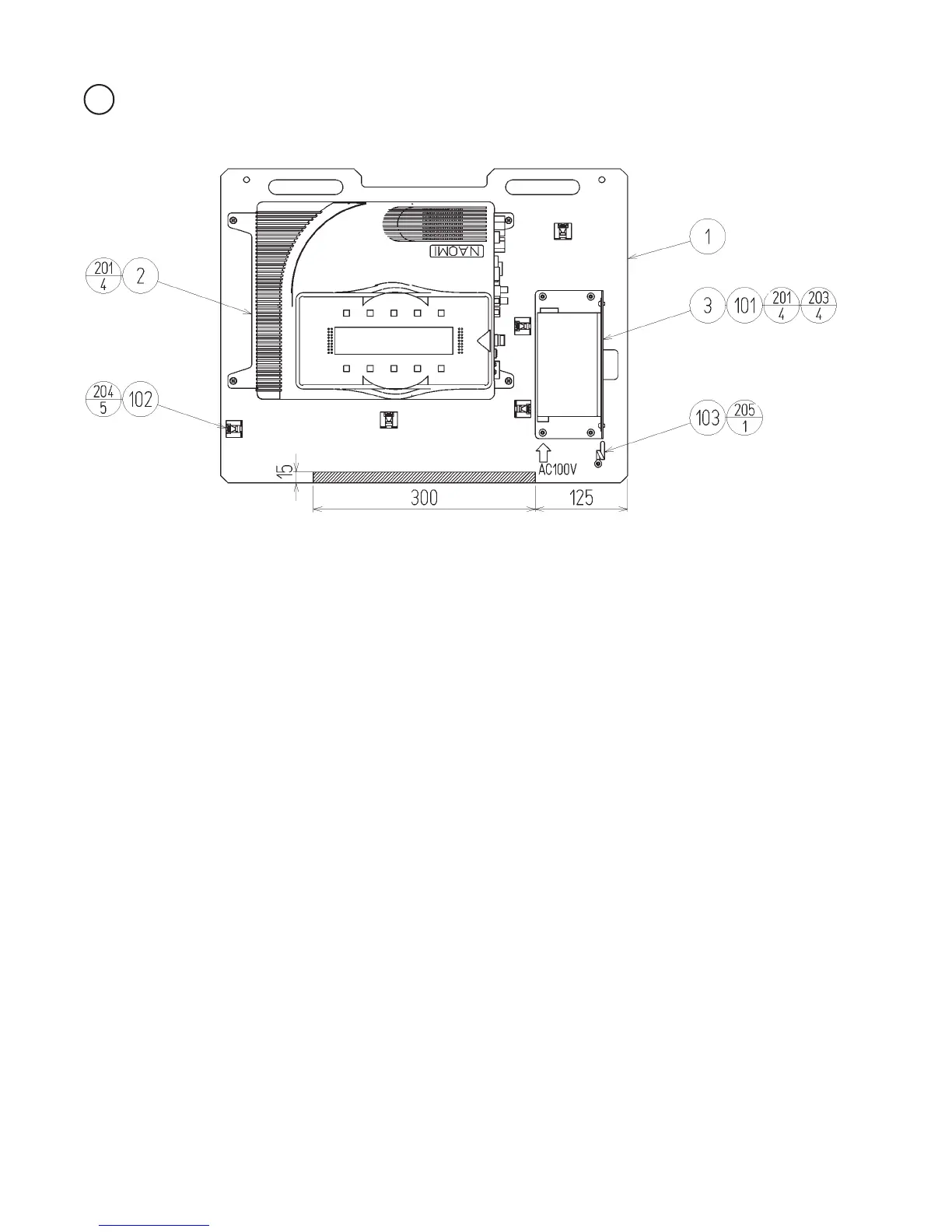

ITEM NO. PART NO. DESCRIPTION NOTE
1 WRG-4001 WOODEN BASE MAIN BD
2 840-0064D-01 ASSY CASE NAO WRG USA USA
840-0064D-02 ASSY CASE NAO WRG EXP OTHERS
840-0064D-03 ASSY CASE NAO WRG KOR KOREA
840-0064D-04 ASSY CASE NAO WRG AUS AUSTRALIA
3 TMB-4003 SW REGU BRKT
101 400-5397-01 SW REGU FOR JVS VA
102 280-5277 CORD CLAMP 18
103 280-0419 HARNESS LUG
104 601-0460 PLASTIC TIE BELT 100 MM
201 000-P00416-W M SCR PH W/FS M4 X 16
203 000-P00406-W M SCR PH W/FS M4 X 6
204 011-F00312 TAP SCR #1 FH 3 X 12
205 011-T03512 TAP SCR TH 3.5 X 12
301 WRG-60009 WH NAOMI SW REGU AC
302 WRG-60010 WH NAOMI SW REGU DC
303 WRG-60011 WH NAOMI AUDIO
304 600-7141-050 CABLE JVS TYPE A-B 050CM
305 600-7159-020 WIRE HARN JVS PWR 020CM
12 ASSY MAIN BD (WRG-4000)
NOTE : MAKE SURE THAT THERE IS NO WIRING, ETC.
IN THE SLASH MARK PORTIONS.
To Next Page
