168

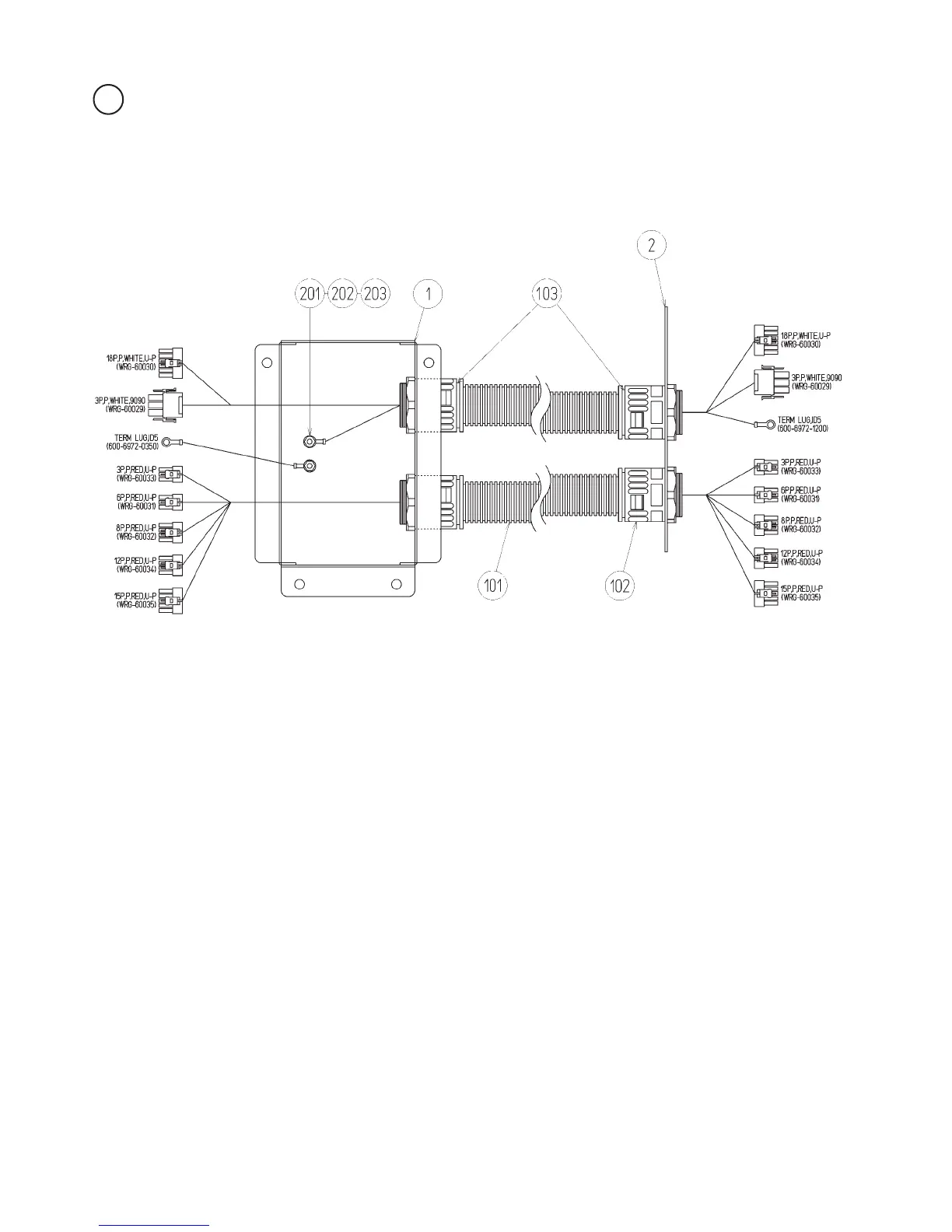

34 ASSY WIRE TUBE (WRG-6001)
ITEM NO. PART NO. DESCRIPTION NOTE
1 WRG-0001 TUBE BRKT FRONT
2 WRG-0002 TUBE BRKT REAR
101 310-5285-290060 FLEX TUBE 29-0060CM
102 310-5286-29 CONN 29
103 601-10360-29 STOPPER RING 29
201 050-H00400 HEX NUT M4
202 060-F00400 FLT WSHR M4
203 060-S00400 SPR WSHR M4
301 WRG-60029 WH EXT COMP T
302 WRG-60030 WH EXT VALVE T
303 WRG-60031 WH EXT ETR T
304 WRG-60032 WH EXT VR T
305 WRG-60033 WH EXT SOUND VR T
306 WRG-60034 WH EXT COINCHUTE T
307 WRG-60035 WH EXT I/O T
308 600-6972-0350 WIRE HARN EARTH ID5 0350MM
309 600-6972-1200 WIRE HARN EARTH ID5 1200MM
To Next Page
