75

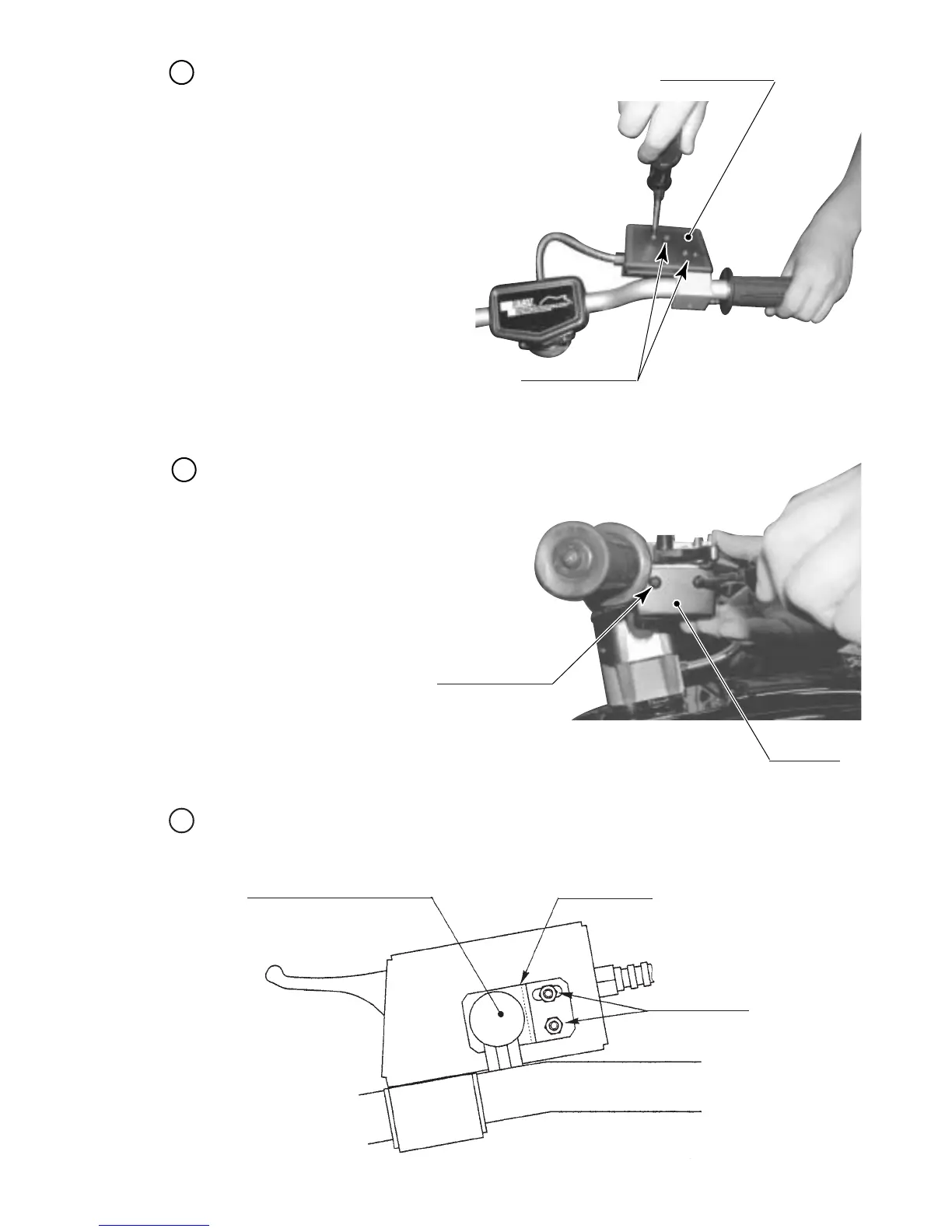

Take out a total of 4 Truss Screws to
remove ACCEL. COVER A.
Take out 2 Truss Screws to remove the VR Cover.
PHOTO 12. 1 b
ACCEL. COVER A
TRUSS SCREW (4)
M4 X 6
PHOTO 12. 1 c
VR COVER
TRUSS SCREW (2)
M4 X 8
Loosen the 2 Nuts which secure the Volume Bracket to move the Volume Bracket. (FIG. 12. 1).
VOLUME220-5373 or 220-5484
V.R. BRACKET
HEXAGON NUT
M 4
FIG. 12. 1
2
3
4
