SELCO A/S M2500 Installation Manual
Revision: 23-04-2012 Page 11
4.2.7 COM (terminal 13)
The COM is the common reference for all digital inputs.COM and power supply minus are
internally connected.
4.3 Speed detection
Speed detection
Remark
14
Pick-up
Supply voltage for PNP or NPN pick-up
15
Pick-Up signal input
16
Reference for pick-up signal

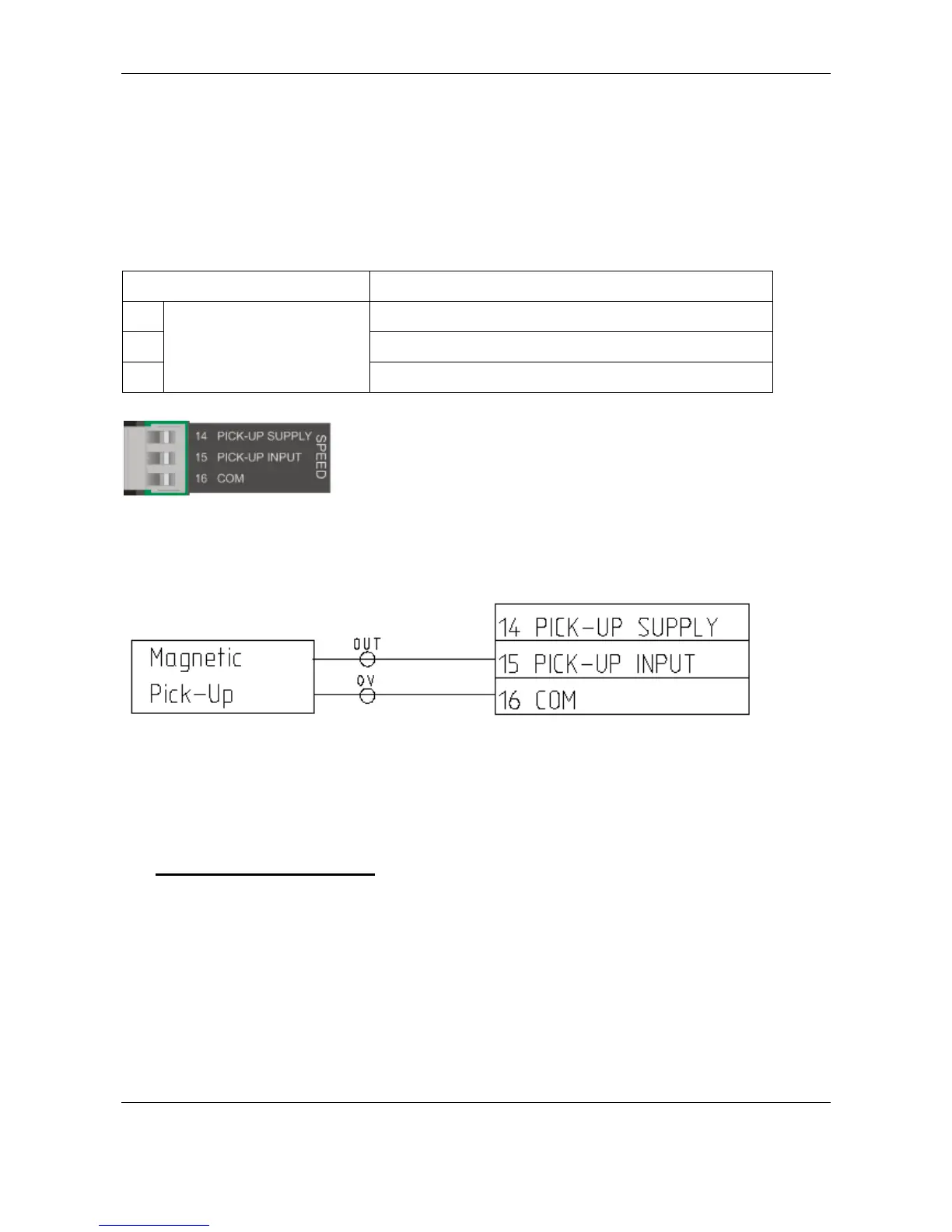

4.3.1 Connection of magnetic pick-up
The magnetic pick-up is connected as follows:
For use of magnetic pick-up the DIP switches 3 and 4 on the rear side of M2500 must be in OFF
position. The DIP switches are placed between the RS485 and CAN connectors on the rear side of
M2500.
DIP Switch Position
1 OFF
2 OFF
