Selco M2500 - Terminal Connections

SELCO A/S M2500 Installation Manual
Revision: 23-04-2012 Page 6

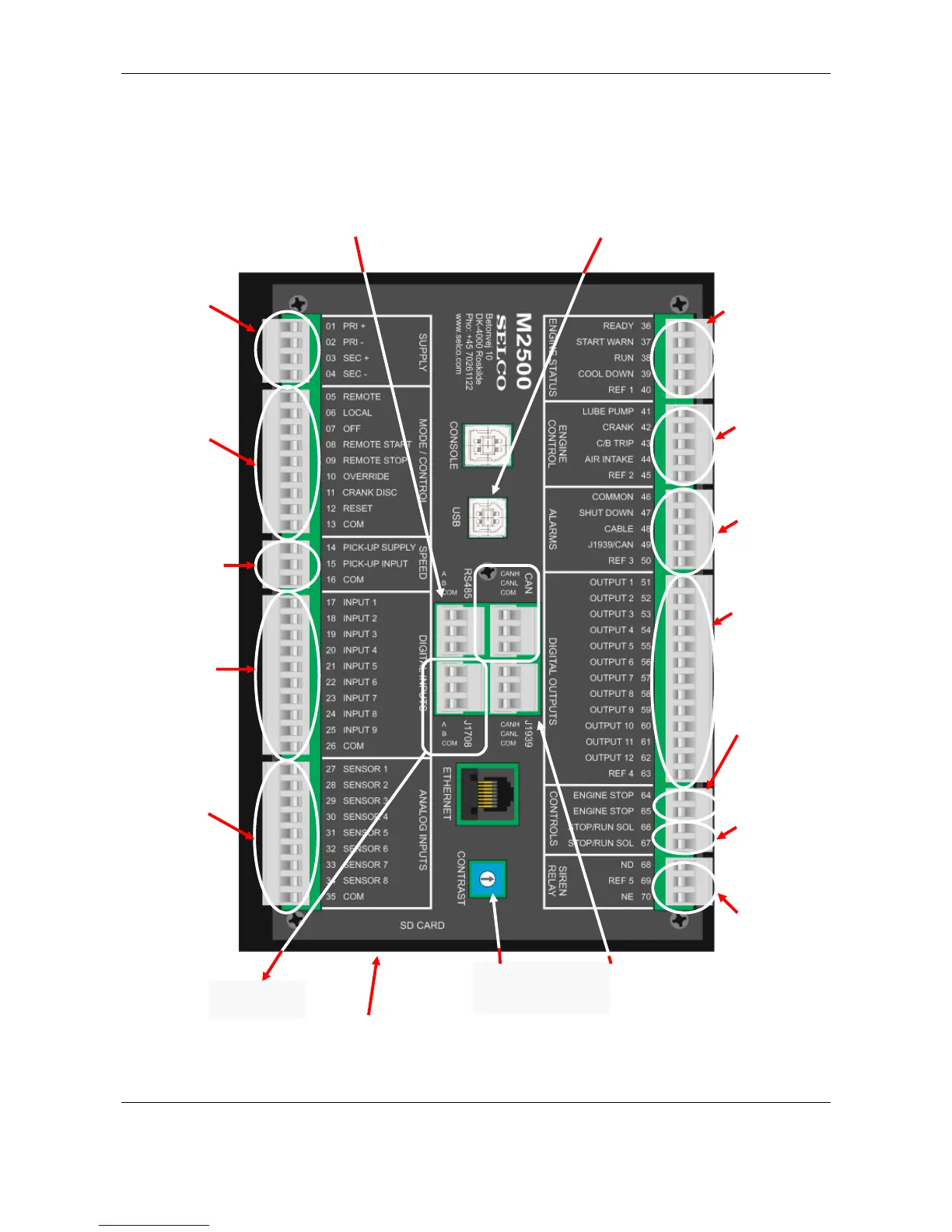

3 Terminal Connections
Primary and
back-up
power supply
Inputs for
activation of
operation
modes,
Inputs for
remote start and
stop
Input for
magnetic, NPN
or PNP pick-
up for speed
detection
Digital sensor
inputs for
alarms and
shutdowns
Analogue
sensor inputs
for alarms and
shutdowns
Outputs for
indication of
engine state
(e.g. to PMS)
Control
outputs
Common
alarm outputs
Programmable
outputs for
indication of
alarms and
shutdowns
Engine stop
relay
Programmable
output for stop
or run
solenoid with
cable
monitoring
Siren relay
RS485 Modbus
Adjustment of
display contrast
Interface for
CANJ1939
Slot for SD card for read out
of log and configuration
USB interface for
configuration and
read out of alarm log
Future use
