5 Outputs
All outputs are relay contacts.
5.1 Engine Status Outputs
Nr.
Description
Type
Rating
36
Ready/ Not Ready
NO Relay
1A
37
Start warning
NO Relay
1A
38
Engine Running
NO Relay
1A
39
Cool down
NO Relay
1A
40
REF1
Common reference for engine status outputs
5.1.1 Connection of Engine Status Outputs

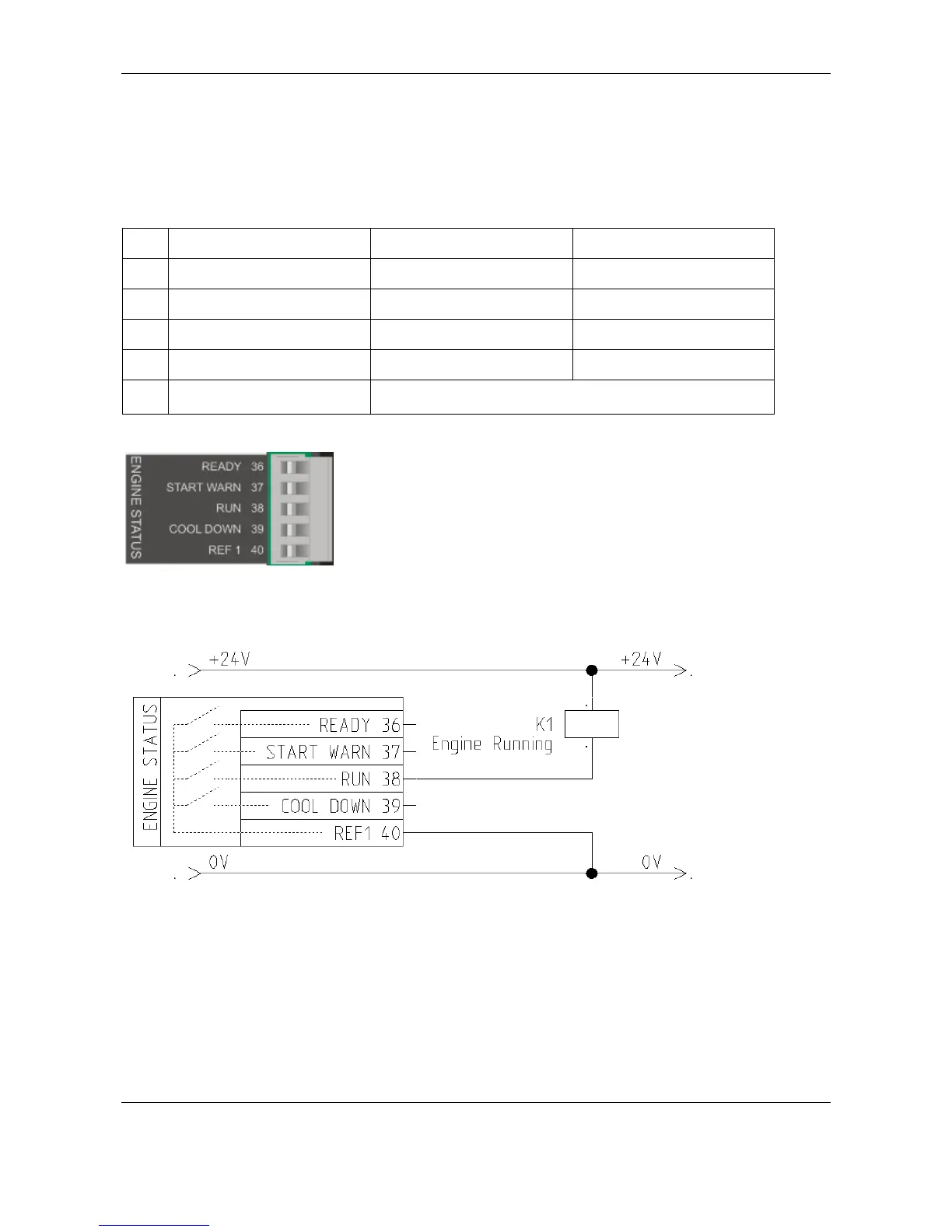

Following example shows the connection of an external relay for the engine running signal:
