SELCO A/S M2500 Installation Manual
Revision: 23-04-2012 Page 9

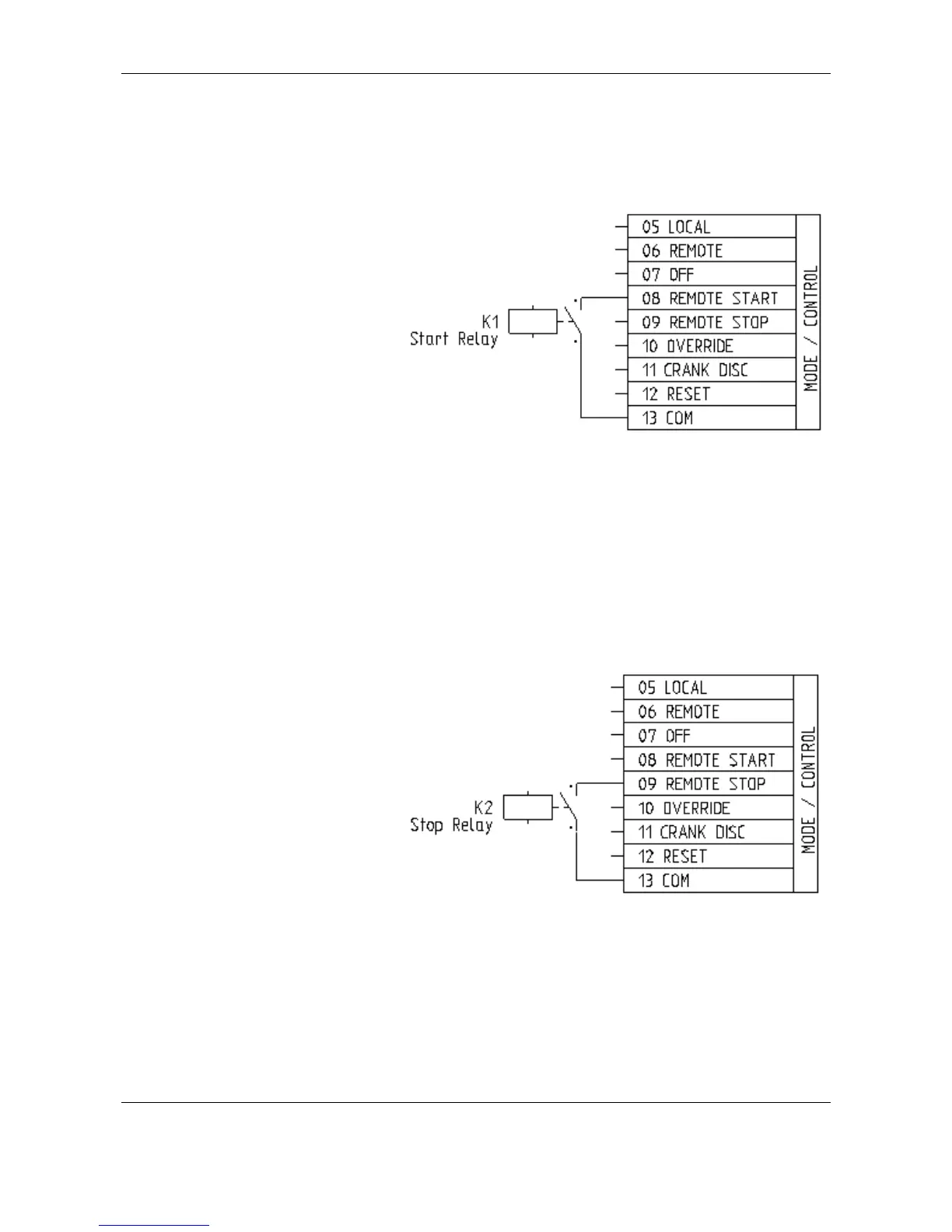

4.2.2 Remote Start (terminal 8)
The Remote Start input is considered active when connected to COM, inactive when open. It can be
a pulse or continuous signal.
The input is only enabled in remote
mode.
When activated, the M2500 will
generate a start signal to the engine.
The pre-configured number of start
attempts is available. During the start
attempt the green Engine Running
LED on the front panel will be fast
flashing. During the rest periods
between start attempts this LED will
be slow flashing. When the engine is
running, the LED will be lit continuously.
If the engine does not start the M2500 will initiate a stop procedure and a Start Fail Alarm. The red
ALARM LED on the front panel will be lit. The alarm text “START FAILURE” will be shown on
the display.
4.2.3 Remote Stop (terminal 9)
The Remote Stop input is considered active when connected to COM, inactive when open. It can be
a pulse or a continuous signal.
The input is only enabled in remote
mode.
When activated, the M2500 will
initiate a stop procedure. During the
stop procedure the green Running
LED will be slow flashing. The
Stopping LED will be lit. If the
engine does not stop the M2500 will
generate a Stop Fail Alarm. The red
ALARM LED on the front panel will
be lit. The alarm text “STOP
FAILURE” will be shown on the
display.
The engine will be blocked for start as long as the stop input is active. When activated
simultaneously, Stop overrides Start.
