SELCO A/S
M2500 Installation Manual
Revision:
23
-
04
-2012

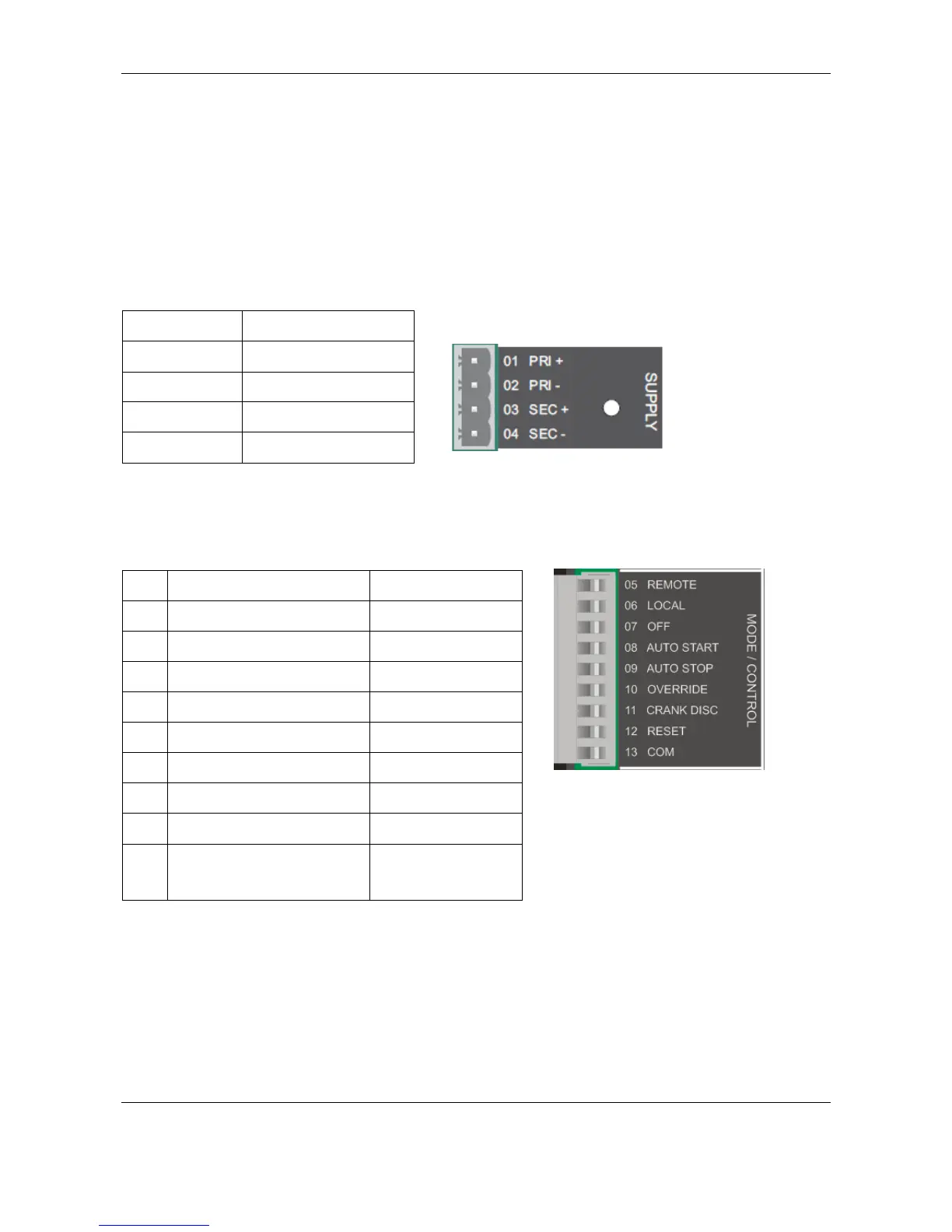

Page 7
4
Inputs
4.1
Power Supply
Redundant Power Supply (2x 24V DC, -30 % / +30 %)
Alarm in case any power supply fails (common alarm + display text).
Primary supply will not be monitored during cranking, as the battery voltage will drop during this
process.
Nr.
Description
01
Primary Supply
+
02
Primary Supply
-
03
Primary Supply
+
04
Primary Supply
-
4.2
Mode/ Control In
puts
Nr.
Description
Logic (NO/NC
)
05
Remote M
ode
NO
06
Local Mod
e
NO
07
Off Mode
NO
08
Remote Start
NO
09
Remote Stop
NO
10
Override
NO
11
Crank disconnect
NO
12
Reset
NO
13
COM
Common
reference for
control inputs
6
8
Table of Contents
Default Chapter
2
Table of Contents
2
1 Preface
4
2 Installation
5
3 Terminal Connections
6
4 Inputs
7
Power Supply
7
Mode/ Control Inputs
7
Connection of Mode Selector Switch
8
Remote Start (Terminal 8)
9
Remote Stop (Terminal 9)
9
Override (Terminal 10)
10
Crank Disconnect (Terminal 11)
10
Reset (Terminal 12)
10
COM (Terminal 13)
11
Speed Detection
11
Connection of Magnetic Pick-Up
11
Connection of PNP Pick-Up
12
Connection of NPN Pick-Up
12
Digital Sensor Inputs
13
Connection of a Normally Open Sensor Without Cable Monitoring
13
Connection of a Normally Closed Sensor Without Cable Monitoring
14
Connection of a Normally Open Sensor with Cable Monitoring
14
Connection of a Normally Closed Sensor with Cable Monitoring
15
COM (Terminal 13)
15
Analogue Sensor Inputs
15
Analogue Inputs (Terminals 27 to 34)
16
COM (Terminal 13)
16
5 Outputs
17
Engine Status Outputs
17
Connection of Engine Status Outputs
17
Ready (Terminal 36)
18
Start Warning (Terminal 37)
18
Engine Running (Terminal 38)
18
Cool down (Terminal 39)
18
REF 1 (Terminal 40)
18
Engine Control Outputs
19
Connection of Engine Control Outputs
19
Auxiliary Lubrication Pump (Terminal 41)
19
Crank (Terminal 42)
20
C/B Trip (Terminal 43)
20
Air Intake Valve (Terminal 44)
20
REF 2 (Terminal 45)
20
Alarm Outputs
20
Connection of Alarm Outputs
21
Common Alarm (Terminal 46)
21
Shutdown (Terminal 47)
21
Cable Break (Terminal 48)
21
CAN (Terminal 49)
21
REF3 (Terminal 50)
21
Digital Outputs
22
Connection of Digital Outputs
22
Digital Outputs out 1 to out 12 (Terminals 51 to 62)
23
REF 4 (Terminal 50)
23
Control Relays
23
Engine Stop Output (Terminal 64 and 65)
23
Run/ Stop Solenoid (Terminal 66 and 67)
24
Siren Relay
26
Connection of the Siren Relay
26
6 Communication
27
CAN J1939 Bus
27
CAN J1939 Connector
27
CAN Cable
27
Rs485 Modbus
28
RS485 Cable
28
7 Functional Description
29
Remote Mode
29
Alarm Monitoring
31
Alarm Flowchart
32
Shutdown Monitoring
33
Shutdown Flowchart
34
Specification
35
