SELCO A/S M2500 Installation Manual
Revision: 23-04-2012 Page 22
5.4 Digital Outputs
Nr.
Description
Type
Rating
51
Digital Output 1
(start fail in default config)
NO Relay
1A
52
Digital Output 2
(stop fail in default config)
NO Relay
1A
53
Digital Output 3
NO Relay
1A
54
Digital Output 4
NO Relay
1A
55
Digital Output 5
NO Relay
1A
56
Digital Output 6
NO Relay
1A
57
Digital Output 7
NO Relay
1A
58
Digital Output 8
NO Relay
1A
59
Digital Output 9
NO Relay
1A
60
Digital Output 10
NO Relay
1A
61
Digital Output 11
NO Relay
1A
62
Digital Output 12
NO Relay
1A
63
REF 4
Common reference for
the digital outputs

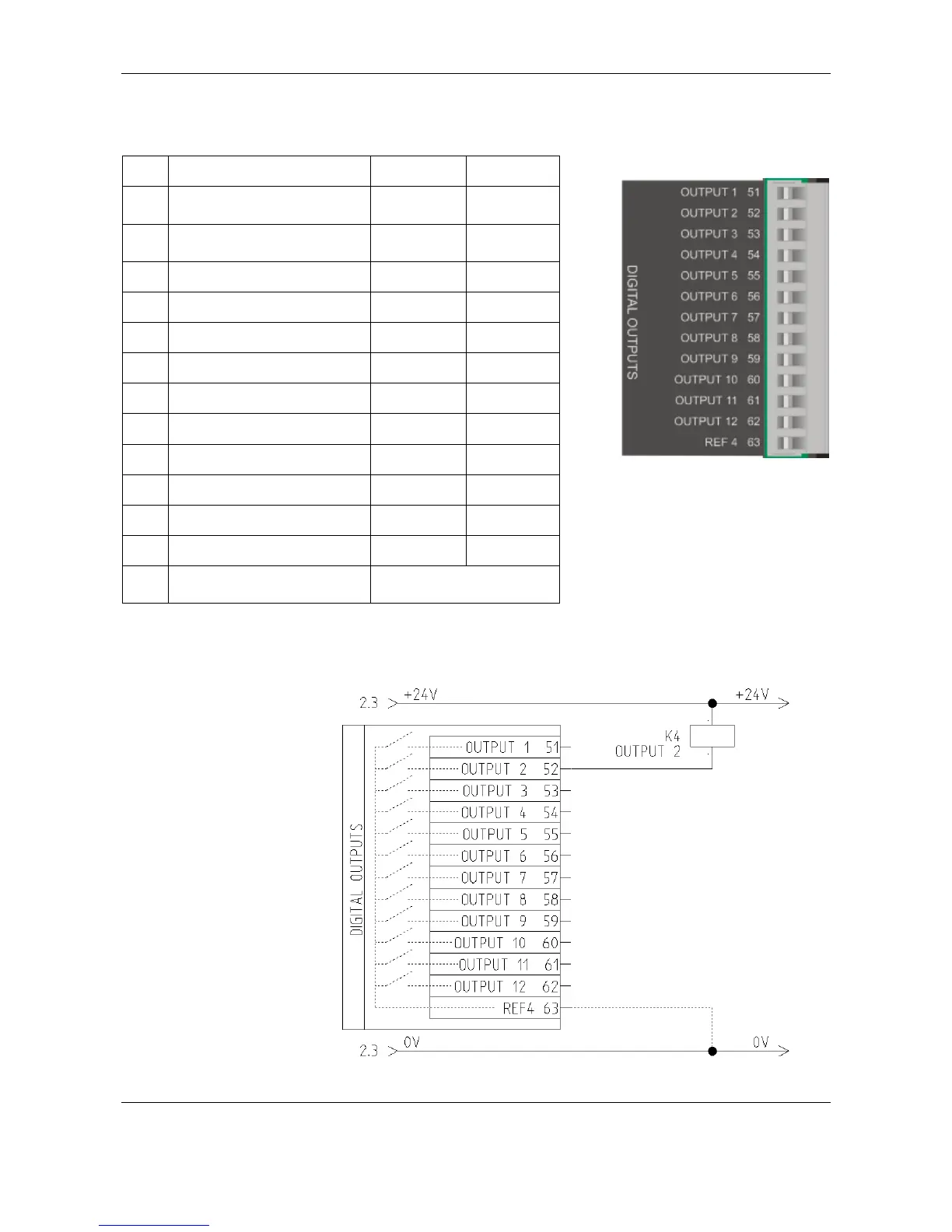

5.4.1 Connection of digital outputs
Following example shows
the connection of an
external relay to digital
output 2:
