SELFSAT SNIPE AIR User Manual

ENGLISH - 16
8. Specications

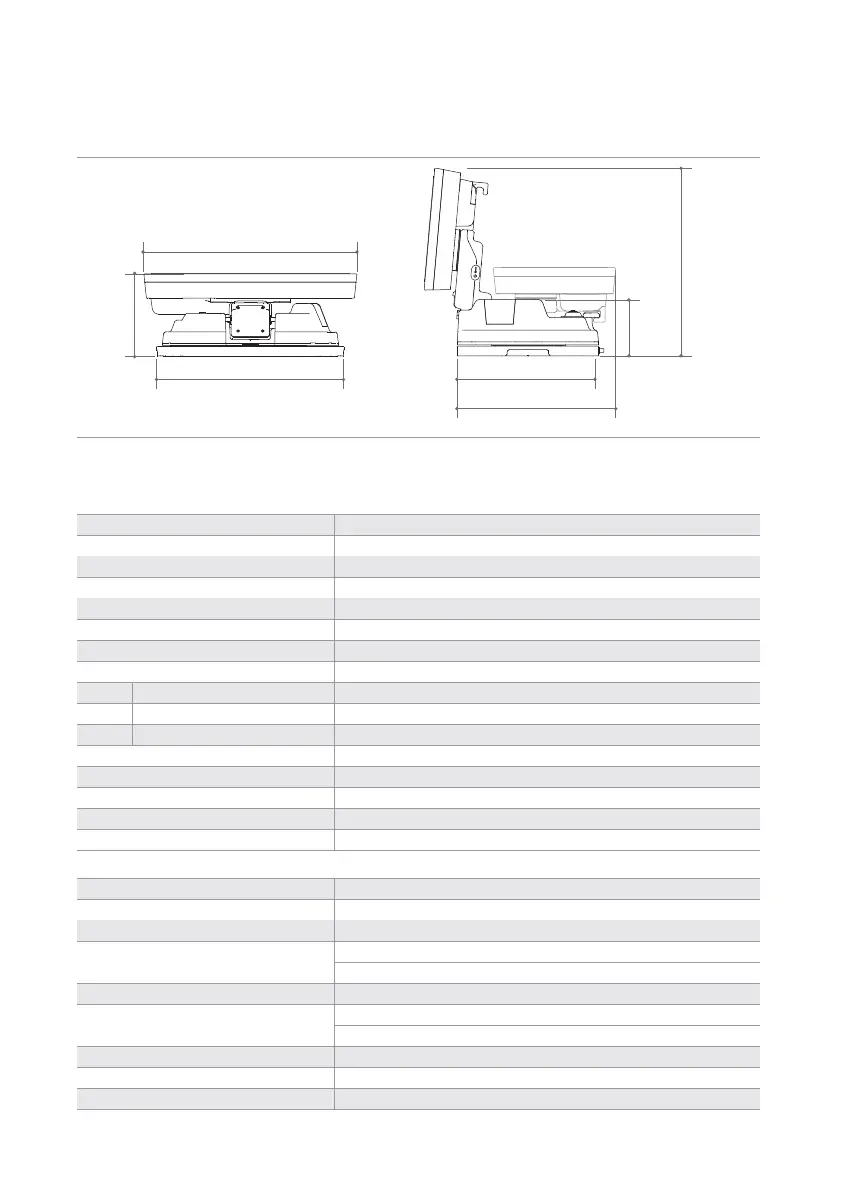

8-1. Dimension
Input Satellite Frequency
Polarization
Antenna Gain
Size ( W x D x H )
Weight
Min EIRP
Angle Range (Elevation , Azimuth , Skew)
Satellite Searching Time
Output
LNB Output Frequency
L.O. Frequency
Operating Temperature
Input Voltage
Power Consumption
Wirelessly Operating Channels
Wireless connection
10.7 ~ 12.75 GHz
Vertical & Horizontal
33.7 dBi @ 12.7 GHz
515 × 355 × 192 mm
12.5 kg
50 dBW
15°~90° , 360° , -45°~+45°
120 seconds (AVG)
1 Legacy
950 ~ 2,150 MHz
9.75 / 10.6 GHz
-30 °C ~ +60 °C
DC 12 ~ 24 V
100 W (in searching)
8 channels at the same time
IEEE 802.11 AC compliance
454mm
515mm
316mm
355mm
MAX 426mm
MIN 192mm
126mm
192mm
8-2. Specications
a. Antenna
CPU
Flash / DRAM
Wired LAN Interface
Wireless LAN Interface
Frequency Band
Antenna
Operation / Storage Temp.
Operation / Storage Humidity.
Special Function
RTL8197DN + RTL8192ER + RTL8812AR
8MB (SPI Serial Nor Flash) / 8MB (SPI Serial Nor Flash)
10/100/1000 Base-T Port 2ea
2.4G : 802.11b/g/n (2T/2R) , MAX 300Mbps
5G : 802.11a/n/ac (2T/2R) , MAX 867Mbps
5 GHz/2.4 GHz (20 / 40 / 80 MHz Bandwidth Channel bonding)
2.4G : 4dBi Dipole 2ea MIMO Technology
5G : 5dBi Dipole 2ea MIMO Technology
0°C ~ 40°C (operating) / 0°C ~ 50°C (Storage)
80% (operating) / 90% (Storage)
P.S.E ( Power Sourcing Equipment, supported 802.11at )
b. Router (Embedded in controller)

SELFSAT SNIPE AIR Specifications

General

Gain	33.7 dBi
Polarization	Horizontal/Vertical polarization
Elevation angle range	-15 - 90 °
Input frequency range	10.7 - 12.75 GHz
Output frequency range	950 - 2150 MHz
Product color	White
Operating temperature (T-T)	-20 - 60 °C
Quantity	1

Weight and Dimensions

Depth	192 mm
Width	515 mm
Height	355 mm
Weight	10900 g
