SELFSAT SNIPE AIR User Manual

DUTCH - 5

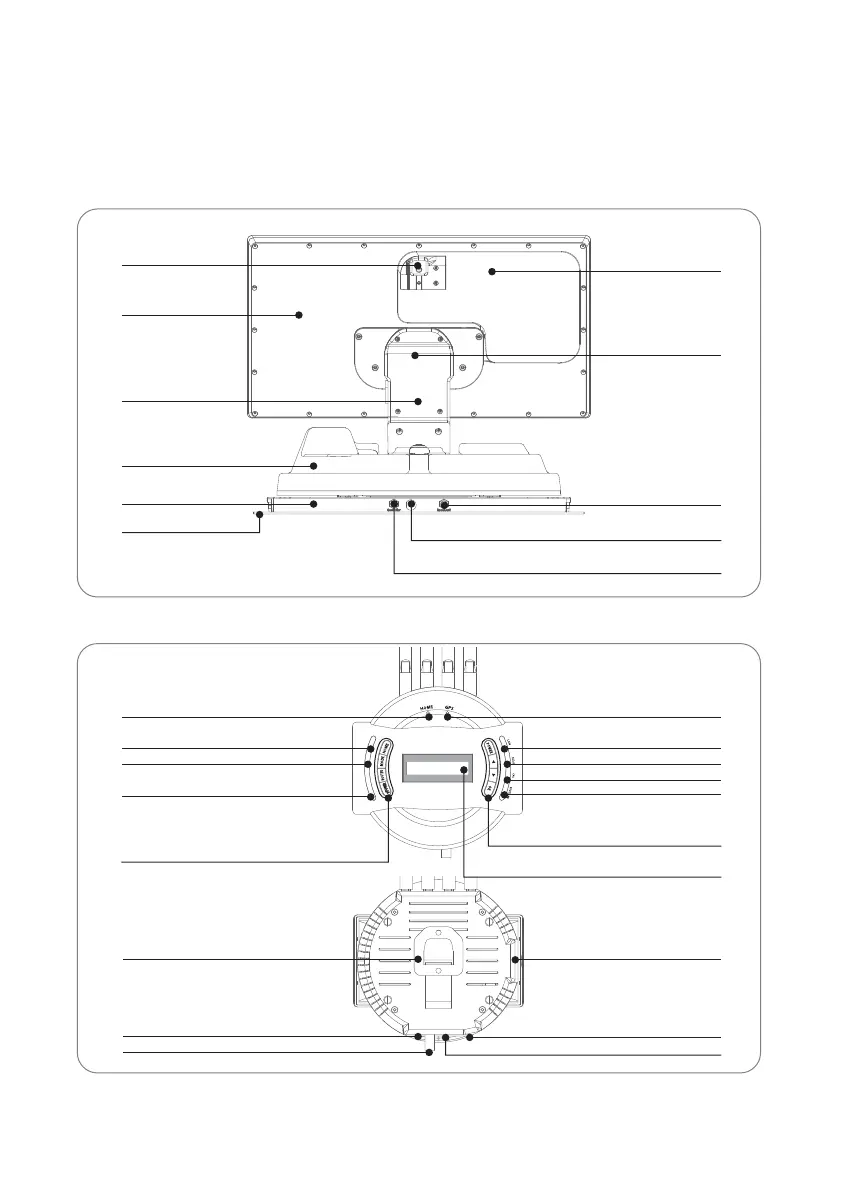

2-2. Naam van onderdelen
Hoofdunit
Grendel
Antenne
Elevatie
Basisdeel
Bodemplaat
Montageplaat
LNB & SAT>IP SERVER
Skew pivot
Naar de satelliet ontvanger
Naar de SAT>IP Poort
Naar de bediening
Bediening
HOME LED
Communicatie LED
NID check LED
Foutbericht LED
HOME, MODE, SET, TUNE – knop
Beugel voor Bediening
Stroomingang
Naar hoofdunit
GPS LED
LAN LED
SAT>IP LED
CPU LED
ROUTER aan/uit LED
(ROUTER PW LED)
POWER, pijlen, OK – knop
LCD scherm
Ex LAN Poort
USB poort
SAT>IP Poort

SELFSAT SNIPE AIR Specifications

General

Gain	33.7 dBi
Polarization	Horizontal/Vertical polarization
Elevation angle range	-15 - 90 °
Input frequency range	10.7 - 12.75 GHz
Output frequency range	950 - 2150 MHz
Product color	White
Operating temperature (T-T)	-20 - 60 °C
Quantity	1

Weight and Dimensions

Depth	192 mm
Width	515 mm
Height	355 mm
Weight	10900 g
