SELFSAT SNIPE AIR User Manual

ENGLISH - 5

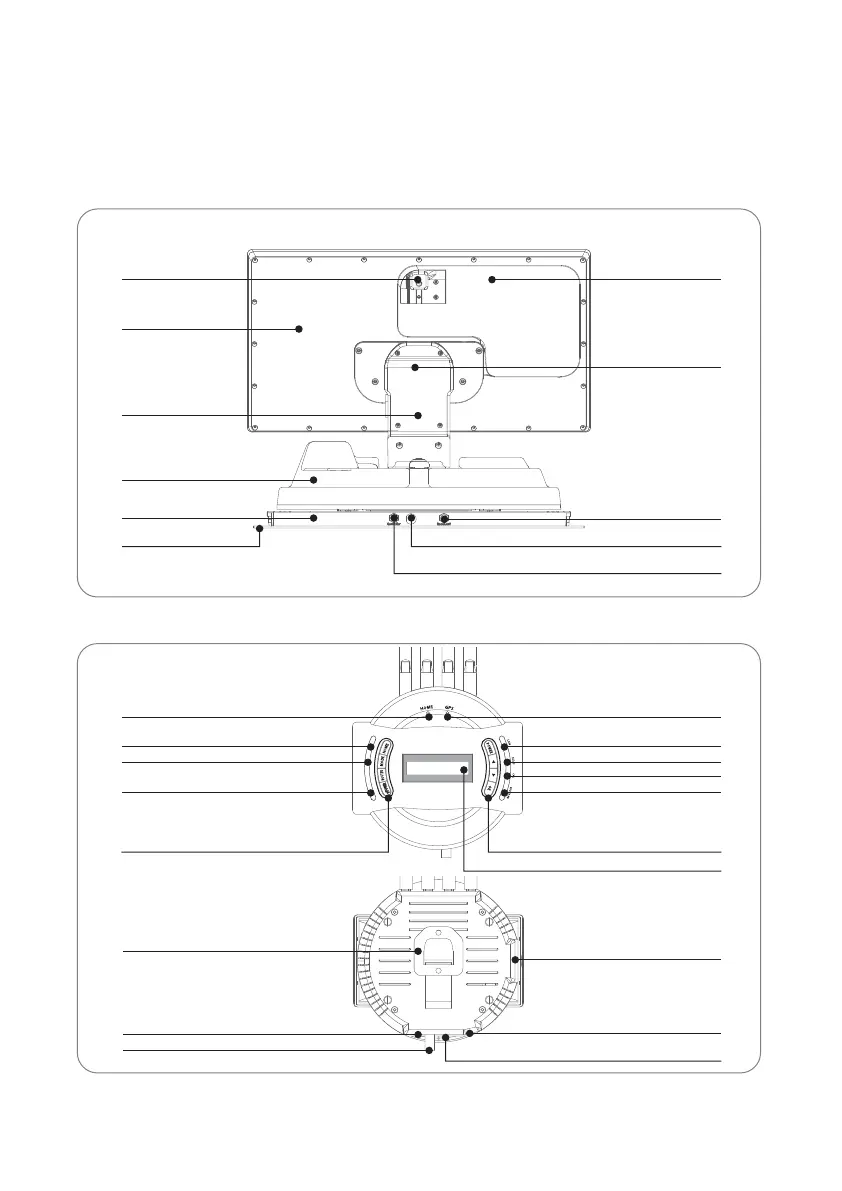

2-2. Name of parts
Main unit
Latch
Antenna
LNB & SAT>IP server
Skew pivot
to Receiver
SAT>IP port
to Controller
Elevation
Main body
Base
Mounting plate
Controller
Bracket
Power port
Ex LAN port
USB port
SAT>IP port
to Main unit
POWER , Arrows , OK button
LCD screen
HOME LED
Communication LED
NID check LED
Error message LED
LAN LED
SAT>IP LED
CPU LED
ROUTER PW LED
GPS LED
HOME , MODE , ROUTER , TUNE button

SELFSAT SNIPE AIR Specifications

General

Gain	33.7 dBi
Polarization	Horizontal/Vertical polarization
Elevation angle range	-15 - 90 °
Input frequency range	10.7 - 12.75 GHz
Output frequency range	950 - 2150 MHz
Product color	White
Operating temperature (T-T)	-20 - 60 °C
Quantity	1

Weight and Dimensions

Depth	192 mm
Width	515 mm
Height	355 mm
Weight	10900 g
