SELFSAT SNIPE AIR User Manual

ENGLISH - 18
※ Mounting plate direction
Silicone
SAT>IP LAN cable
Receiver cables
Allen wrench
Controller bracket
Controller cable
Controller
Friction tape
M6 × 15(8) , M4 × 16(2) , M4 ×20(10)
Mounting plate
Cigarette lighter adaptor (Power input cable)
Cleaner
Power drill
2mm drill bit, over 20mm drill bit
Cable holder & gland
9-2. Equipment for installation
9-3. Instruction for installation

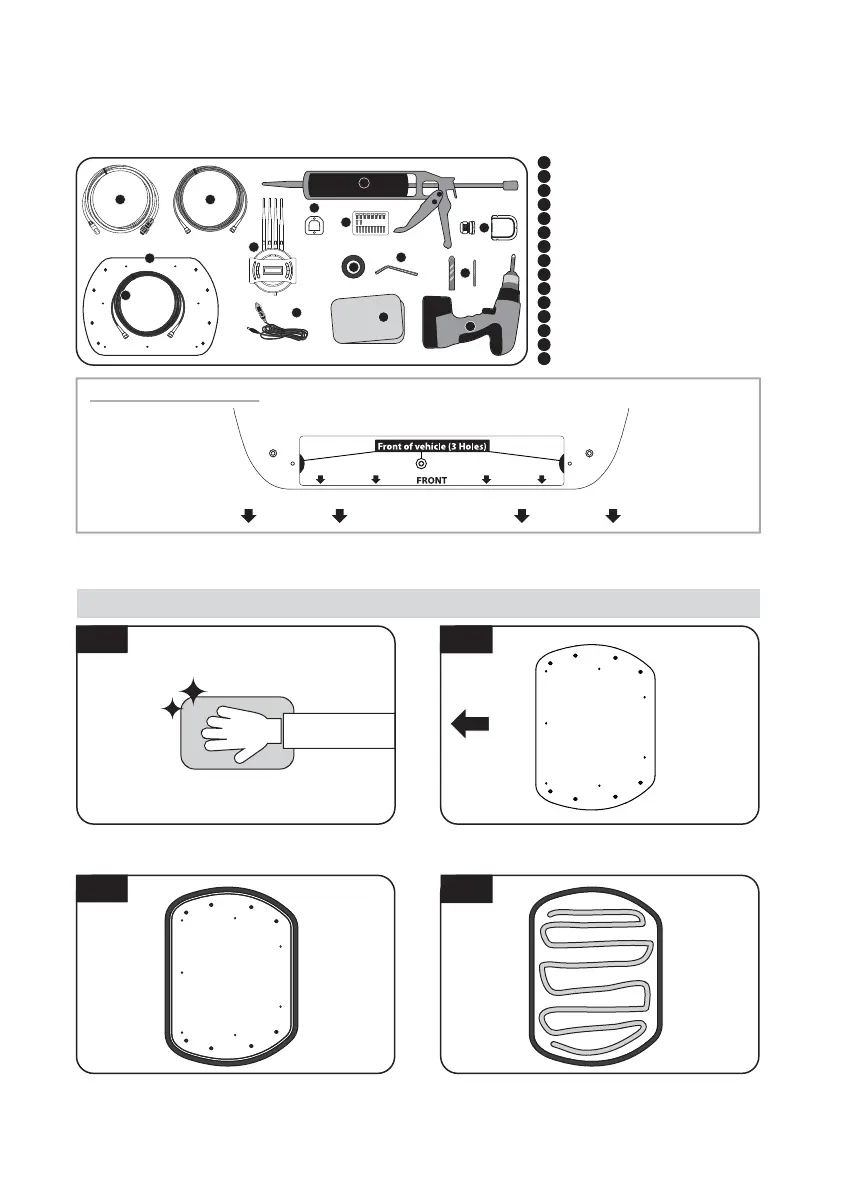

A. Mounting plate installation on a vehicle roof
1
4
32
5
7
8
11
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
9
13
14
15
Put aside the mounting plate to apply silicone
within the attached tape line but leave 2cm
inward gap from the line
Attach friction tape outside of the mounting
plate by 5mm away from the plate edges
A-4
A-2
FRONT
Clean the surface with cleaner
A-3
A-1
Locate mounting plate in the center of the
vehicle roof
6
10
Driving direction

SELFSAT SNIPE AIR Specifications

General

Gain	33.7 dBi
Polarization	Horizontal/Vertical polarization
Elevation angle range	-15 - 90 °
Input frequency range	10.7 - 12.75 GHz
Output frequency range	950 - 2150 MHz
Product color	White
Operating temperature (T-T)	-20 - 60 °C
Quantity	1

Weight and Dimensions

Depth	192 mm
Width	515 mm
Height	355 mm
Weight	10900 g
