SELFSAT SNIPE AIR User Manual

ENGLISH - 6
In order to watch the broadcast in Smart devices must be dedicated programs
or application.
Please visit http://Satip.info for more information.
NOTE
3. Operating Instruction

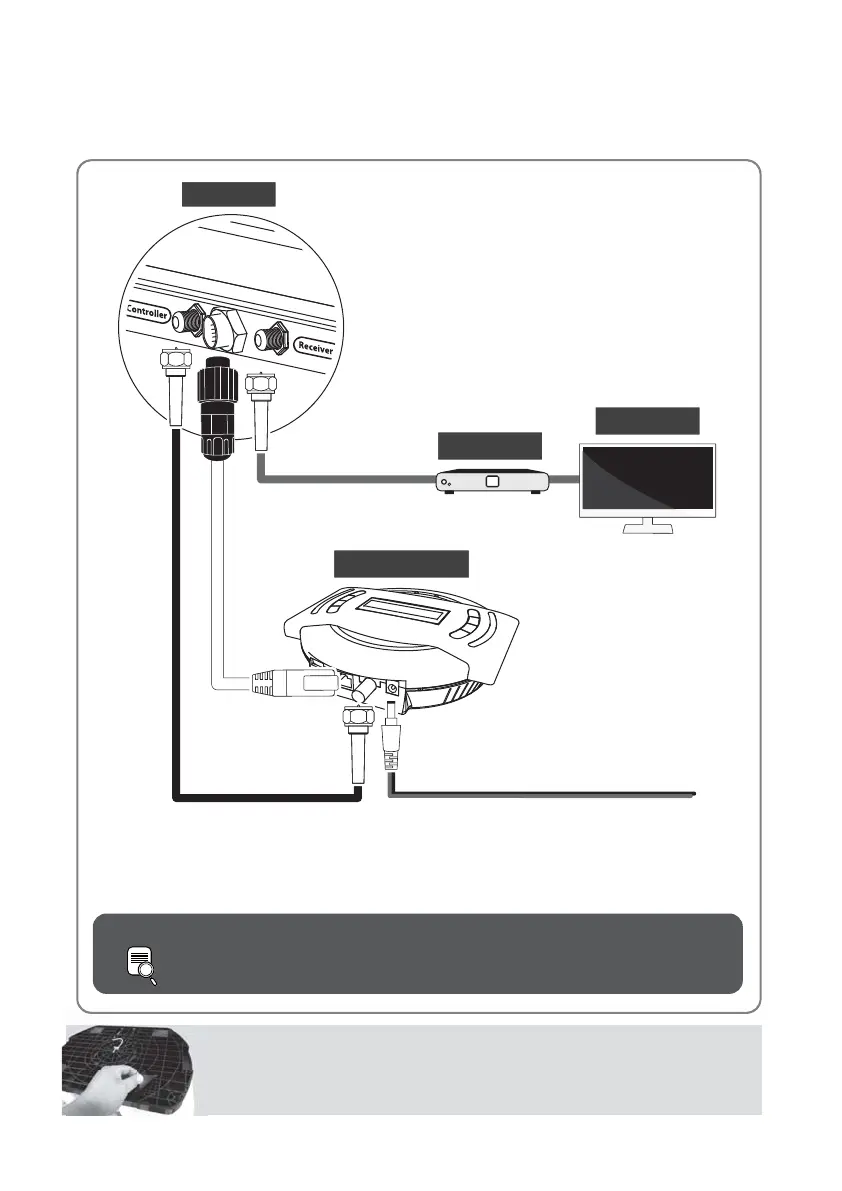

3-1. Connection diagram
Portable use
Attach four(4) base pads to the bottom of antenna base.
Cigarette lighter adaptor or Power input cable
Receiver cable
(Grey color)
Controller cable (Black color)
SAT>IP LAN cable
MAIN UNIT
RECEIVER
TV
CONTROLLER
Use black controller cable to connect the antenna to the controller.
Controller cable looks similar to the receiver cable but has dierent color and
labeling. Please check the labels to use the correct cable for the job.
Please ensure the cables that are supplied are used and not modied in anyway.

SELFSAT SNIPE AIR Specifications

General

Gain	33.7 dBi
Polarization	Horizontal/Vertical polarization
Elevation angle range	-15 - 90 °
Input frequency range	10.7 - 12.75 GHz
Output frequency range	950 - 2150 MHz
Product color	White
Operating temperature (T-T)	-20 - 60 °C
Quantity	1

Weight and Dimensions

Depth	192 mm
Width	515 mm
Height	355 mm
Weight	10900 g
