SELFSAT SNIPE AIR User Manual

ENGLISH - 21
F-2

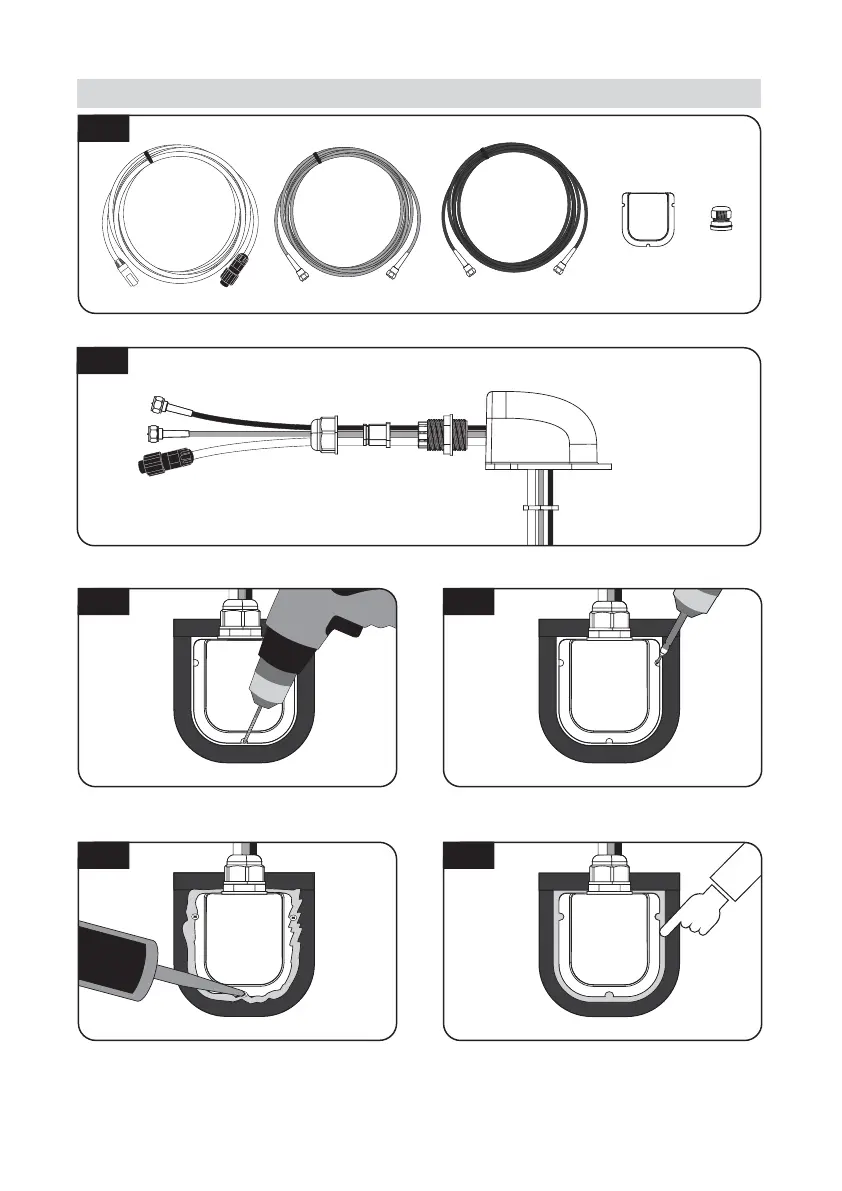

SAT>IP LAN cable, controller cable, receiver cable, cable holder and gland are required
Place the assembled cable holder inside the tape
marking and drill three(3) of 2mm holes
Fix cable holder on the vehicle roof with
three(3) of M4 x 20 screws on drill holes made
F-4F-3
Apply silicone around cable holder and on the
top of screws for waterproof
Connect cables to the ports of the antenna ,
remove friction tape and tidy silicone before dry
F-6F-5
F-1
Set up required parts as above picture
F. Cable holder installation 2

SELFSAT SNIPE AIR Specifications

General

Gain	33.7 dBi
Polarization	Horizontal/Vertical polarization
Elevation angle range	-15 - 90 °
Input frequency range	10.7 - 12.75 GHz
Output frequency range	950 - 2150 MHz
Product color	White
Operating temperature (T-T)	-20 - 60 °C
Quantity	1

Weight and Dimensions

Depth	192 mm
Width	515 mm
Height	355 mm
Weight	10900 g
