SELFSAT SNIPE AIR User Manual

GERMAN - 5

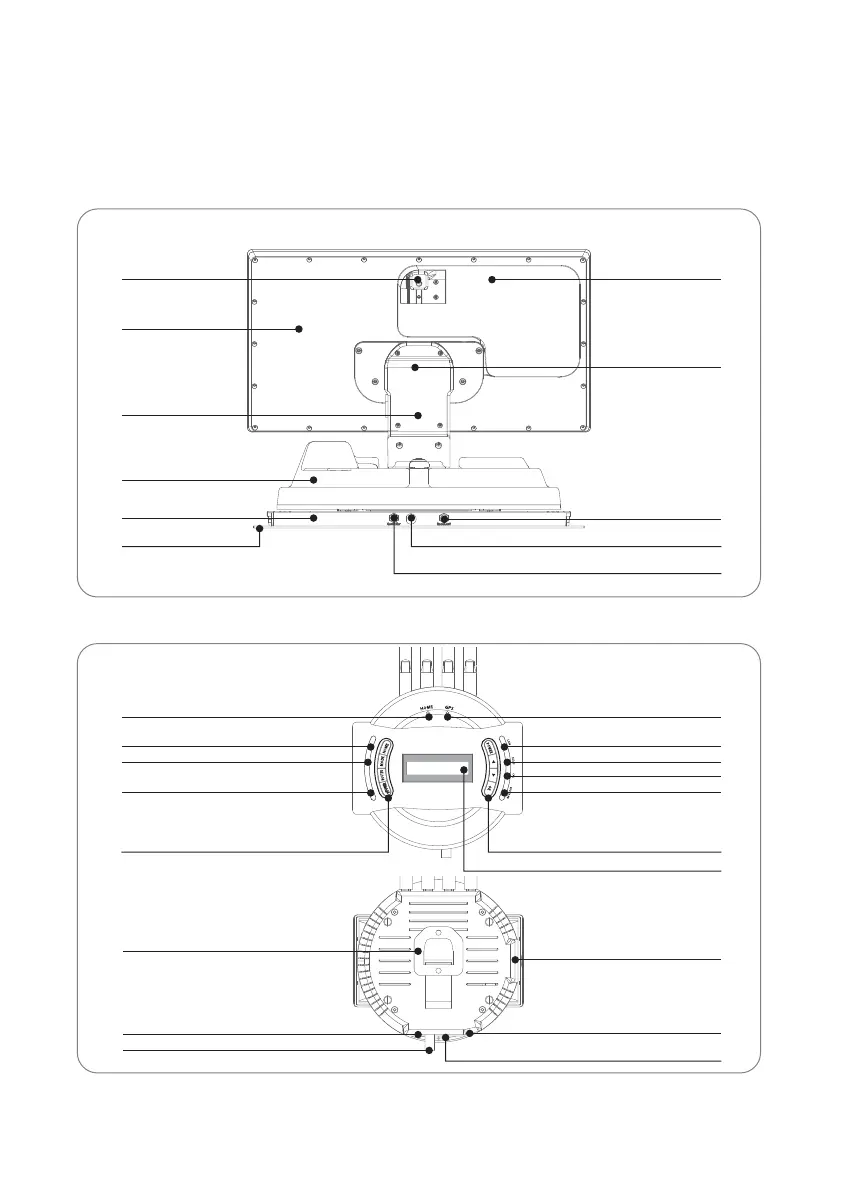

2-2. Name of parts
Haupteinheit
Verriegelung
Antenne
LNB & SAT>IP server
Controller
Ex LAN Anschluss
USB-Anschluss
SAT>IP Anschluss
POWER, Arrows, OK –Taste
LCD-Bildschirm
LAN LED
SAT>IP LED
CPU LED
ROUTER PW LED
GPS-Status LED
Neigunng/Drehung
Zum Satellitenempfanger
Zum Controller
Erhebung
Hauptkörper
Sockel
Befestigungsplatte
HOME-Statusanzeige
Kommunikations-LED
NID Check LED
Fehler LED
Halterung
Stromanschluss
HOME, MODE, SET, TUNE -Taste
Zur Haupteinheit

SELFSAT SNIPE AIR Specifications

General

Gain	33.7 dBi
Polarization	Horizontal/Vertical polarization
Elevation angle range	-15 - 90 °
Input frequency range	10.7 - 12.75 GHz
Output frequency range	950 - 2150 MHz
Product color	White
Operating temperature (T-T)	-20 - 60 °C
Quantity	1

Weight and Dimensions

Depth	192 mm
Width	515 mm
Height	355 mm
Weight	10900 g
