If a 110V model is to be fitted with an alternative mains plug the following
colour code should be noted;
BLACK WIRE - LIVE (HOT)
WHITE WIRE - NEUTRAL
GREEN WIRE - EARTH
2.2 CONNECTING PROBES
The unit can be used with Sencon probes or other types of capacitance
probe, for example, probes designed for use with STRAND (TM) gauges.
If a Sencon probe is used it will have an integral lead that can be connected
directly to the probe socket
on the side of the instrument case. The probe lead cannot be inadvertently
fitted into any of the other sockets.
If a non Sencon probe is used it will be necessary to use a probe adapter
lead, available from Sencon. This connects into the probe socket and is
terminated with a 4mm banana plug and a crocodile clip, the plug should
connect to the probe, the clip is attached to the substrate of the item under
test.

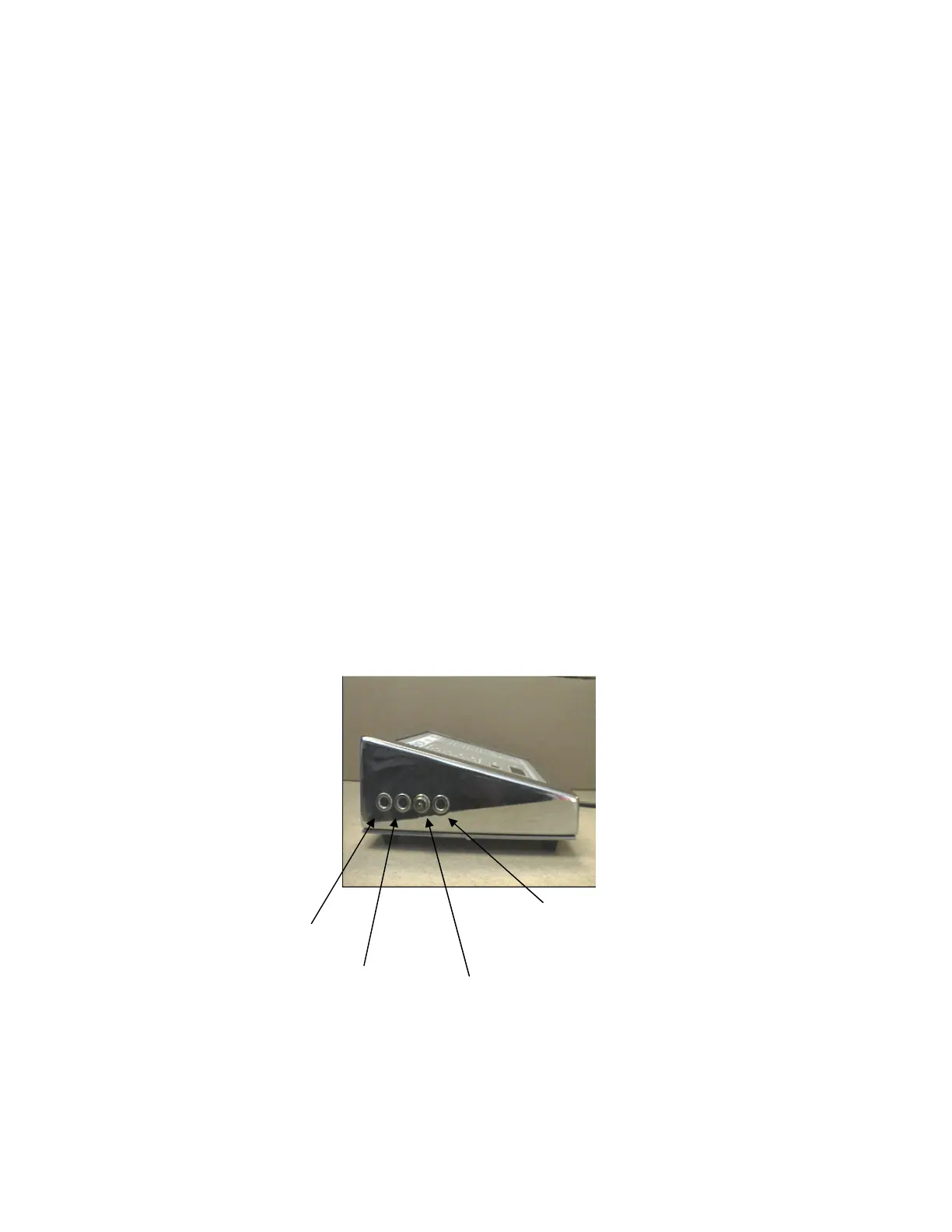

Foot switch
2 PIN
Probe
5 PIN
Computer
4 PIN
Printer
3 PIN
(covered in this view)
To Next Page
