Sencore ASM 988A - DVB-SPI Transport Stream Input Port

ASM 988A – Manual
19

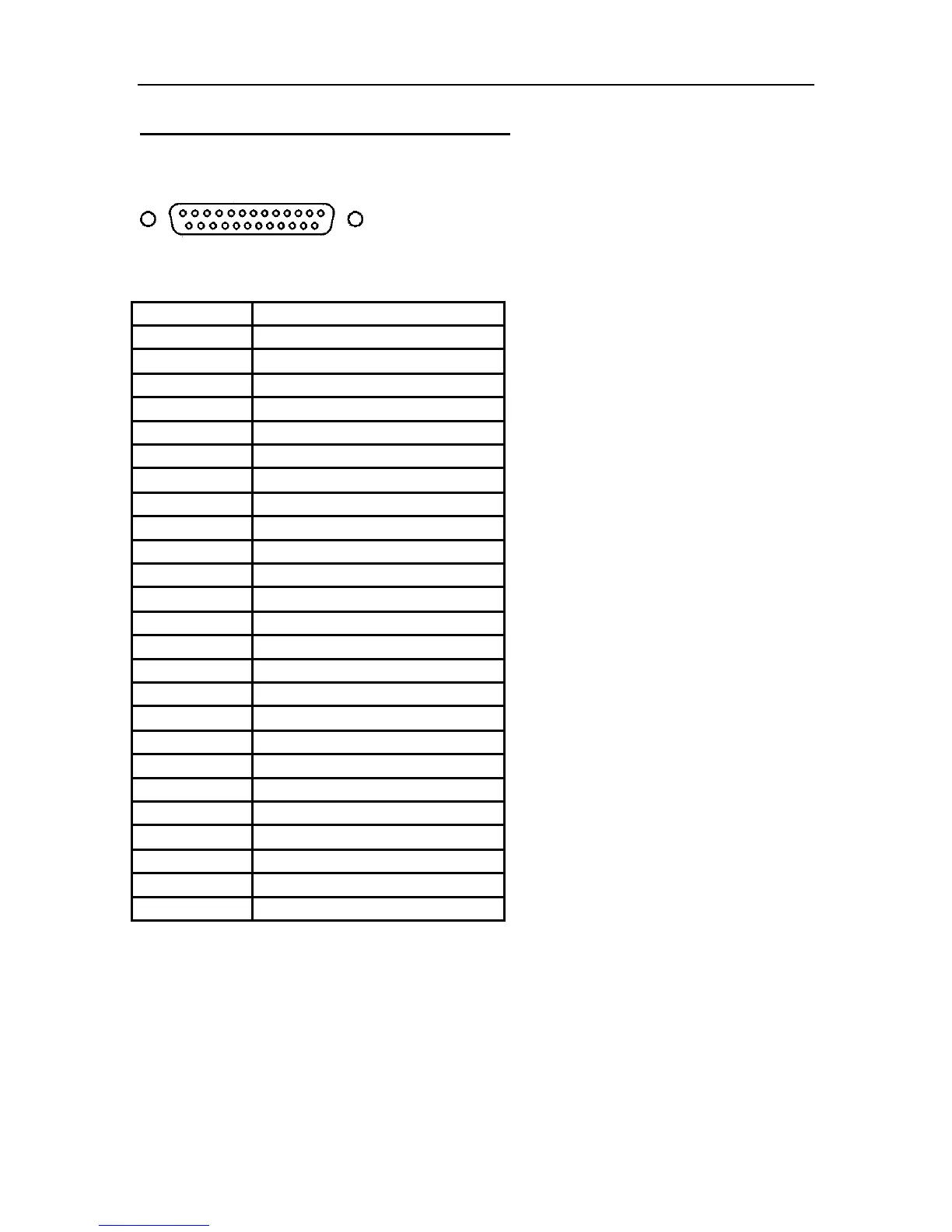

DVB-SPI Transport Stream Input Port
13 1
25 14
Pin Number Connection
1 LCLOCK
2 GROUND
3 LD7
4 LD6
5 LD5
6 LD4
7 LD3
8 LD2
9 LD1
10 LD0
11 LVALID
12 LPSYNC
13 GROUND
14 /LCLOCK
15 GROUND
16 /LD7
17 /LD6
18 /LD5
19 /LD4
20 /LD3
21 /LD2
22 /LD1
23 /LD0
24 /LVALID
25 /LPSYNC
