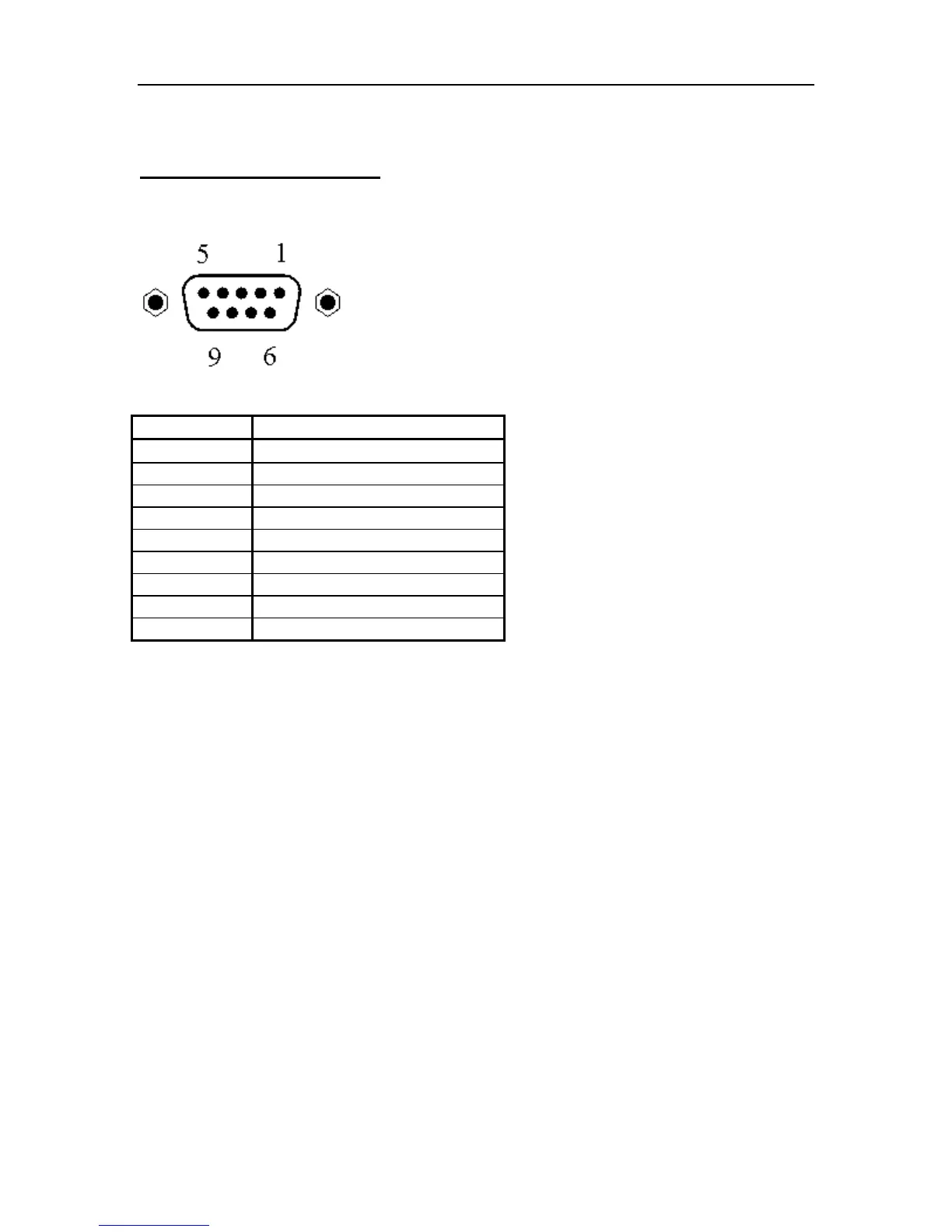

Alarm Relay Output Port
Pin Number Connection
1 Relay 2 – Normally Open
2 Relay 2 – Common
3 Relay 1 – Normally Closed
4 Relay 1 – Normally Open
5 Relay 1 – Common
6 Relay 3 – Normally Closed
7 Relay 3 – Normally Open
8 Relay 3 – Common
9 Relay 2 – Normally Closed
