4.1.8 OFDM

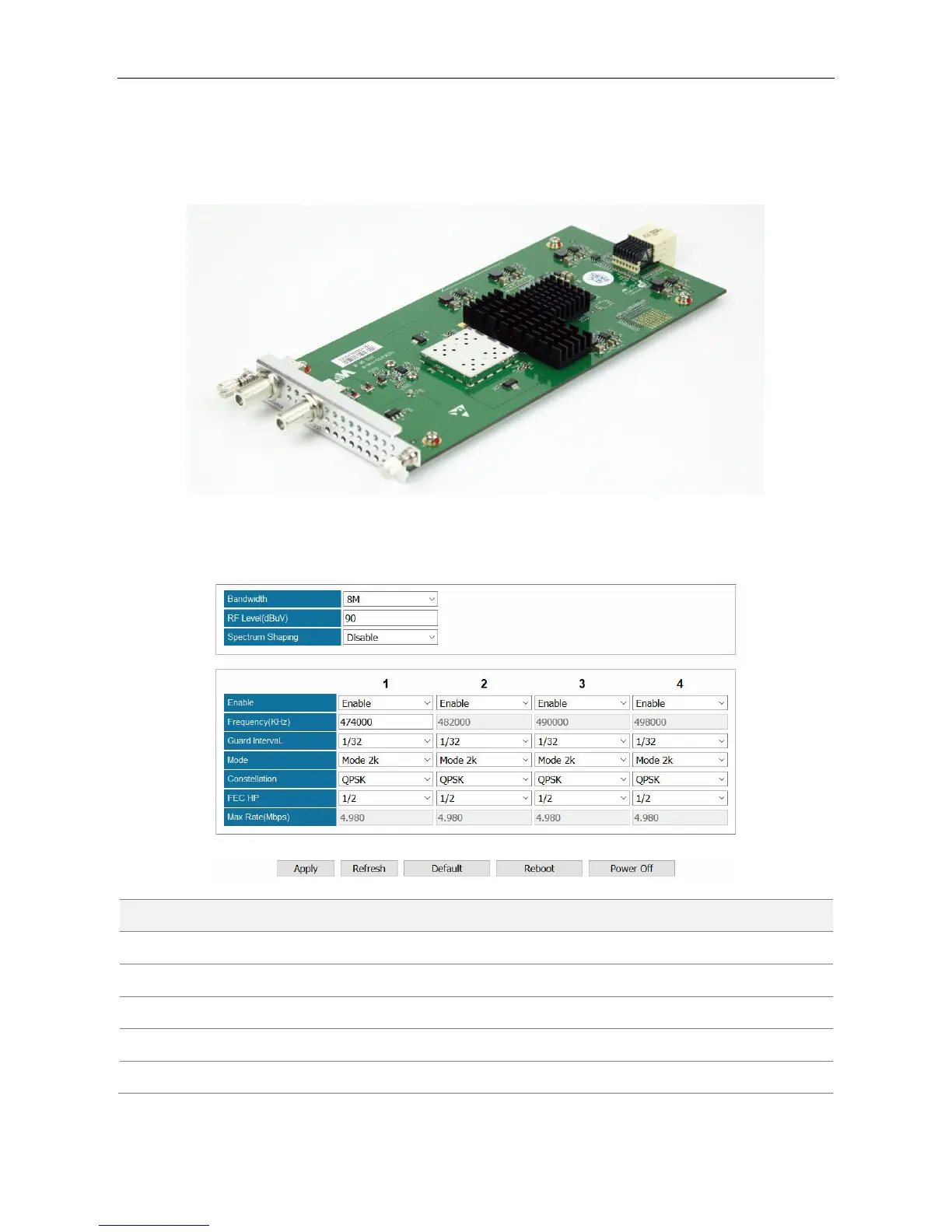

OFDM is a 4 channel modulating module. The left connector is for local monitoring.
Module Configuration > OFDM
Name
Range
Name
Range
Bandwidth
6M, 7M, 8M
Guard Interval
1/4, 1/8, 1/16, 1/32
RF Level(dBuV)
90~109
Mode
2k, 8k
Spectrum Shaping
Disable/Enable
Constellation
QPSK, QAM16/64
Enable
Disable/Enable
FEC HP
1/2, 2/3, 3/4, 5/6, 7/8
Frequency (KHz)
40000~862000
Max Rate (Mbit)
Automatically calculated
